Fujitsu D2812 - Page 7

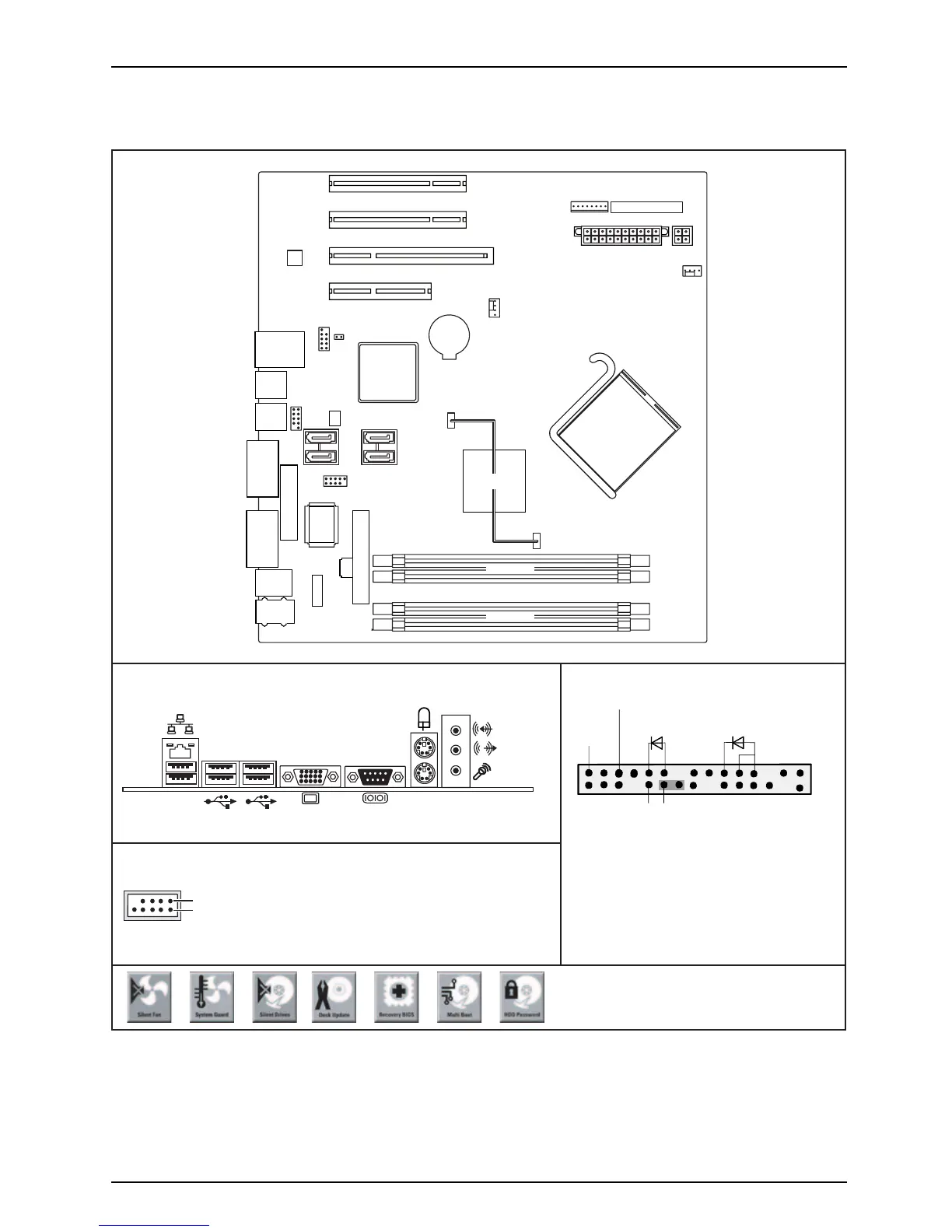

Mainboard D2811/D2812
D2812
USB 4+3
External connectors rear
USB dual channel
1
2
1 = VCC AUX
2 = VCC AUX
3 = Data negative Port X
4 = Data negative Port Y
6 = Data positive Port Y
Data positive Port X
7 =
5 =
GND
8 = GND
9 = Key
10 = Not connected
A26361-D2812-Z240-1-8N19
Front panel
1) Both connector positions possible
2) 2pin or 3pin connector possible
1
2
HD-LED
Power On/Off
Recovery
1)
Reset
Power On
LED
2)
Recovery inserted = The system starts
from floppy and allows a BIOS recovery
1
3
2
4
Channel A
Channel B
Battery
Audio
PS2
COM1
VGA
USB Port
11+12
USB Port
9+10
LAN, USB
Port 8+7
CPU
LGA775
ICH10
PCI2
PCI11
PCIe16
PCIe4
Intel-LAN
FAN1
FAN2
Power Supply 1
Frontpanel
Power Supply
FAN Control
GMCH
Audio
Frontpanel
Super
I/O
Parallel Port
SA
TA
5+4
SAT
A
1+0
Intrusion
TPM
Power Supply 2
USB 1+2
USB Port
5+6
SPDIF
Floppy
A26361-D2811-Z210-1-8N19, edition 1
