Working with the notebook

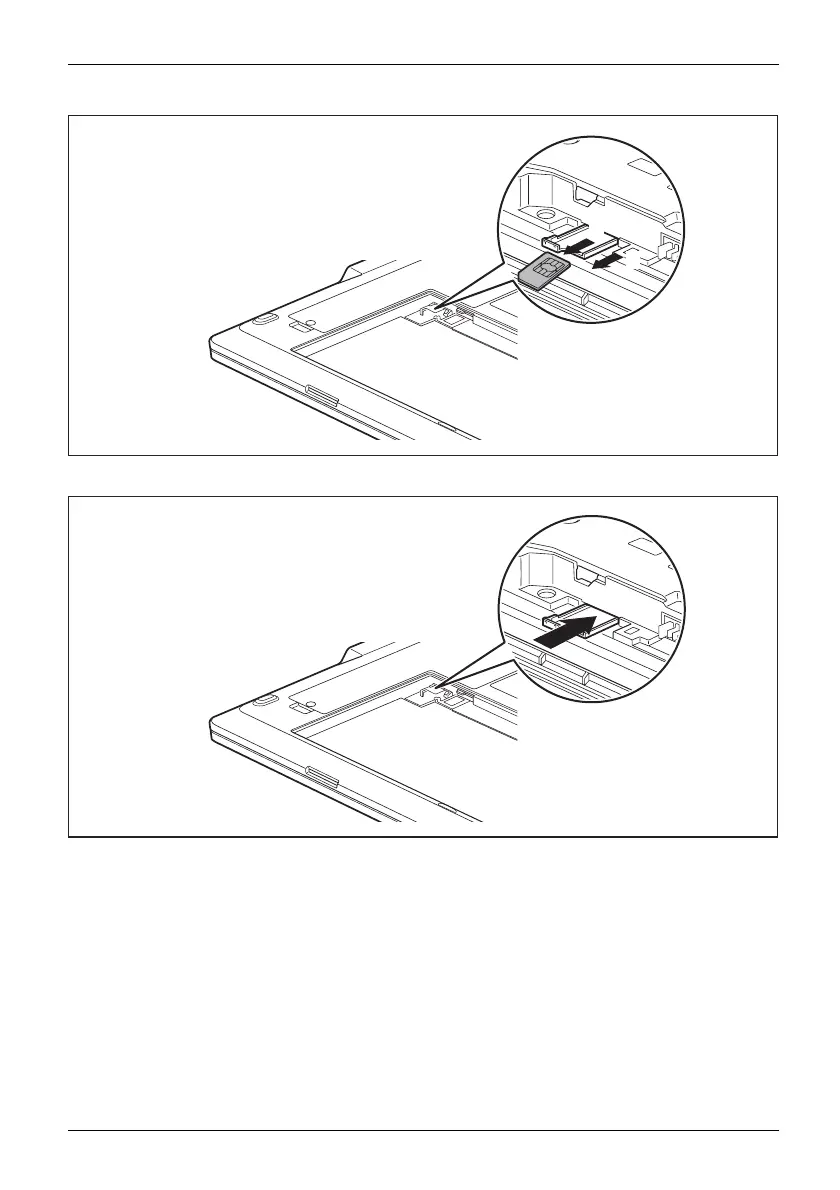

► Pull the SIM card holder out of the slot (2).

► Insert the SIM card (3) into the SIM card holder as shown in the diagram on the SIM card holder.

►Pushth

e SIM card holder back into the slot (4).

Fujitsu 47
