9.3.19.3 Status

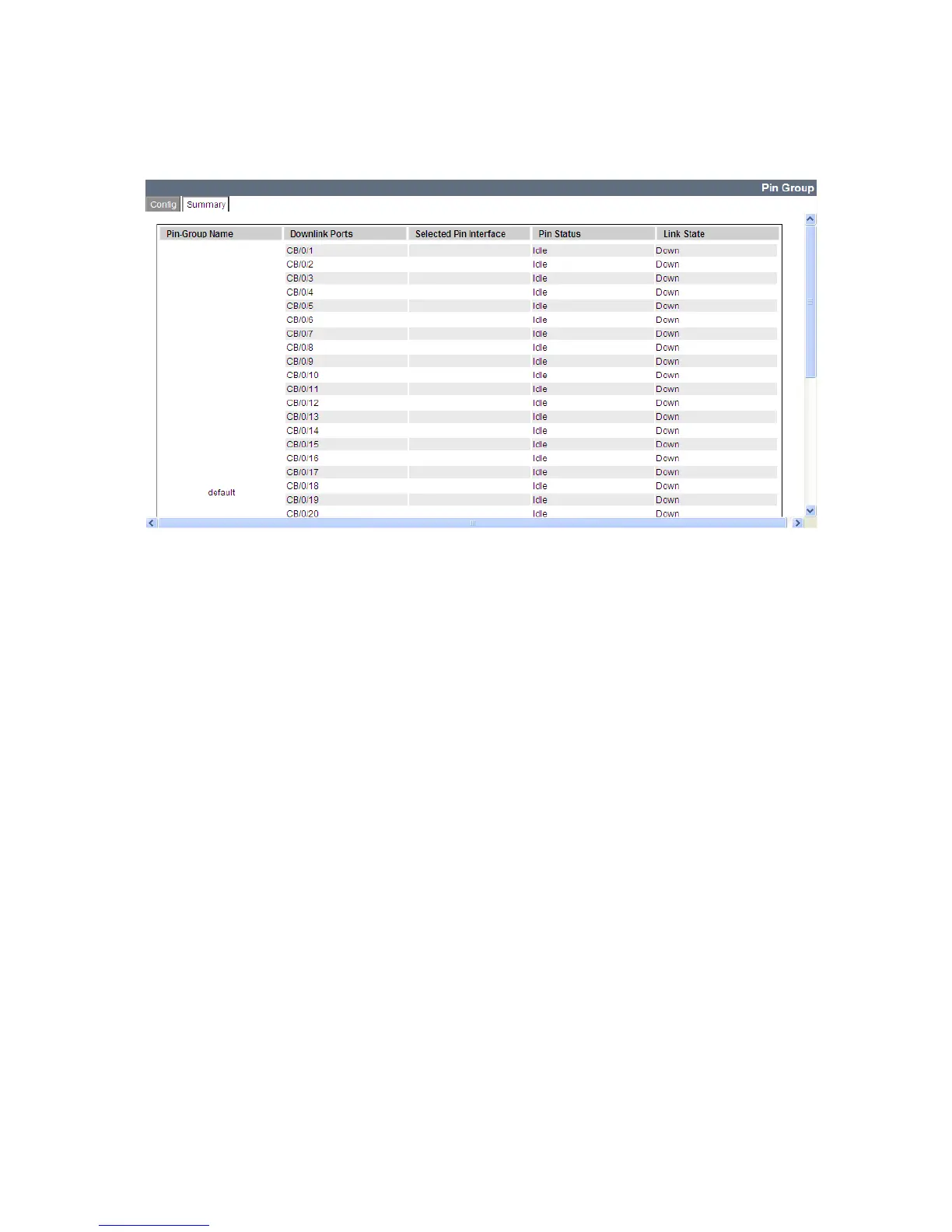

Figure : Pin Group Summary
Non-Configurable Data
Pin Group Name - Specifies the name of a pin-group.
Downlink Ports - Specifies the downlink ports of a pin-group.
Selected Pin Interface - Specifies the selected pin interface of a downlink port.
Pin Status - Specifies the pin status of a downlink port.
Link State - Specifies the link state of a downlink port.
