RX2530 M4 Upgrade and Maintenance Manual 349
14.3 Front VGA board
14.3.1 Installing the front VGA board
14.3.1.1 Preliminary steps
Ê "Shutting down the server" on page 49
Ê "Disconnecting the power cord" on page 50
Ê "Getting access to the component" on page 52
Ê "Removing the front panel module" on page 345
14.3.1.2 Removing the dummy cover

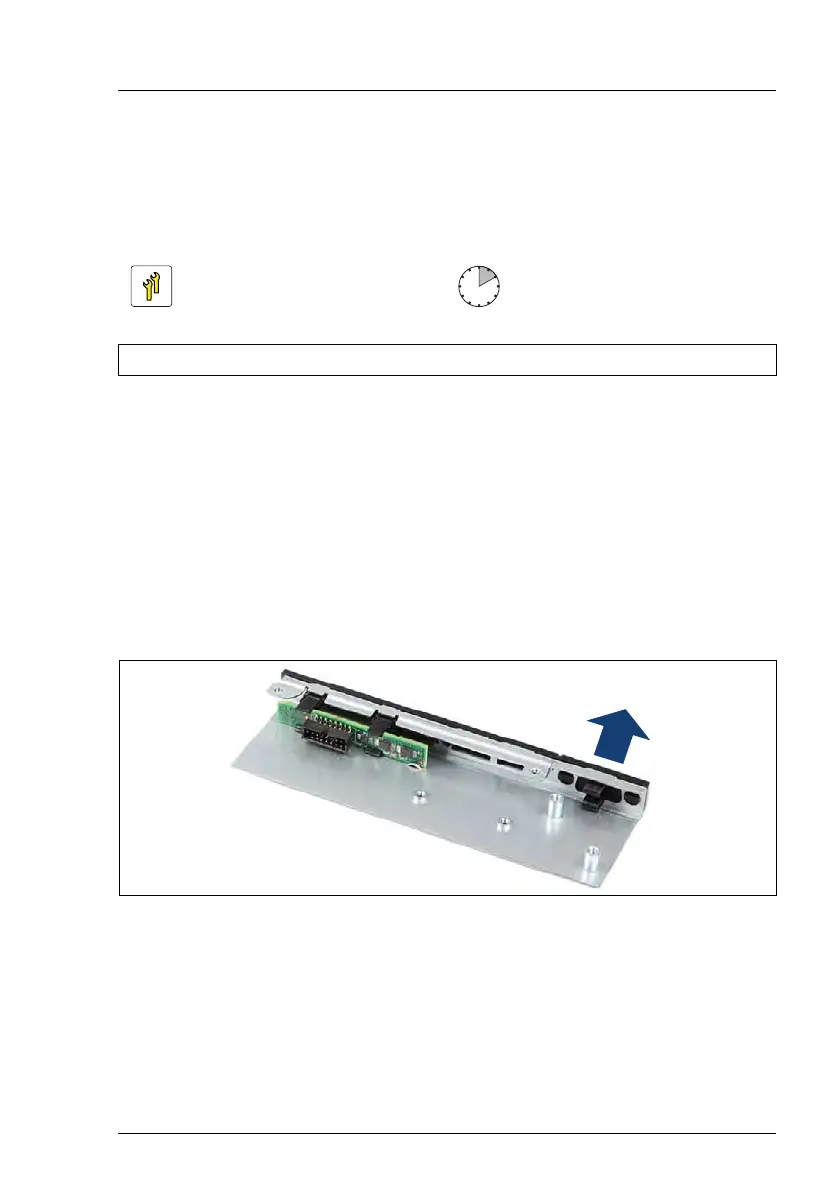

Figure 260: Removing the dummy cover
Ê Remove the dummy cover.
V CAUTION!
Keep the dummy cover for future use. If you remove the front VGA board
again and do not replace it with a new one, the dummy cover must be
reinstalled to comply with EMC regulations and to satisfy cooling
requirements and fire protection measures.
Upgrade and Repair Unit
(URU)
Hardware: 10 minutes
Tools: Phillips PH1 / (+) No. 1 screw driver
