Example: PRAID EP540e (option)

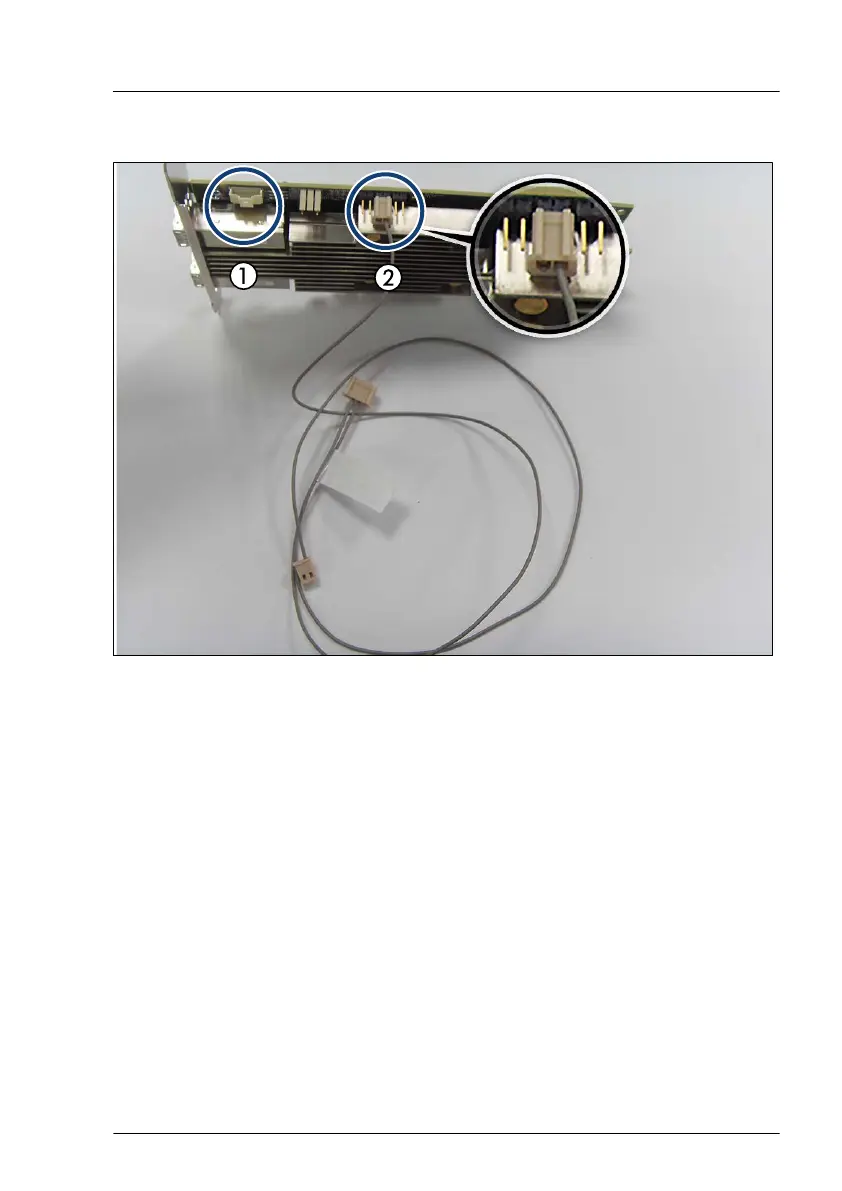

Figure 95: Connecting cables - PRAID EP540e
▶
Connect the corresponding FBU cable (1) to the PRAID EP540e.
▶
Connect the HDD LED cable (2) to the PRAID EP540e.
Expansion cards and backup units
RX4770 M5
Upgrade and Maintenance Manual
195
194
196
Table of Contents
