System board and components
Ê Carefully close the load plate over the empty processor socket.
V CAUTION!
Be careful not to touch or bend the spring contacts on the processor
socket.

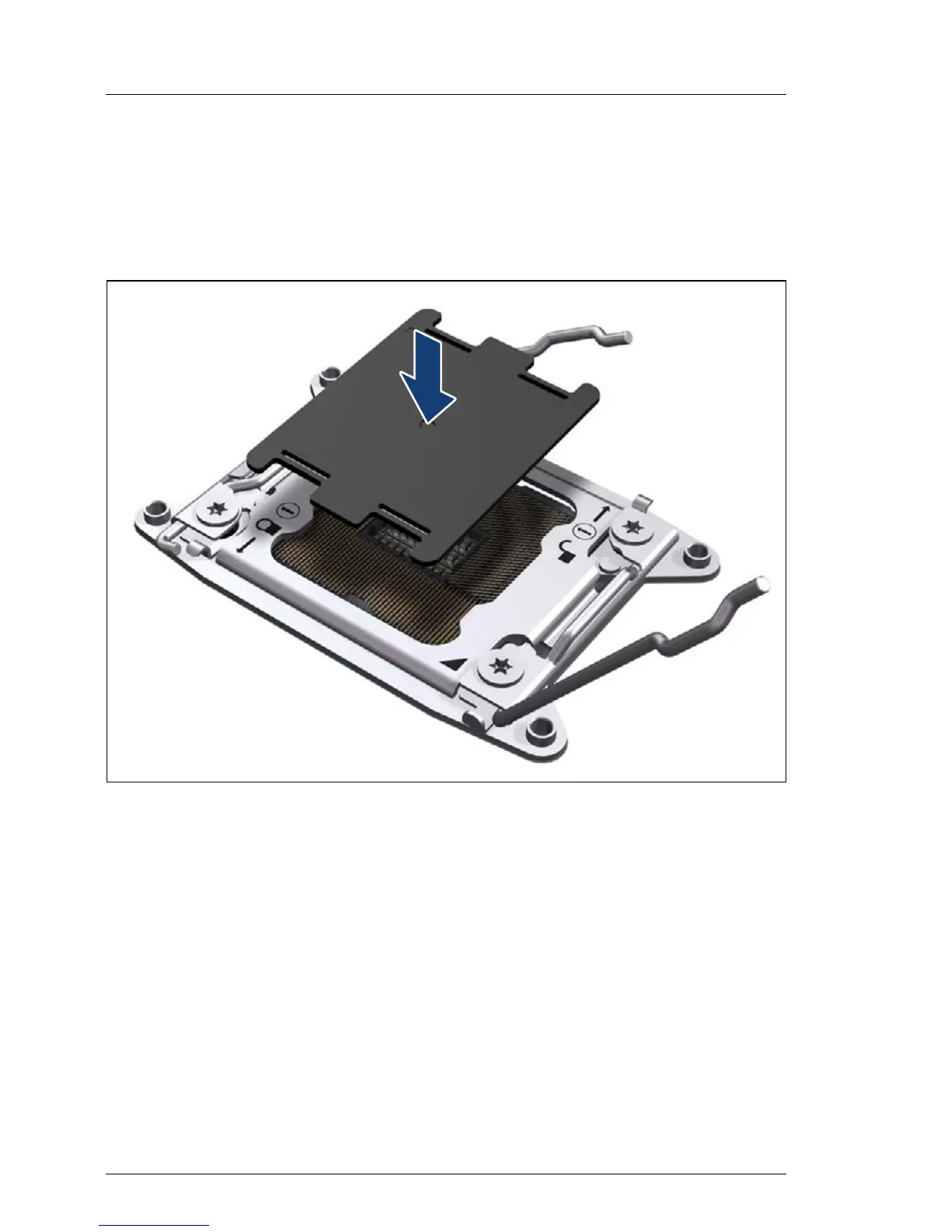

Figure 605: Attaching the protective socket cover (A)
Ê Carefully lower the protective socket cover onto the CPU socket in a vertical
motion until it snaps in place.
