Picture 2

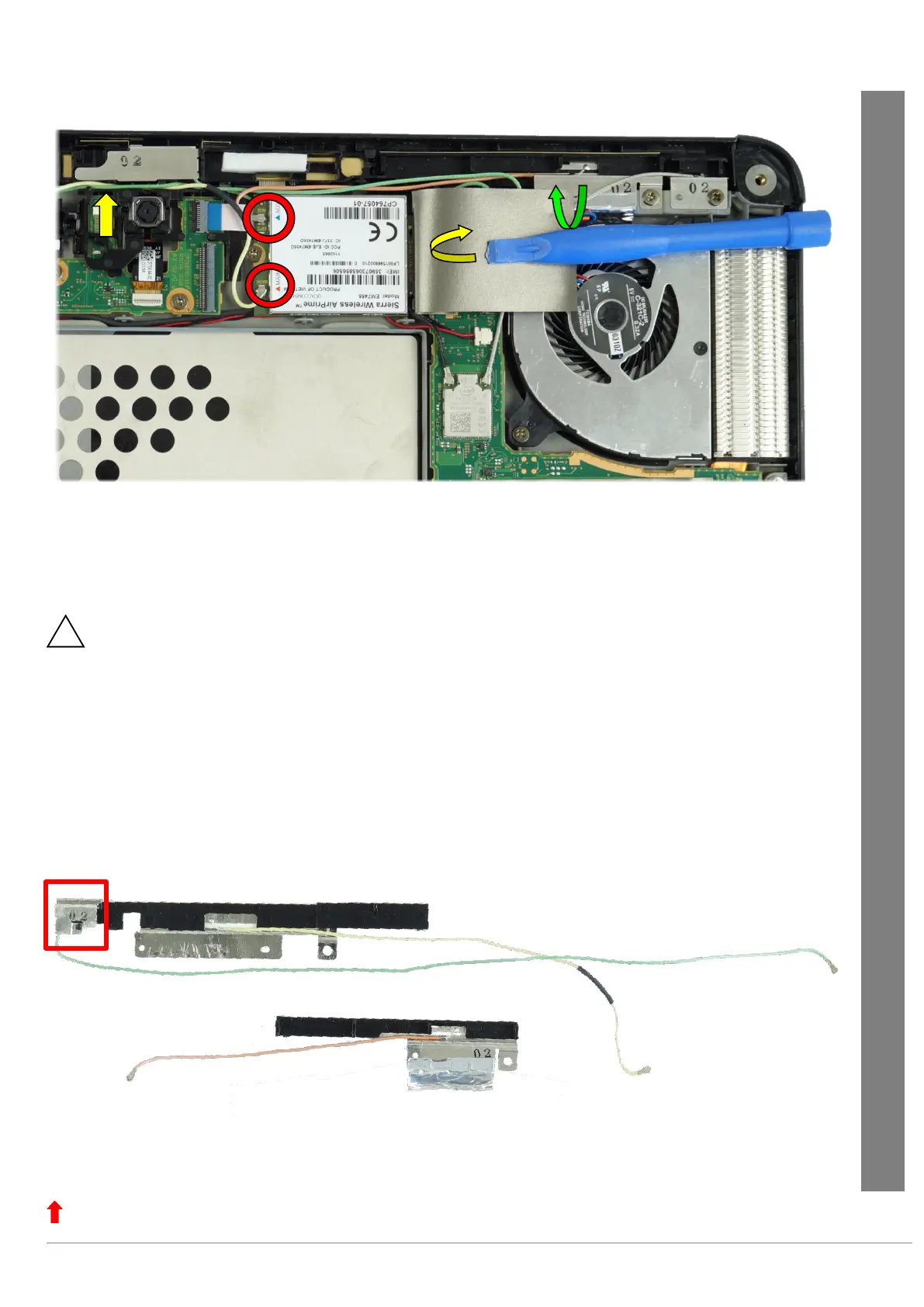

► Place the gasket in the fan direction (yellow arrow).
► Disconnect both WWAN antenna cables (red circles) from the LTE module.
► Remove both WWAN antennas from the device (green arrow).
Please note!
When fitting the LTE module, make sure that both antenna cables are properly connected.
The yellow cable must be connected to the “MAIN” port and the orange one to the “AUX” port.
(yellow -> MAIN; orange -> AUX)
Warning!
► The antenna cables are routed through a cable duct into the camera module (yellow arrow, picture 2).
► Please put the antenna cables in their original positions when reassembling.
► The third antenna shown (picture 3) is one of the two SAR antennas (red rectangle), which must be disconnected from the
WWAN antenna in case of replacement.
Picture 3
