● Put something on the floor to protect the product from damage when assemble.

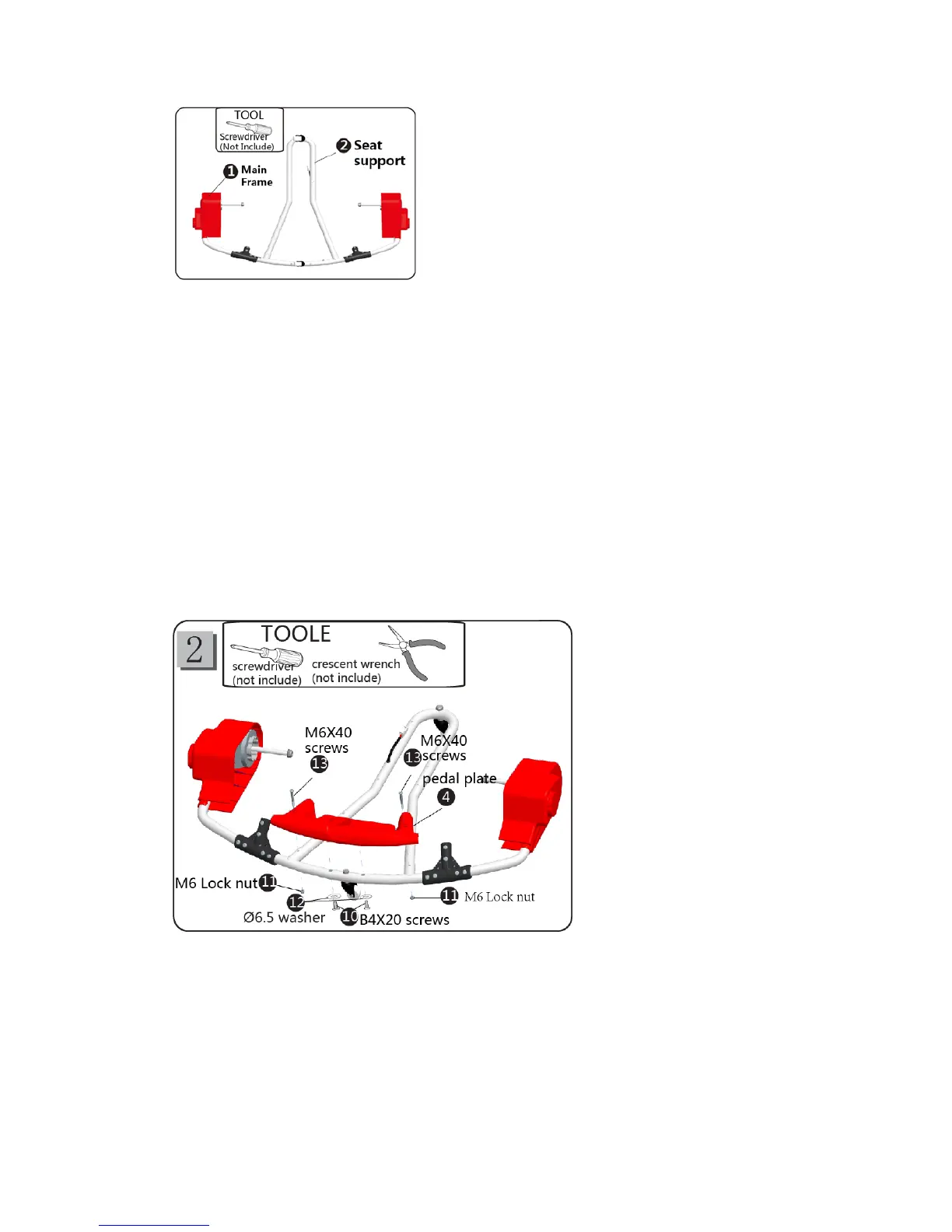

● Remove the M6X40 screws from the main frame
● Turn over the Main Frame, fit the seat support to the holes on the main frame,
push it into the holes. DO NOT push too hard, the screw holes on the seat
support should align at the screw holes on the main frame, so that the screws
can through all of the holes.
● Screws in the M6X40 screws.
ASSEMBLE THE PEDAL PLATE
● Remove all the screws, washers and lock nuts on the pedal plate
● Fit the pedal plate on the main frame, screws in the M6X40 screws, put on the
washers and lock nuts, then tighten them
● Turn over the main frame, put on the washers and screws in the B4X20 screws.
