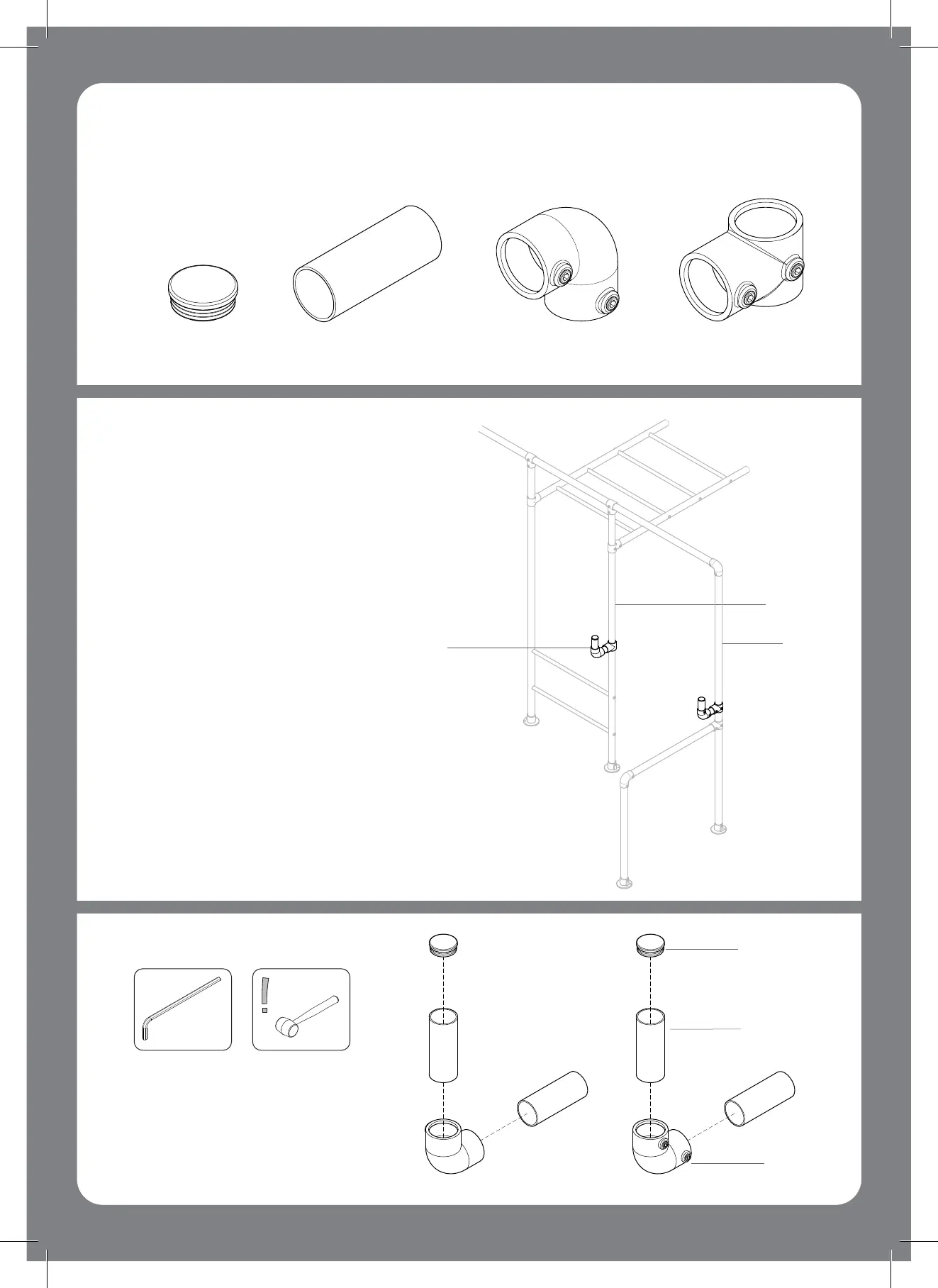

FUNKY MONKEY BARS Roman Rings - WEIGHT BAR HOLDERS ASSEMBLY INSTRUCTIONS; Assemble Weight Bar Holders

2x
Elbow
D-125
3
ASSEMBLE WEIGHT BAR HOLDERS
1. Tap plastic end caps into 2x 120mm tubes.
2. Insert all tubes into elbows and tighten
grub screws.
2x
Plastic End Cap
50Dia. x 120mm
4x
Wieght Tube
2x
Elbow
D-125
2x
Short Tee
D-101
50Dia. x 120mm
4x
Band Tube
FITTINGS, HARDWARE & TUBES
2x
Plastic End Cap
The weight bar holders can be placed
anywhere there are two vertical tubes
that have a space less than 120mm.
This could be between two adjustable legs
or an adjustable leg and a swing leg.
Take into account if you are adding to
an already assembled frame- fittings will
need to be removed for installation.
ASSEMBLY INSTRUCTIONS - WEIGHT BAR HOLDERS
1
CHECK INVENTORY - (not to scale)
Check that you have the following
items before assembling your
Funky Monkey Bars® Weight Bar Holders.
Page 21
Adjustable
Leg
SELECT DESIRED LOCATION OF WEIGHT BAR HOLDERS
2
Swing
Leg
Selected location of
weight bar holders
