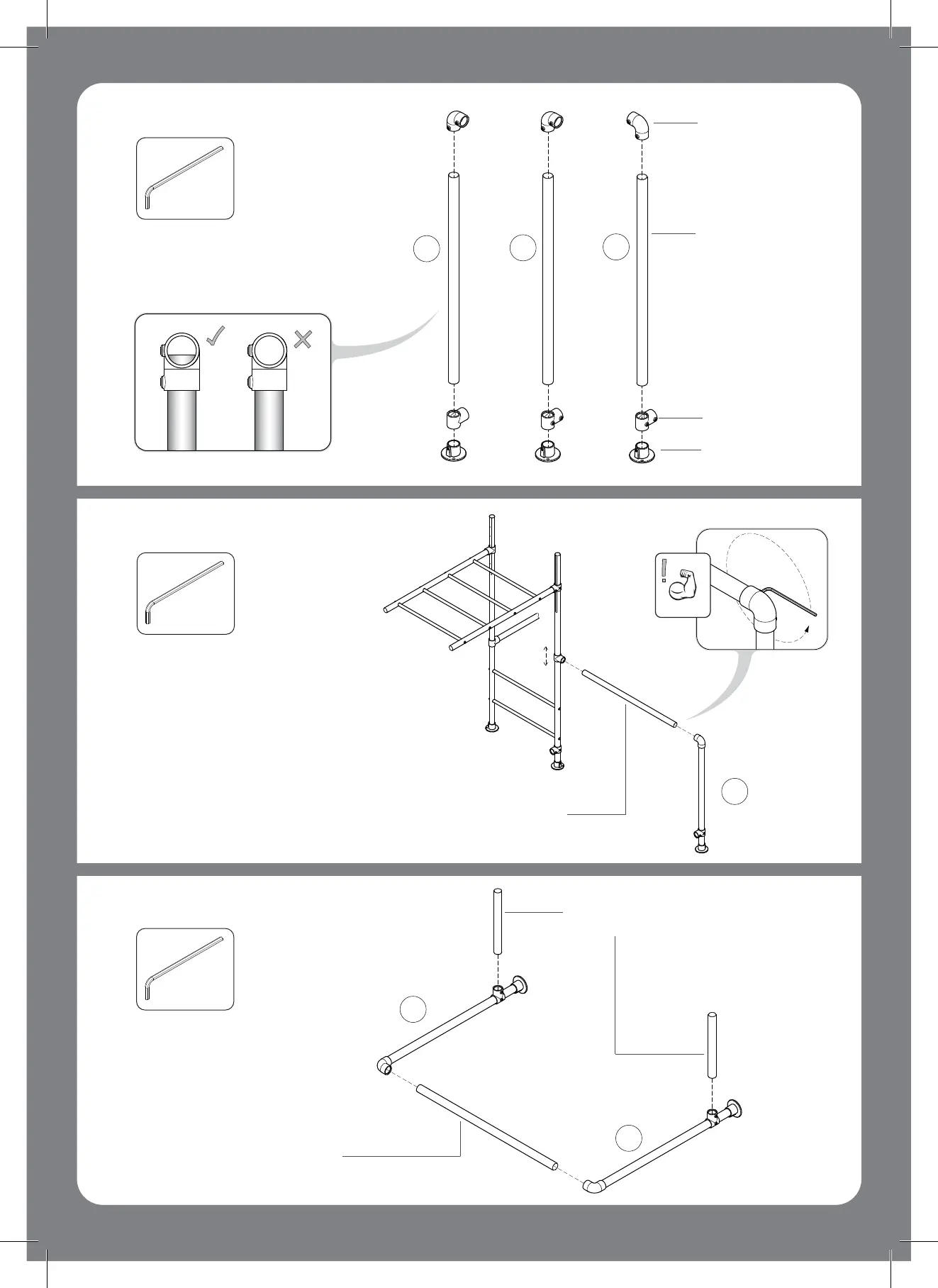

FUNKY MONKEY BARS Roman Rings - Assemble Dip Station Legs; Attach Dip Station Leg and Dip Bar; Assemble Other Dip Station Side

On flat level ground insert
brace and black dip tubes
into dip station legs 2&3.
Firmly tighten all grub screws.
8
ASSEMBLE OTHER DIP STATION SIDE
3
2
2x Brace Tube
50Dia x 450mm
1x Dip Horizontal Tube
50Dia x 1085mm - Black
Page 32
3x Short Tee D-101
3x Elbow D-125
1
2
3
ASSEMBLE DIP STATION LEGS
6
1. Fit short tees at same height as leg
short tee (C) in step 5.
2. Fully insert elbows and base plates,
then fully tighten all grub screws.
Insert dip vertical tube (silver) fully into elbow.
3x Base Plate D-131
3x Dip Vertical Tube
50Dia x 1085mm - Silver
1
1. Adjust height of short tee
on leg & insert dip tube.
2. Attach dip station leg.
3. Check it is level and square.
Fully tighten all grub screws.
7
ATTACH DIP STATION LEG 1 & DIP BAR
1x Dip Horizontal Tube
50Dia x 1085mm - Black
+ 360
o
Dip station leg
from step 6.
