2.2 Data Signal Port

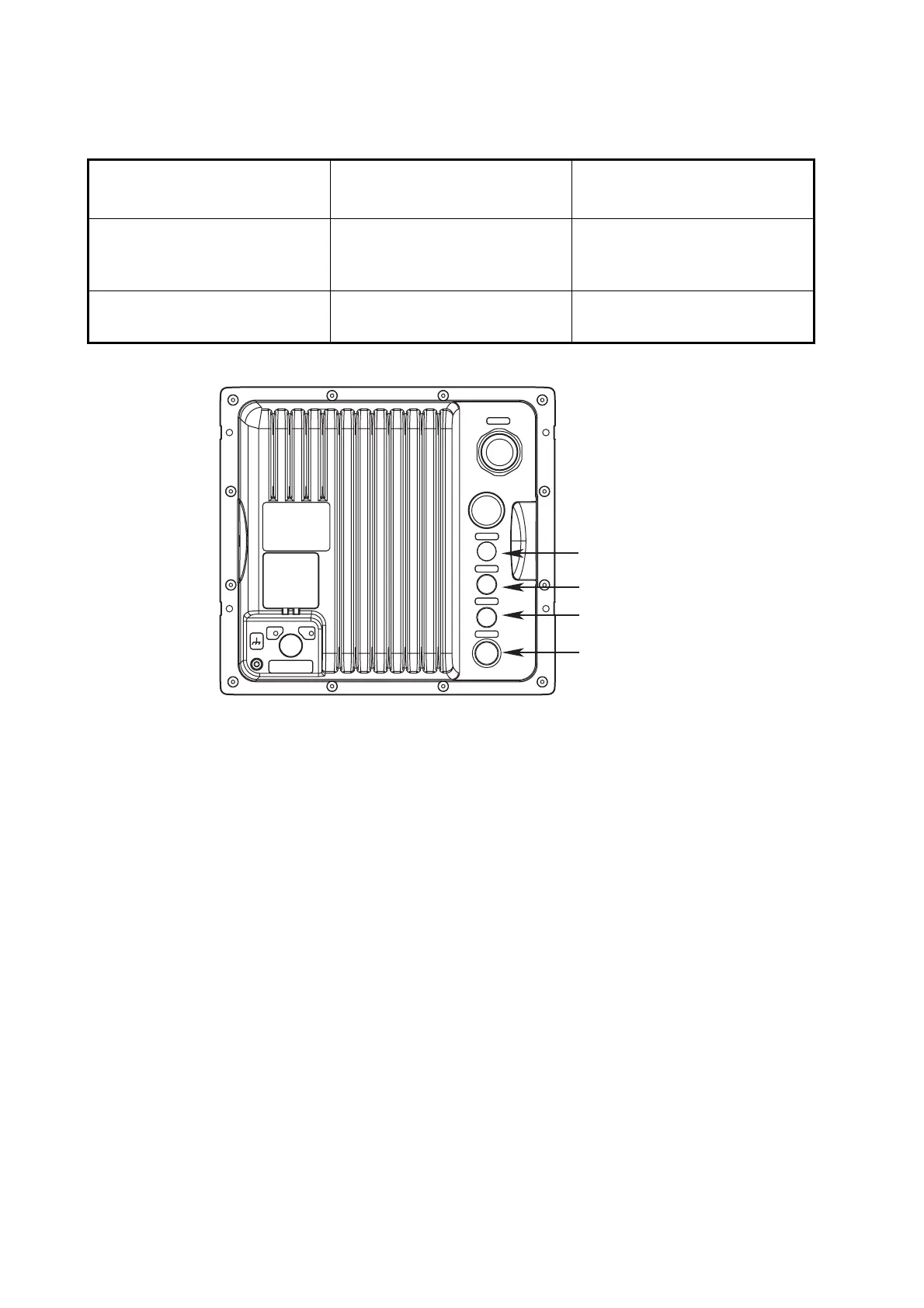

Connect external equipment(s) to the ports on the rear panel as shown below.
The Model 1835/1935/1945 can receive the following NMEA 0183 format sentence from other
equipment.
• Position GNS>GGA>RMC> GLL
• Course true VTG>RMC
• Course magnetic VTG>RMC (true)
• Speed over ground VTG>RMC
• Speed related to water VHW
• Distance to waypoint BWR>BWC>RMB
• Destination waypoint, true BWR>BWC>RMB
• Destination waypoint, magnetic BWR>BWC
• Heading (true) HDT>VHW (true)>HDG>HDM>VHW (magnetic)
• Heading (magnetic) HDG> HDM>VHW (magnetic)>HDT> VHW (true)
• Magnetic variation HDG>RMC
• Cross-track error XTE>RMB
• Depth DPT>DBT
• Temperature MTW
• Wind (true) MWV>VWT
• Wind (relative) MWV>VWR
• Time: ZDA
NMEA1 (7P), NMEA2 (7P)
(NMEA in / out)
HDG (6P) OPTION (10P)
GPS sensor, AIS
GPS navigator, echo sounder,
etc.
Heading sensor
(Example AD-100, SC-50, SC-
110)
External buzzer
Remote display
Necessary cable
MJ-A7SPF0007-050C
Necessary cable
MJ-A6SPF0007-100C
Necessary cable
See section 4.2.
NMEA2 port
OPTION port
NMEA1
NMEA2
HDG
OPTION
12-24 VDC/ 8.0-3.8A
3 GND
1 + 2 -
USB
HDG port
NMEA1 port
DJ-1
