• Introduction
System Configuration
ECDIS processor displays electronic seachart and operates as user interface.
ECDIS processor is connected to various sensors, does navigation calculations and route monitoring. Connections to
interfaces are typically made with serial communication lines.
ECDIS processor can be used for both route planning and route monitoring. If required, there can be an additional
identical ECDIS processor which is used for route planning. ECDIS processors are connected together with Local
Area Network of ETHERNET type.

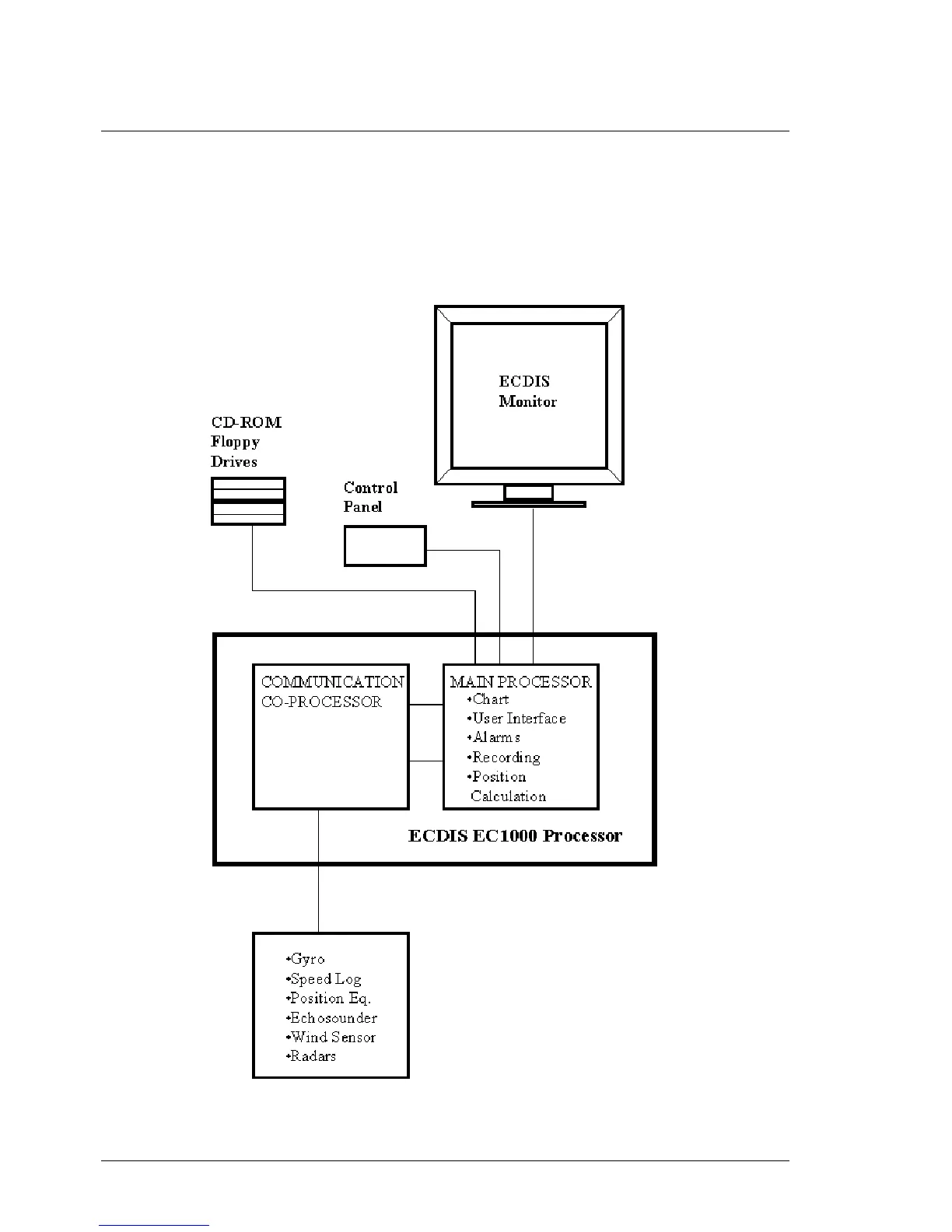

FIG 1.1. Configuration of ECDIS EC 1000.
