1.8.5 Alert Definition setting for each equipment
You can create alert definitions and activate/deactivate the alert(s) for each external
equipment or sensor.
1. Access the [Common Installation Setting] menu, then select [Alert Define List] on
the tab bar.
2. Select the appropriate equipment type on the menu bar. For example, select [EC-
DIS] o [FMD-3100] to set the alert definitions for FMD-3100.
Note: The equipment and sensors shown on the menu bar depend on the [Instal-
lation Parameters] menu settings.

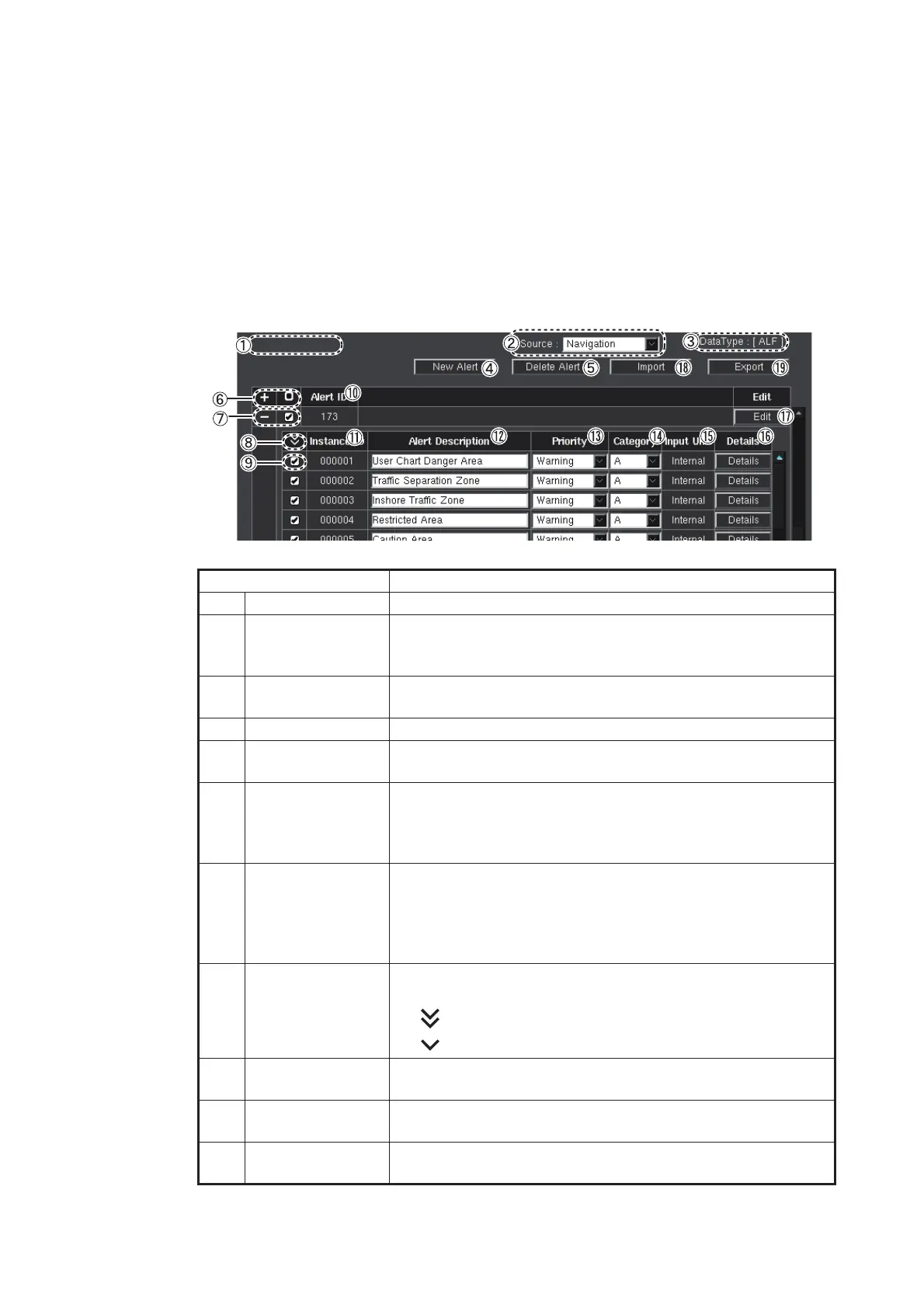

3. Set the appropriate options referring to the table shown below.
Item Remarks
1 Equipment type Selected equipment type.
2 [Source] Define the source category to which the alert is assigned for
display in the AMS mode's alert list window ([Navigation],
[Communication] or [External]).
3 [Data Type] Alert sentence format (ALF or ALR). For sensors, select the
alert notification sentence from the pull-down list.
4 [New Alert] button Add a new alert definition. See section 1.8.6.
5 [Delete Alert] but-
ton
Delete the alert definition. See section 1.8.5.
6 Alert extension
button/
All selection
checkbox
• [+]/[–]: Click to open/close all alerts ([+]: Open, [-]: Close).
This appears when the alert notification sentence is ALF.
• Check the checkbox to select all alert instances. This ap-
pears when the alert notification sentence is ALF.
7 Separate change
button
• [+]/[–]: Click to open/close the detail window for the alert
([+]: Open, [-]: Close).
• Check the checkbox to select the alert, and all instances
are selected for ALF sentence. This only appears when
the alert notification sentence is ALF.
8 Switching check-
box (for alert in-
stance)
Show all instances or show only valid state instances. This
only appears when the alert notification sentence is ALF.
• [ ]: Show the data for all instances.
• [ ]: Show the data for activated instances.
9 Checkbox to acti-
vate/deactivate
Check the checkbox to activate the alert.
10 [Alert No.] (ALR)
[Alert ID] (ALF)
Alert number
11 [Instance ID] Instance number. This appears when the alert notification
sentence is ALF.
