1-2
Console mounting
Mounting considerations
In addition to the general mounting considerations mentioned on the previous page, keep the
following points in mind when selecting a mounting location:
• Select a place where the LCD can be easily viewed, keeping in mind the LCD viewing angle
is as shown in Figure 1-2.
• Leave sufficient space around the unit to permit dispersal of heat after a long transmission.
How to mount the transceiver unit in a console
This method does not require any additional kit. However, the dimensions of the cutout must be
accurate since the hanger also is installed. Prepare a cutout in the mounting location whose
dimensions are as shown in Figure 1-2.
112
103
37.5
40°
10°
99
LCD Viewing
Angle
90

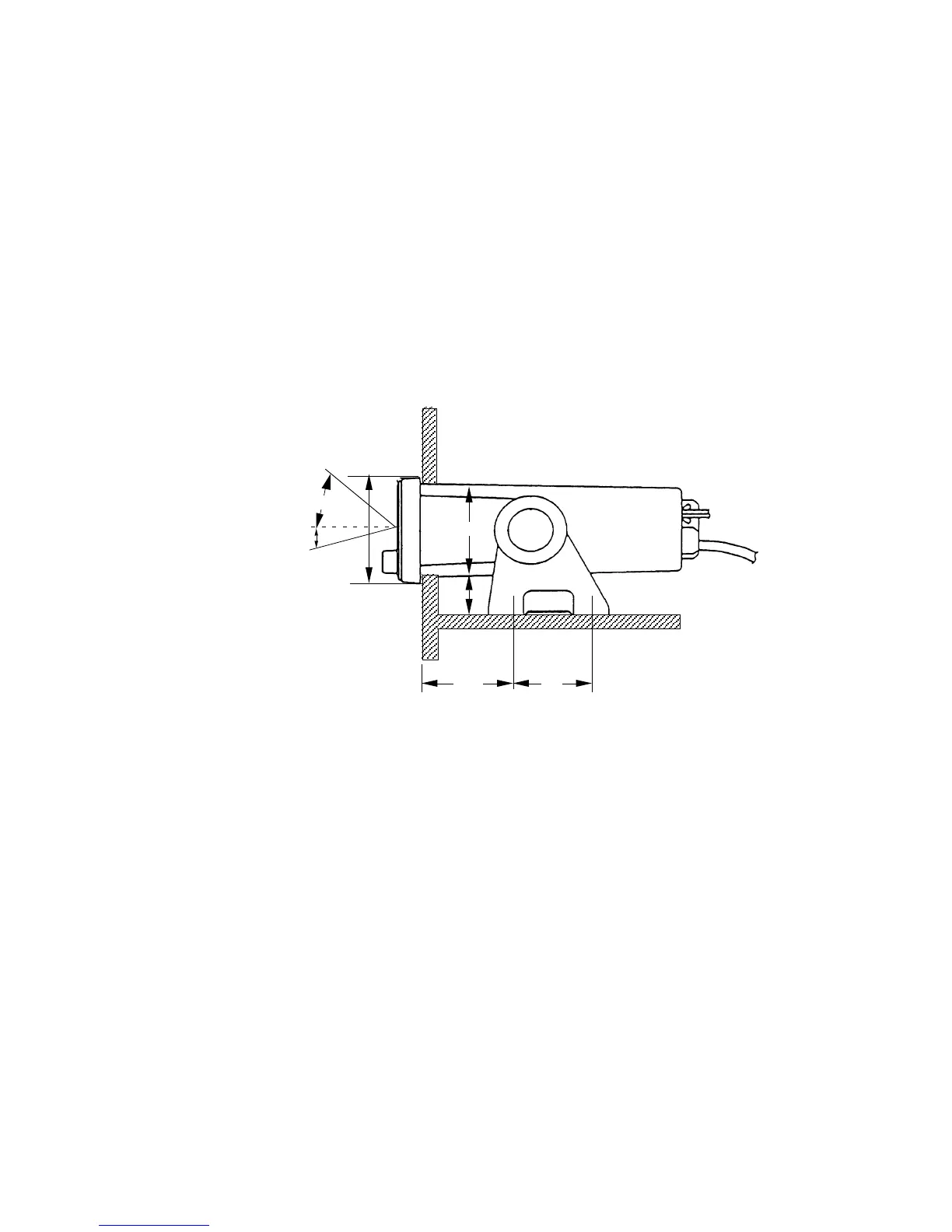

Figure 1-2 Mounting dimensions for console mounting
