Furuno IF-NMEA2K2 User Manual

4

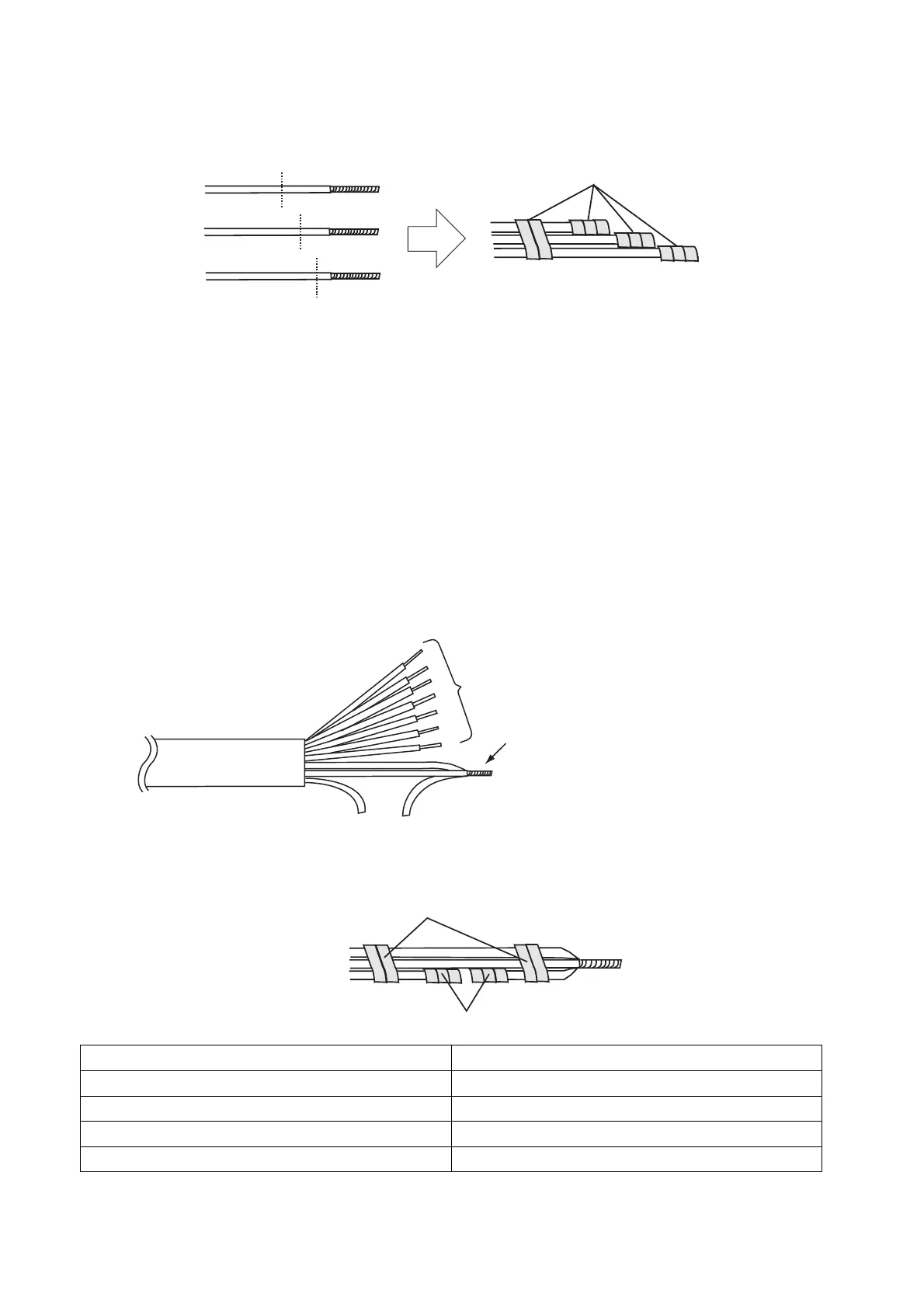

After the connection, cut the unused cable cores and wind vinyl tape around
the each edge of the wires and fix them so that they do not touch other signal
cores or ground.



Vinyl tape
Conversion Mode
PORT1 (ORG), PORT2 (PPL), GND (BLK) signal cores of the NMEA0183
cables are short-circuited (default). By cutting the specified signal core, the
conversion mode can be changed. Select the conversion mode according to
the baud rate of the connected device. For connection to an AIS device, select
the AIS mode.
Note1: Check the applicable checkbox on the nameplate according to the
conversion mode selected.
Note2: Wind vinyl tape around unused cores and fix the cores so that they do
not touch other signal cores or ground.
Note3: Turn off the unit before cutting the signal cores.
NMEA0183 cable
PORT1 (ORG), PORT2 (PPL), GND
(BLK) signal cores of the NMEA0183
cable are short-circuited (default).
NMEA0183 or PC, etc. connection cores

Cut the PORT1 (ORG) or PORT2 (PPL) signal core.
Wind vinyl tape around cores to insulate them.
Bind signal cores with vinyl tape.
Action Conversion Mode / Baud Rate
No action Normal / 4800b
p
s
(
default settin
g)
Cut the PORT1
(
ORG
)
Hi
g
h S
p
eed / 38400b
p
s
Cut the PORT2
(
PPL
)
A
IS / 38400b
p
s
Cut PORT1
(
ORG
)
and PORT2
(
PPL
)
Zeus*/4800bbs
*: In the Zeus mode, the unit outputs RMB sentence when CAN bus “129283”
and “129284” is input.
