Your FUSION COMMERCIAL oven is a professional restaurant quality oven
designed to fit on a countertop in your kitchen, office, bar or recreation room.
With the oven’s dual baking elements, you will be able to bake most frozen
pizza, single serve entree snack foods, and appetizers in 15 minutes or less.
No preheating is required. Actual baking times could vary from each product’s
recommendations, so check food often to avoid over-baking.
Construction
Your FUSION COMMERCIAL oven outer case and food rack cover are made
of 22 gauge brushed 430 stainless steel. The inner case and internal case
parts are made from aluminized steel to protect against corrosion.
Power Capacity
Your FUSION COMMERCIAL oven operates on 120 volts, draws 12.2 amps
and processes 1450 watts of power. For best results, operate your pizza
oven on an individual outlet or circuit branch.
Parts
Model #507FC FUSION COMMERCIAL 12" Pizza Oven includes the following
pieces:
Model # Description QTY
PN# PO-507 Pizza Oven 1
PN# CT-501 - 1923483 Crumb Tray 1
PN# SS-501 - 1923487 Small Screw 1
PN# BN-501- 1923488 Black Knob 1
PN# FR-501 - 1923489 Food Rack 1
PN# FRC-501-1923490 Food Rack Cover 1
PN# HA-508 - 1923248 Handle Assembly 1
PN# LS-501 - 1923454 Large Bolt 1
PN# LTN-501-1923455 Large Thumb Nut 1
PN# CB-501 - 1922491 Cleaning Brush 1
Handle Assembly
Included with your oven is a parts bag containing an ergonomically
designed cool-touch handle, large bolt and large thumb nut. Follow the
steps listed below to assemble the handle to the food rack and food rack
cover.
Step 1: Remove food rack cover PN# FRC-501 and food rack
PN# FR-501 from the oven.
Step 2: Lay food rack on a stable counter top with loop facing
up and slightly over the edge of the counter.
Step 3: Slip the slot on the front of the food rack cover over the loop so
the food rack cover rests flat against the food rack.
Step 4: Take handle assembly PN# HA-508 and rotate the handle and
bracket so they lie flat. Lay the bracket slot over the food rack
loop on top of the food rack cover as shown (Figure 1).
Step 5: Rotate handle and food rack
cover towards you together as a
single unit (Figure 2).
Step 6: Using attaching hardware found
in the parts bag, take one large
bolt PN# LS-501 and one large
thumb nut PN# LTN-501. Slide
large bolt through the round
hole, capturing the loop, handle
bracket and the food rack cover.
Thread the nut onto the large
bolt from the opposite of the
food rack and tighten (Figure 3).
Step 7: Rotate the assembled handle
down and slide the completed food rack back into its original
position in the oven.
Warning:
Improper assembly of the handle to the food rack could cause the food rack
to rotate and fall when food is removed from the oven. Do not attempt to
grab HOT foods with bare hands when removing food from the oven.

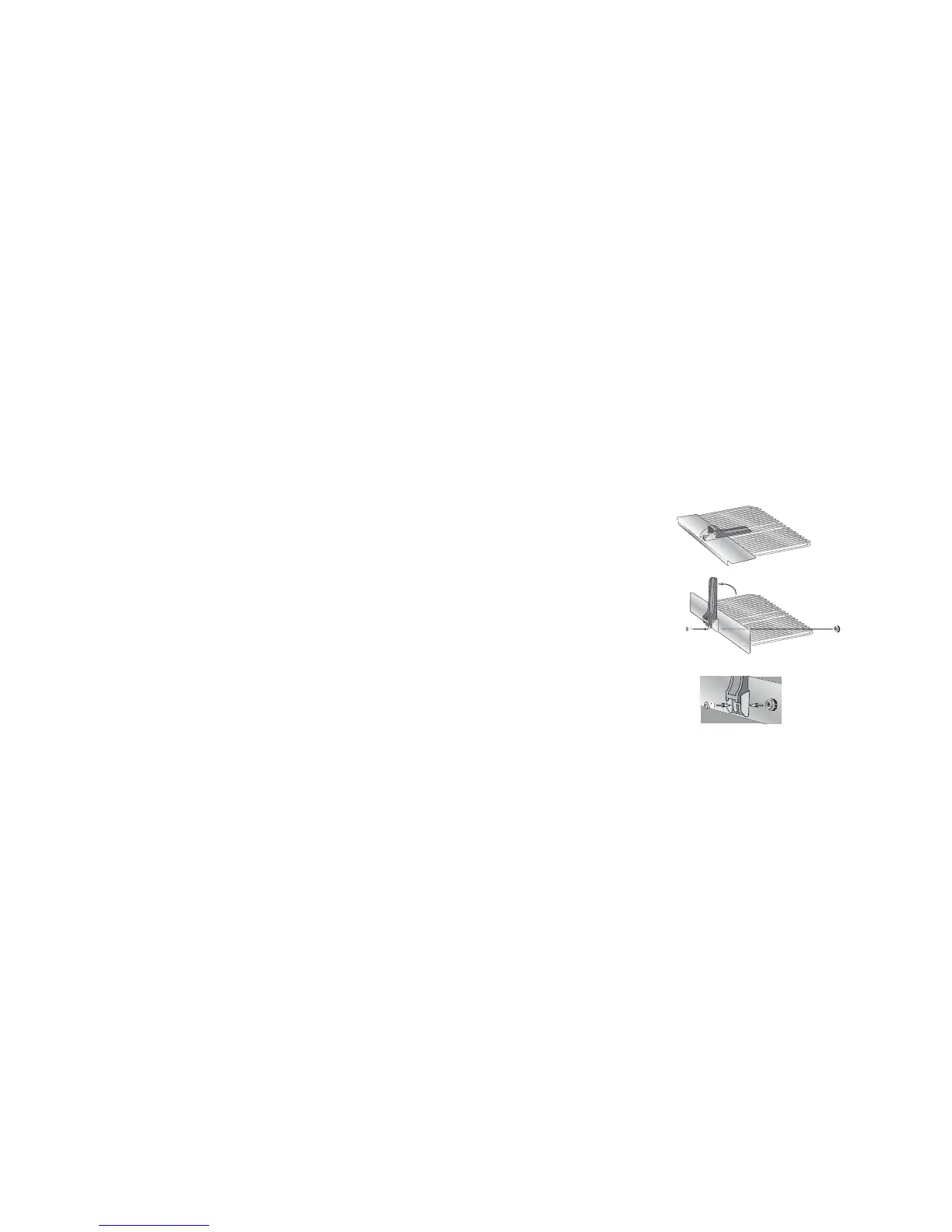

Figure 1.
Figure 2.
Figure 3.
