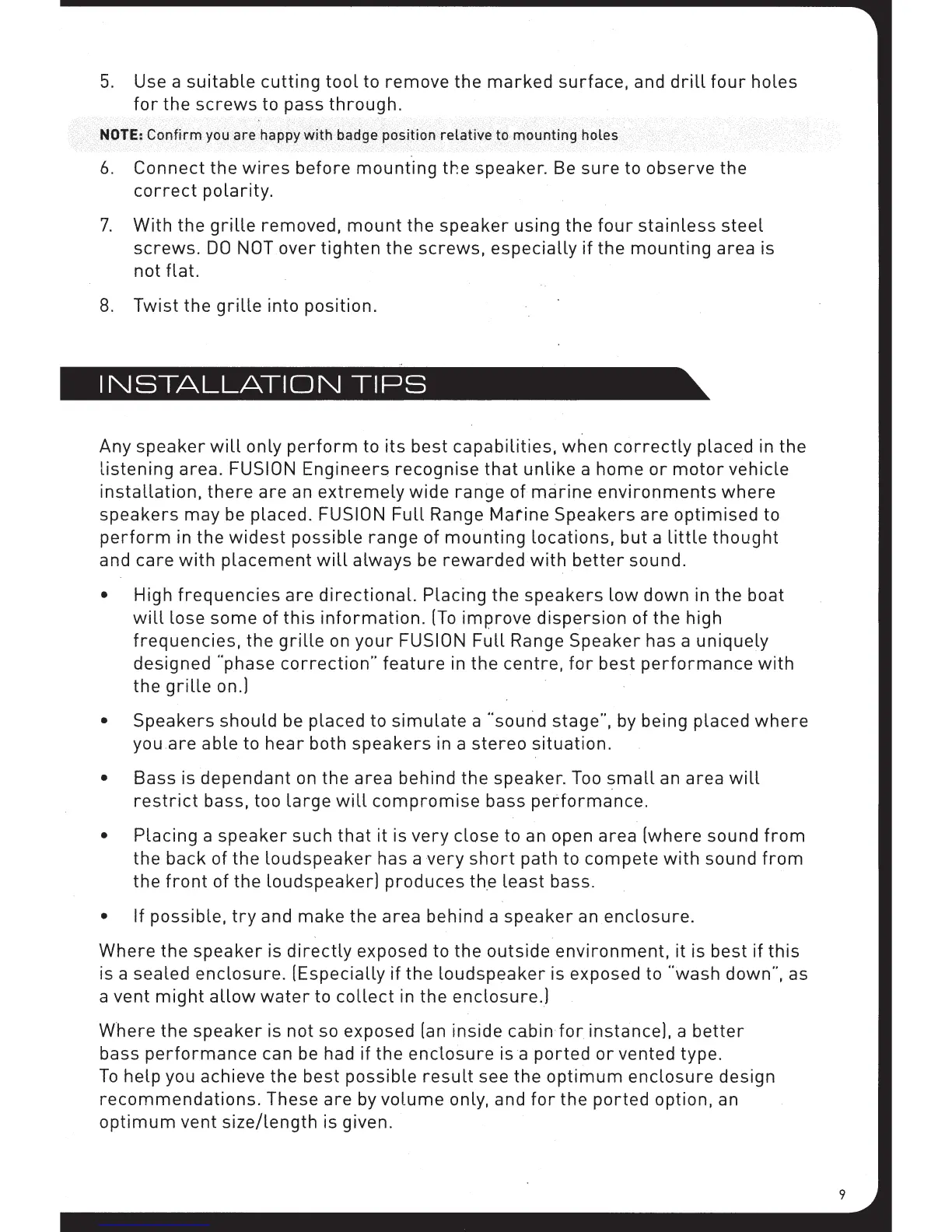

5. Use a suitable cutting tool to remove the marked surface, and drill four holes
for the screws to throu h.
6. Connect the wires before mounting the speaker. Be sure to observe the
correct polarity.
7. With the grille removed, mount the speaker using the four stainless steel
screws. DO NOT over tighten the screws, especially if the mounting area is
not flat.
8. Twist the grille into position.
INSTALLATION TIPS
Any speaker will only perform to its best capabilities, when correctly placed in the
listening area. FUSION Engineers recognise that unlike a home or motor vehicle
installation, there are an extremely wide range of marine environments where
speakers may be placed. FUSION Full Range Marine Speakers are optimised to
perform in the widest possible range of mounting locations, but a little thought
and care with placement will always be rewarded with better sound.
• High
frequencies are directional. Placing the speakers low down in the boat
will lose some of this information. (To improve dispersion of the high
frequencies, the grille on your FUSION Full Range Speaker has a uniquely
designed "phase correction" feature in the centre, for best performance with
the grille on.)
• Speakers
should be placed to simulate a "sound stage", by being placed where
you.are able to hear both speakers in a stereo situation.
• Bass is dependant on the area behind the speaker. Too !?mall an area will
restrict bass, too large will compromise bass performance.
• Placing a speaker such that it is very close to an open area (where sound from
the back of the loudspeaker has a very short path to compete with sound from
the front of the loudspeaker) produces th_e least bass.
• If possible,
try and make the area behind a speaker an enclosure.
Where the speaker is directly exposed to the outside environment, it is best if this
is a sealed enclosure. (Especially if the loudspeaker is exposed to "wash down", as
a vent
might allow water to collect in the enclosure.)
Where the speaker is not so exposed (an inside cabin for instance), a better
bass performance can be had if the enclosure is a ported or vented type.
To help you achieve the best possible result see the optimum enclosure design
recommendations. These are by volume only, and for the ported option, an
optimum vent size/length is given.
