FUTABA 4PK-2.4G SuperR - System Functions SYSTM; Battery Type Setting; Liquid Crystal Screen Backlighting Display Mode Setup; Setting of on Time

(Futaba) (TRM/DIAL)

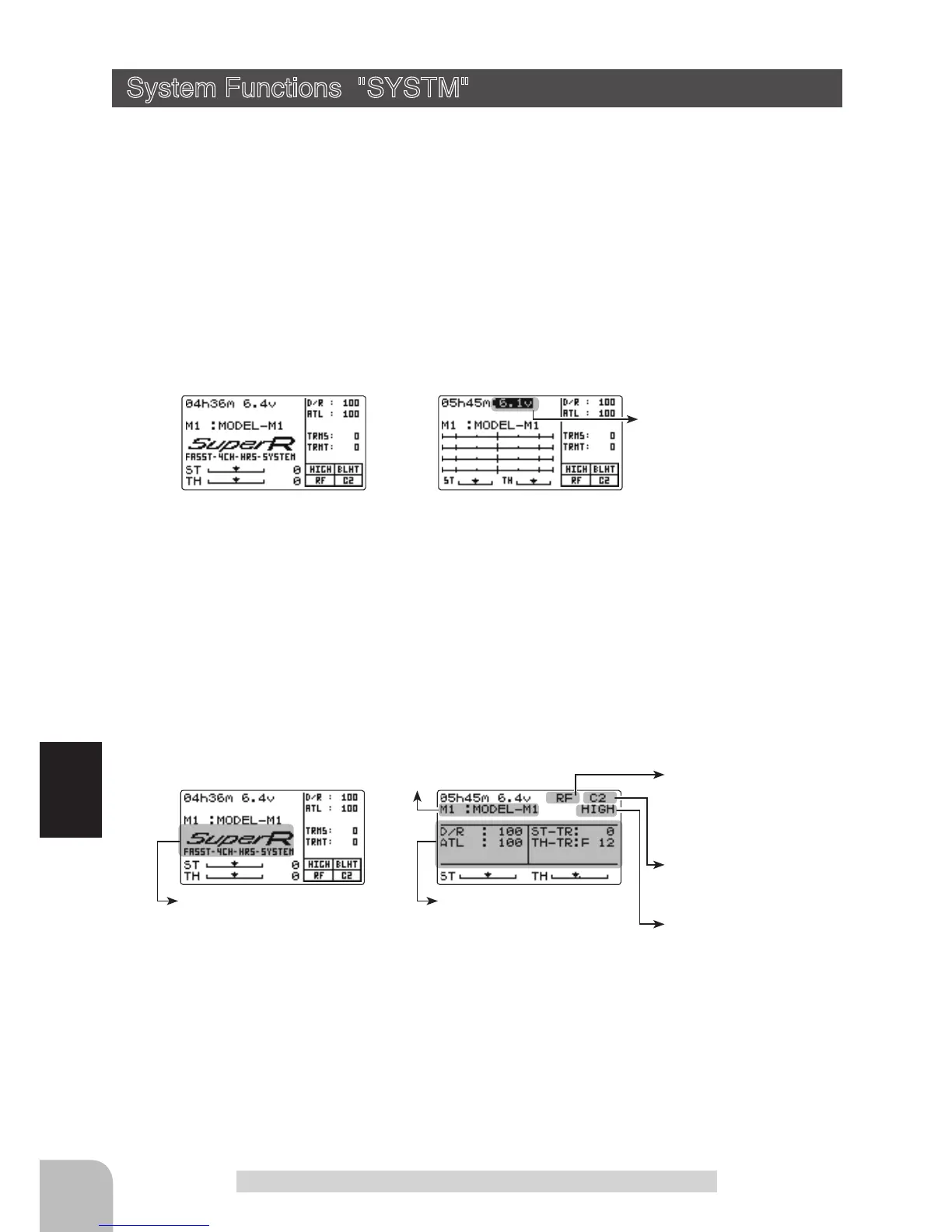

When "TRM/DIAL" was selected,
the trim DT1, DT2, and DT3 and
dial DL1, DL2, and DL3 informa-
tion is enlarged and displayed.
Model
name
RF display
When signals are being trans-
mitted, "RF"is displayed. When
signals are not being transmit-
ted, "DISP" is displayed.
Receiver type display
The type currently operating is
displayed. ("C1"/"C2")
(NiMH5 LiFe2) (DRY 4CELL)
* Voltage display
When BATT-TYP is set for dry
cell battery (DRY 4CELL), the
voltage display of each screen
will be displayed by this mark.
Servo response display
The mode currently operating is
displayed. ("HIGH"/"NOR")
When "Futaba", "SUPER-R", "TIMER",
"SRV-VIEW", "USR-NAME","4WS-
TYPE" or "TRM/DIAL" was selected,
this part is displayed.
122
Function
System Functions "SYSTM"
System Functions "SYSTM"
The graphic liquid crystal screen display mode, buzzer sound, LED display mode and
initial screen display mode can be set.
The system function setup items cannot be set for each model. (Second condition can be
set for each model.)
- Battery type setting (NiMH5 LiFe2, DRY 4CELL)
The T4PKSR can use dry cell batteries (alkaline battery recommended) with the
optional battery box, but the low battery alarm setting is different from that of a
rechargeable battery. Therefore, always set the battery type matched to the power
source used. Especially, when using a Futaba rechargeable type battery, always set the
battery type to "NiMH5 LiFe2". If the T4PKSR is used at "DRY 4CELL" setting, the
time from low battery alarm to stopping of the system will become extremely short.
- Liquid crystal screen backlighting display mode setup
(OFF, ON at button operation, normally ON)
- Setting of ON time (1~30 secs) when [ON at button operation] was selected above.
- Jog button LED mode setup
- Liquid crystal screen contrast adjustment (20 steps)
- Buzzer sound tone adjustment (OFF, 100 steps)
- LED display color setup (OFF, 7 colors)
- Initial screen display mode setting
("Futaba", "SUPER-R", Timer, Servo , Users name, 4WS type, Trim/Dial)
- Second condition setting (INH, ACT)
To use second condition, switch setting by function select switch (p.96) is neces-
sary, in addition to ACT (active) setting by this system.
- The power off forgotten alarm setting (OFF, 10 m)
- 2.4GHz band setting (GENERAL, FRANCE)
Select "GENERAL", except inside France.
- Quick EPA (p.50) setting (INH, ACT)
