92
19.3mm
4-M3
7.0mm
21.6mm
WARNING
If using screws to mount the CGY760R to the helicopter, it is impera-
tive to ensure that the machine does not vibrate excessively.
*Please do not mount with machine screws with vibration, please mounting with a dedi-
cated mounting pad.
M
OUNTING
O
F
CGY760R W
ITH
S
CREWS

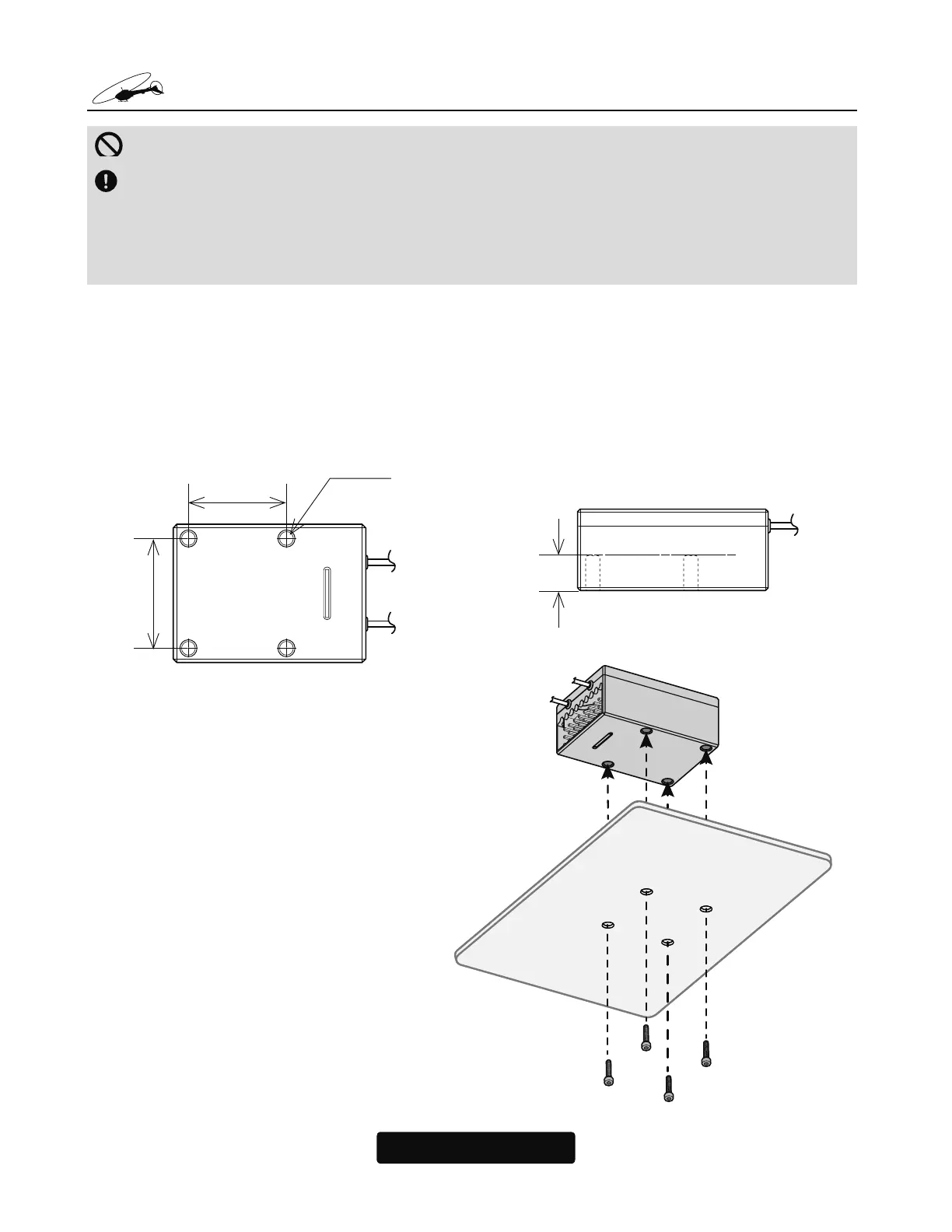

Drill holes in the plate
Refer to the figure below. Drill
holes in the mounting plate ac-
cordingly.
Screw size for attachment
The effective length of the screw hole of
the CGY760R main unit is 7mm.
Use the M3 screw whose length is less
than the plate thickness plus 7mm.
Mounting
Attach the CGY760R to the mounting
plate using M3 screws from the bottom of
the plate as shown in the example.
Ensure that the screws are no longer than
the plate thickness plus 7mm.
Notes:
*Ensure that these mounting screws will
not come loose during fl ight.
*As the CGY760R case is aluminum,
please be careful not to over-tighten the
mounting screws.
To Next Page
