Give the name of the position. If no unit has been assigned to the current position so far, the controller will
automatically offer the name of the one just selected. It can be kept this way, however, it is worth adding
some letter marks, for example. Later on, this will later help to determine the physical position of the unit
(e.g.: MH-420 L1: the first unit in the left bridge). The name can be modified according to the description in
the chapter of word processing. If the naming has been finished press ENTER.
By this the assignment of the unit to a position is completed. There is still one more adjustable parameter in
this menu item; the setup of the mirror direction. It may be needed if two lamps are installed opposite to each
other and you would like to move their light beams into the same direction by moving the right discs. This
time the mirror direction of one of the units has to be inverted with the F1 and F2 buttons.
If you would like to delete a unit from a position press DELETE.

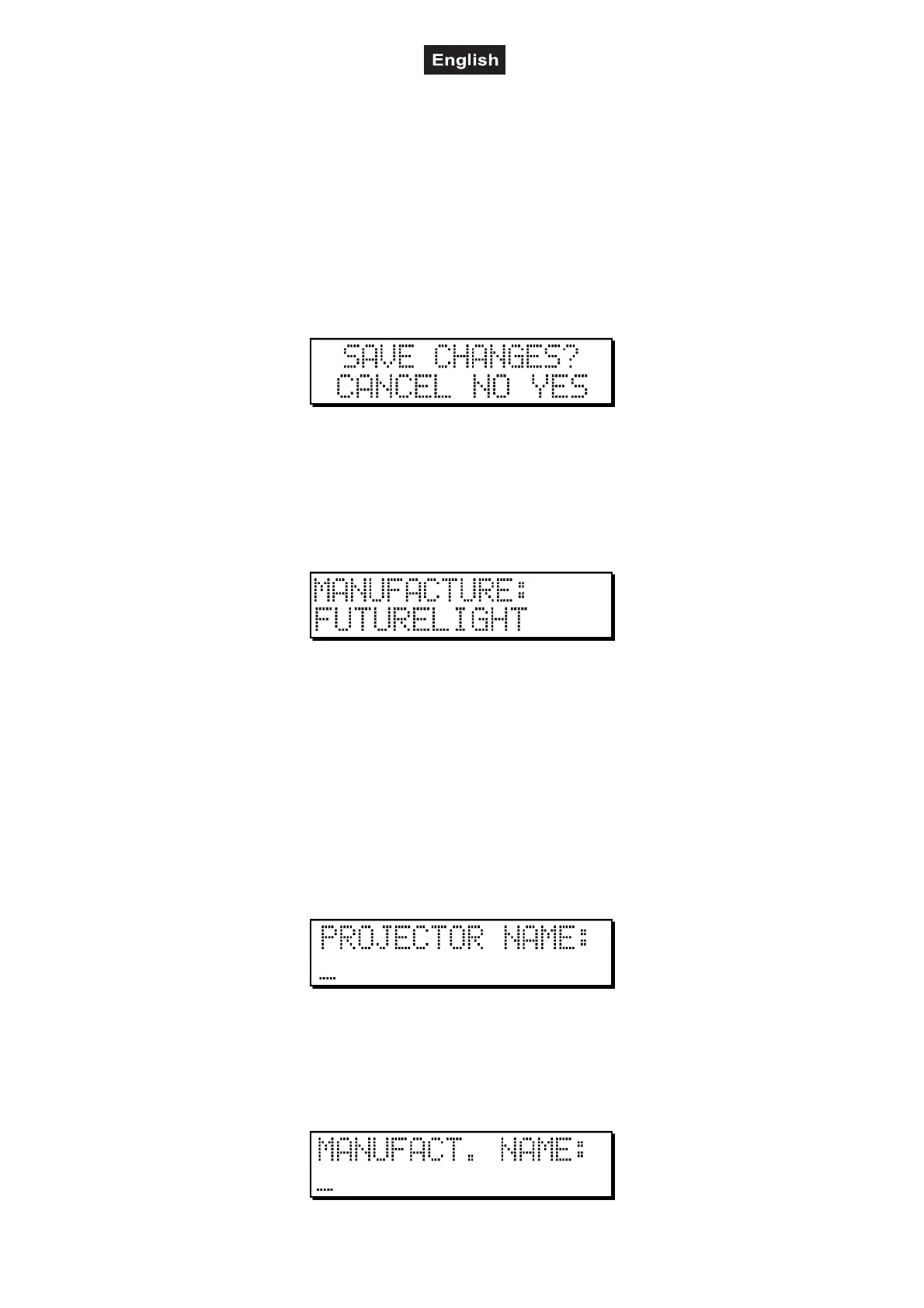

If no modification has been made in the menu item, the controller returns to the setup menu by pressing the
ESC button, if any modifications have been made, the controller asks for the confirmation to save the
modification.
By pressing the ‘Cancel’ (LEFT) button the controller will remain in the menu item. By pressing the ‘No’
button the controller will return to the menu without saving the modifications, while pressing the ‘Yes’ button
(ENTER) makes the controller save the modification and return to the menu.
SETUP MENU 1: UNIT INSTALLATION
You can find the directory of the control unit here. The controller is able to store a max. of 256 different units
in its memory. Due to the great number of types the data is systemized according to the manufacturer. It is
possible to enter a new unit if you have not used all the 256 options yet. The date of a selected unit can be
modified and a unit can be deleted.
ENTERING A NEW UNIT:
Press the NEW (RIGHT) button to enter the new unit. It does not matter whether you are in the selection of
manufacturer’s name or unit name, the only difference will be that the controller will automatically provide the
manufacturer’s name when starting from the selection of a unit name.
Providing the unit name:
Give the unit name.
By pressing ESC the controller returns to unit selection, in case of a modification it asks for the confirmation
to save.
By pressing ENTER the controller advances a step and asks you to provide the name of the unit’s
manufacturer.
