Original Bedienungsanleitung FUXTEC FX-MS152T_de_en_fr_rev03
39

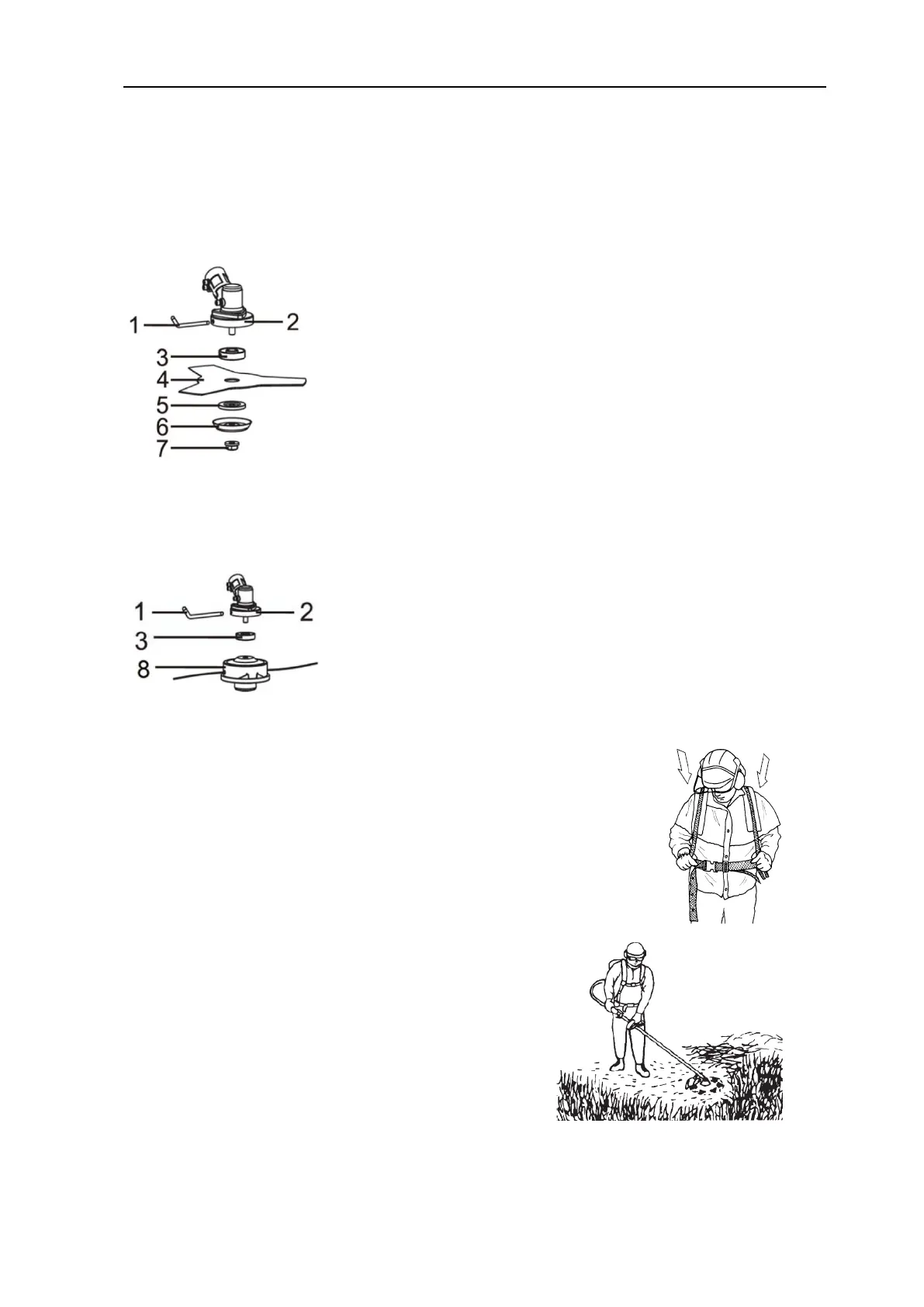

26. INSTALLING CUTTING BLADE AND HEAD
1. Put the angled bar (1) into the side holes of the gear case (2) and the plate (3) so as to fasten the axle.
2. Mount the blade (4) and the washer (5) onto the axle.
3. Mount the washer (6) and the nut (7). Fasten tightly anti-clockwise.
INSTALLING CUTTING HEAD
1. Put the angled bar (1) into the side holes of the gear case (2) and the plate (3) so as to fasten the axle.
2. Mount the trimmer head (8) on the axle. Fasten tightly anti-clockwise.
BALANCE THE UNIT
1. Equal load on shoulders
A well matched saw and harness make work much easier. Adjust
the harness to give the best working stance. Adjust the side
straps so that
the weight is equally divided across the shoulders.
2. Slide clamp up or down until unit balances with head
aparting from the ground when using it.
