Fuzion Z300 - Components and Assembly; Components & Parts List; Assembling Your Z300 Series Scooter

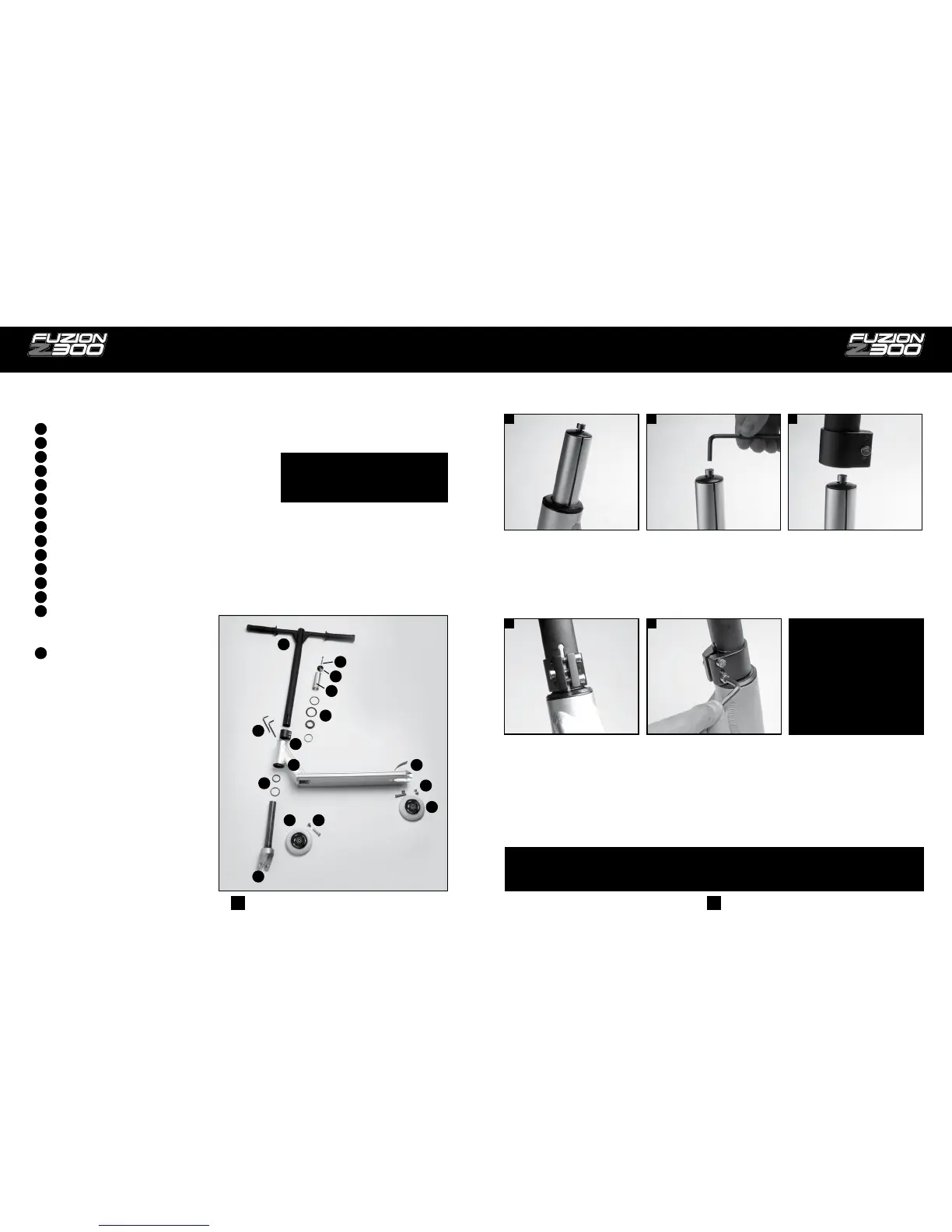

ASSEMBLING YOUR Z300 SERIES SCOOTER
COMPONENTS & PARTS
Z300 COMPONENTS LIST:
Aluminum Dog-Bone Shape Deck & Neck
Chromoly Handlebars (T-Bar)
Triple Bolt Clamp
HIC Compression Bolt
HIC Compression Cap
HIC Shim
Upper Sealed Headset Bearings (4 pieces)
Lower Sealed Headset Bearings (2 pieces)
Steel Fork
PU Wheel (Aluminum Core)
Front Wheel Axle & Bolt
PU Wheel (Aluminum Core)
Rear Wheel Axle & Bolt
Flex Brake Bolts & Nuts
TOOLS INCLUDED:
5mm Allen Wrench (x2)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
2 3
1
4
2 3
3
FAILURE TO PROPERLY ASSEMBLE AND TIGHTEN ALL BOLTS AND COMPONENTS MAY CAUSE LOSS OF SCOOTER
CONTORL AND INCREASE RISK OF FALLING. MAKE CERTAIN THAT YOU FULLY UNDERSTAND ALL THE ASSEMBLY AND
MAINTANENCE INSTRUCTIONS. IF YOU ARE UNCERTAIN, PLEASE CONTACT NEXTSPORT CUSTOMER SERVICE.
Visit our website
www.fuzionscooter.com
for product support, replacement
parts & general help.
Headset bearings, HIC
Shim, Compression cap and
compression bolt are factory
assembled.
Rotate the clamp until the
clamp opening is centered
over the slit in the riser tube.
If HIC needs to be adjusted:
place the HIC shim over the
fork and tighten the bolt
through the top cap and into
the top of the fork until there
is no headset wobble and
the fork rotates freely.
Slide the handlebars (T-bar)
over the fork.
Once the T-bar is aligned
correctly, using the Allen
wrenches, evenly tighten the
three bolts on the clamp so
that it compresses around
the riser.
owner’s manual owner’s manual
WATCH THE
Z300 SCOOTER!
CHECK VIDEO FOR
MORE INFORMATION.
