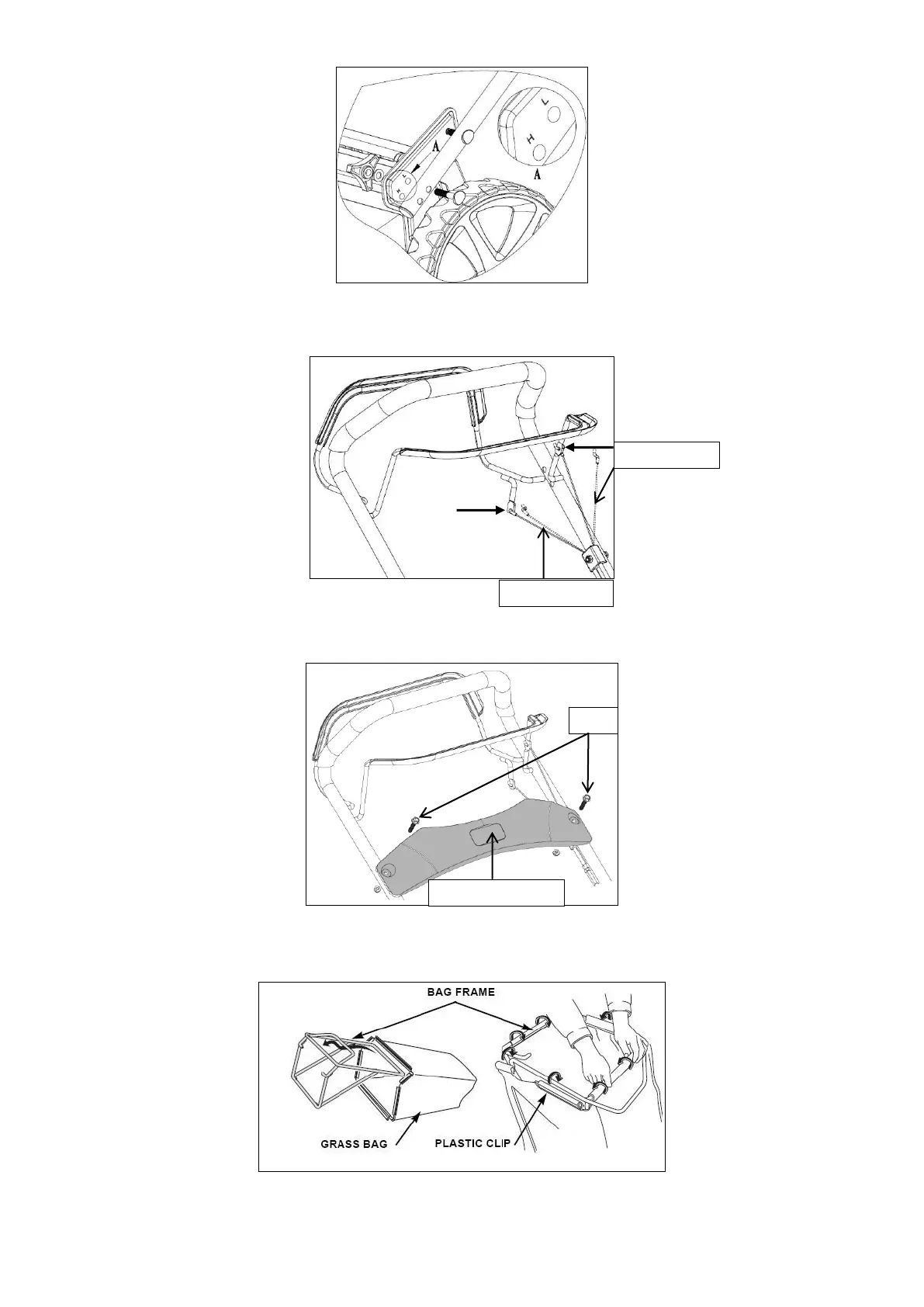

Brake cable setup
Put the brake cable and clutch cable to the hole of brake lever and clutch lever. (see the arrow mark)
Panel Setup
Take out the panel and two bolts in a bag from carton and fix the panel with the bolts.
Grass Bag Assembly
z Slide the grass bag frame into the grass bag and attach the clips as shown.
z Lift the rear discharge guard, remove the mulching plug, and install the grass bag.
CLUTCH CABLE
BRAKE CABLE
BOLT
CONTROL PANEL
