6

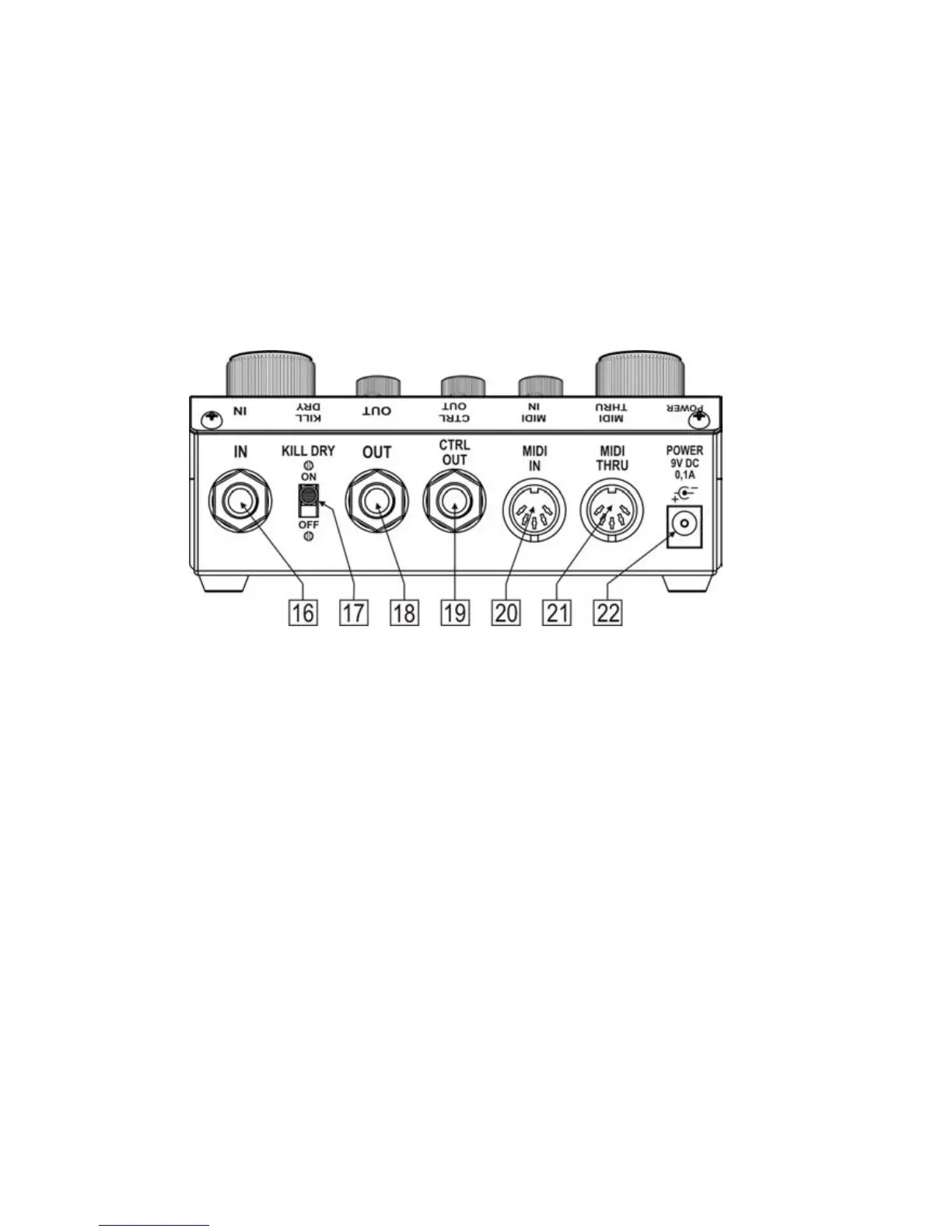

16 - IN signal connector
17 - KILL DRY switch – dry signal OFF switch
18 - OUT signal connector
19 - CTRL OUT output to control DUAL REVERB
20 - MIDI IN input
21 - MIDI THRU output
22 - 9V power supply connector
