Chain drive
Installation and Operating instructions
ELTRAL KS30/40 RADIO CONTROL
15 Guarantee and aftersales service
In principle, all deliveries are made on the basis of our "General Terms and Conditions".
The guarantee complies with the legal regulations and is valid in the country where the motor
was purchased.
The guarantee covers material and manufacturing defects occurring under normal stress.
Guarantee and liability claims for personal injury and damage to property are excluded if they
are due to one or more of the following:
 Inappropriate use of the product.

Improper installation, commissioning, operation, maintenance, and repair of the product .
 Operation of the product with faulty, incorrectly fi tted or non-functional safety and
protection devices.
 Non-observance of the installation and operating instructions.
 Unauthorised structural modifi cation of the product.
 Catastrophic events as a result of foreign-object damage and force majeure.
 Wear.
For any guarantee claims or the delivery of spare parts or accessories, please contact your
nearest subsidiary.
16 Connection diagram
Connection of KS30/40 RADIO CONTROL
The ELTRAL KS 30/40 RADIO CONTROL chain drive comes with a connection cable which is
approx. 2m long. It must be connected to a mains voltage of 110V or 230V~ 50Hz.
The opening and closing control commands are issued by the KS 30/40 handheld radio
transmitter (Item No. K-19046-00-0-0). The drive cannot be controlled via a hard-wired switch or
button.

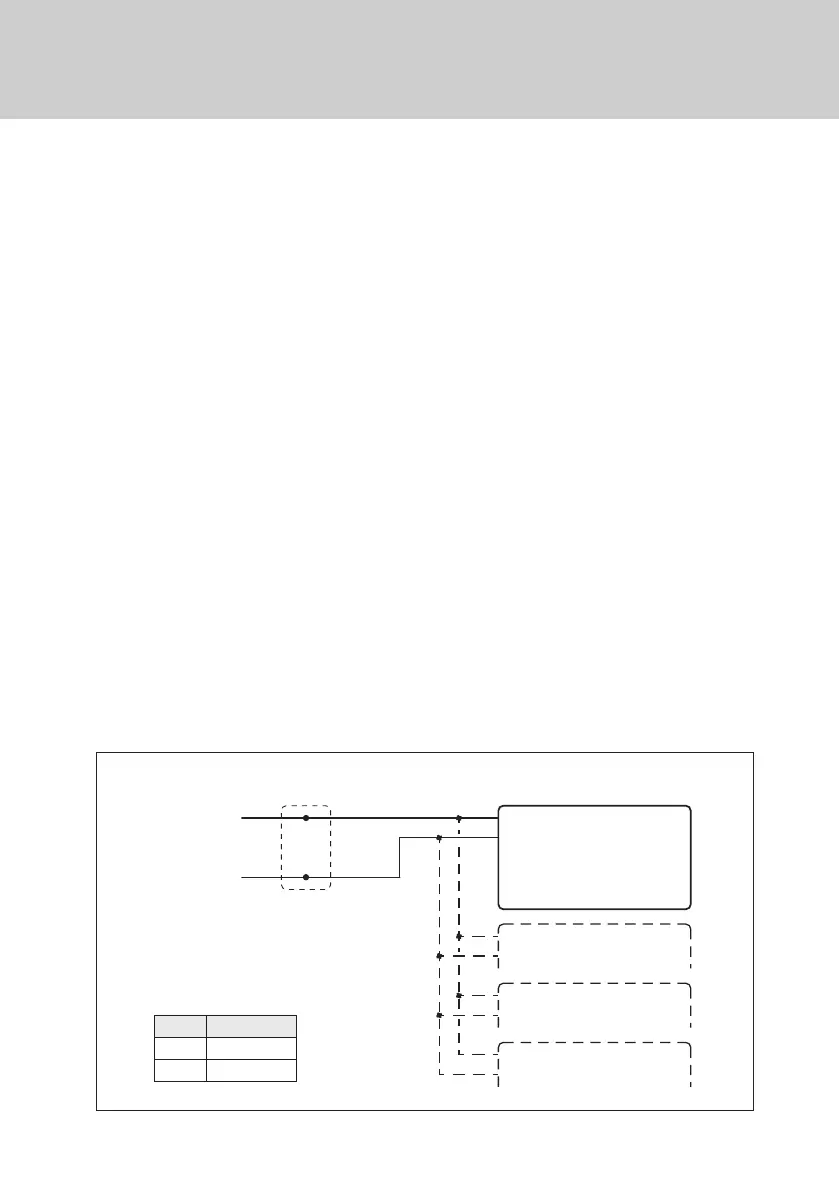

The connection must be made according to the following wiring diagram:
1
2
N
110/230 V~
F
1
2
1
1
1
2
2
2
Kabel
Farbe
Hellblau
Braun
Antrieb
Antrieb 2
Antrieb 3
Antrieb 4
110 V/230 V AC – solo operation
Drive
Drive 2
Drive 3
Drive 4
Cable Colour
1 Light blue
2 Brown
