Gallagher 3E3958 110V Energizer User Manual
Step 2. Install the Ground system
HobbyMaster
M50
Ground Rod Clamp
(352HD)

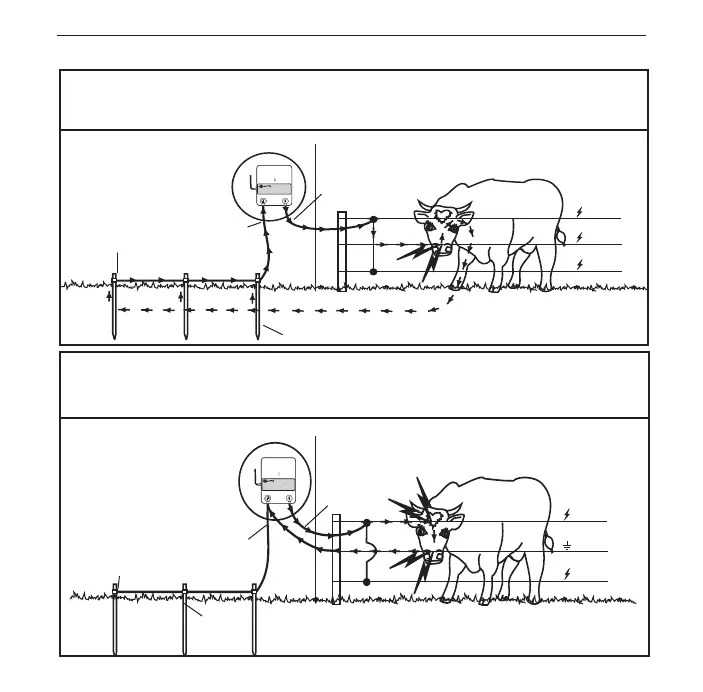

All hot wire system
(for areas with good soil conducƟ vity)
The livestock must touch the wire and
the ground to feel a shock
Hot
Green
Red
Ground Rod (351)
Hot
Hot
a)
HobbyMaster
M50
A ground wire return system
(for areas with poor soil conducƟ vity)
The livestock must touch both a hot wire and
the ground wire to feel an eff ec ve shock
Ground
Hot
Hot
Ground Clamp
(352HD)
GREEN
RED
Ground
Rod(351)
b)
The top and bo om wires are electrifi ed
and the middle is the ground wire.
