Gallagher 3E1803 110V Energizer User Manual
11
5-Step Installa on Guide

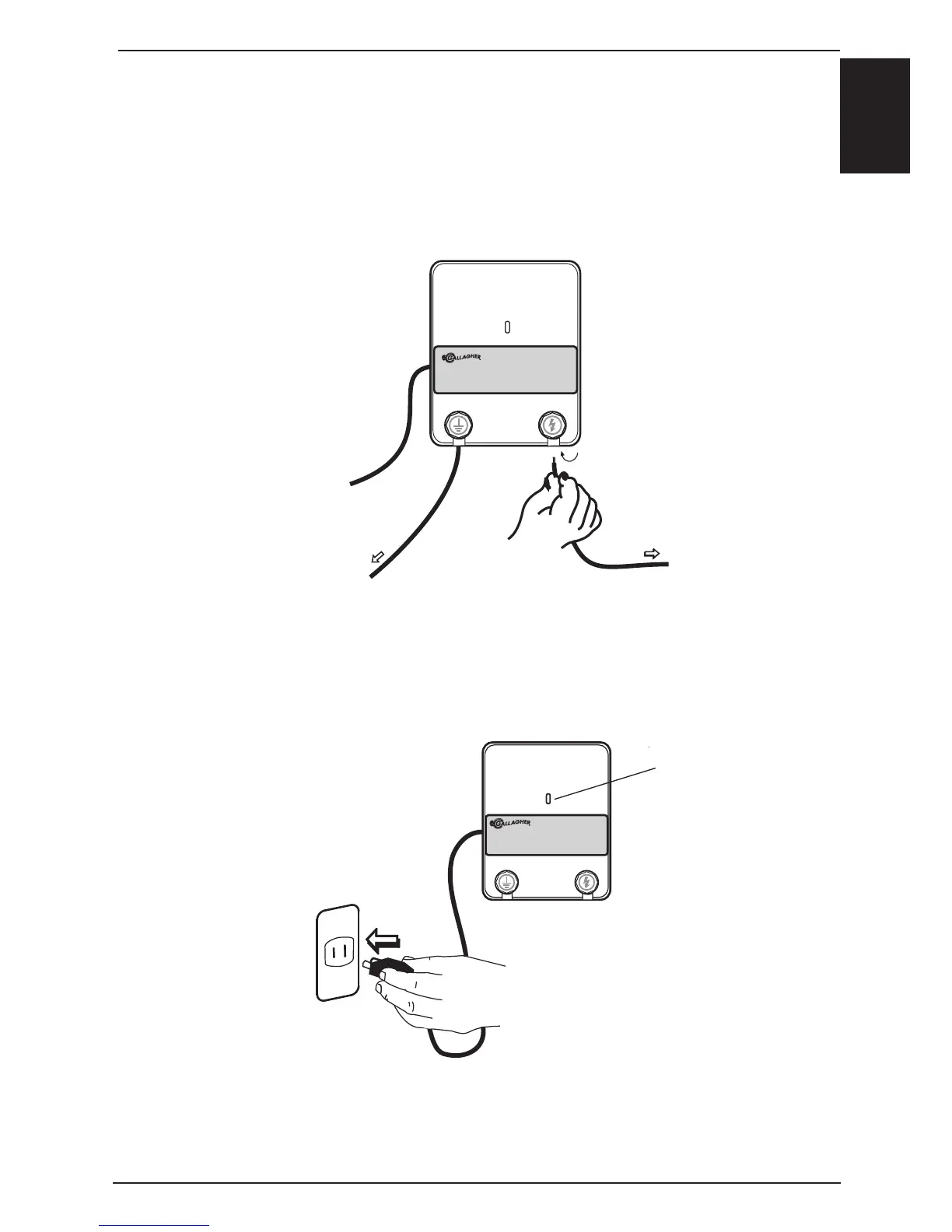

Step 4. Connect the fence
Connect the energizers red (FENCE) terminal to the fence using double insulated
cable. Remove 2” of plas c coa ng from one end of the cable. Bend the end of
the wire to form a loop. Unscrew the red (FENCE) terminal and insert the loop of
wire between the washers. Screw the terminal closed, ensuring the wire is rmly
clamped. A ach the other end of the cable to the fence using a joint clamp.
Step 5. Plug the energizer into a power outlet
Check that the light on the front of the energizer is ashing.
Red
Green
To fence
To ground
Light
