Gallagher 3E1803 110V Energizer User Manual
8
5-Step Installa on Guide
5STEP INSTALLATION GUIDE

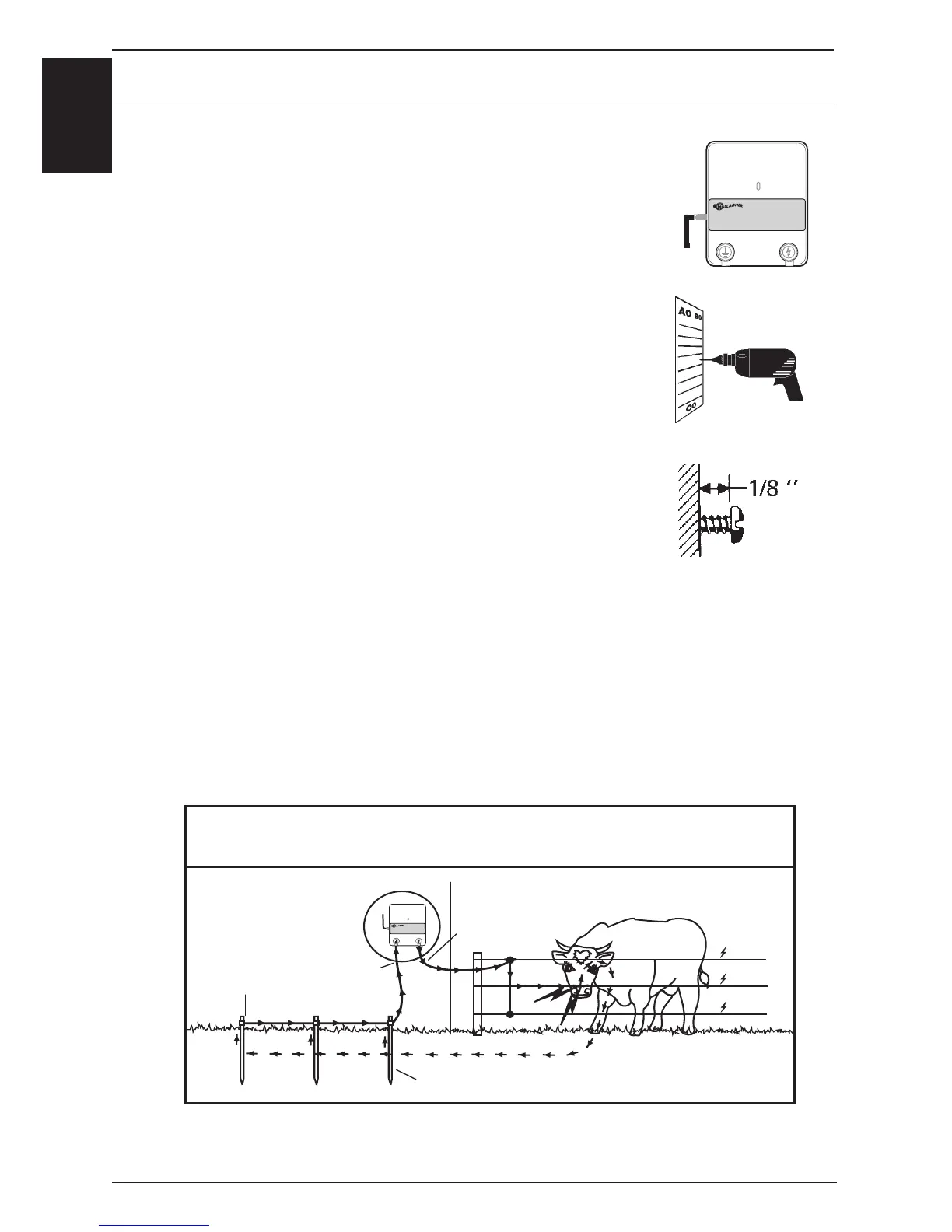

Step 1. Mount the Energizer
The energizer is easy to install. Mount the energizer on a wall,
under cover, out of reach of children, adjacent to a power
outlet.
Install where there is no risk of the energizer incurring fi re or
mechanical damage.
a) Using the template on the center page as a drilling
guide, drill 2 x
5
/
32
” holes (A & B).
b) Fix the screws provided into the wall leaving the head
of the screw about
1
/
8
” out from the wall.
c) Place the energizer over and slide down onto the
moun ng screws.
Step 2. Install the Ground system
Buildings and gates for example, can become electrifi ed with fence voltages if the
energizer is improperly grounded.
HobbyMaster
M50
Ground Rod Clamp
(352HD)
All hot wire system
(for areas with good grounding systems)
The livestock must touch the wire and
the ground to feel a shock
Hot
Green
Red
Ground Rod
(351)
Hot
Hot
a)
b
a
