Assembly Instructions
Step 13:
Step 14:
Locate six U-Brackets (#19).
Secure 3 Ladder Sections with the
U-Brackets (#19) using four (4)
M6x40 Bolts, eight (8) Steel
Washers and four (4) Locknuts per
each Ladder Section as shown in
Figure 13.
WARNING:
U-Brackets are required and must be
used to provide support for the
attachment points between the ladder
sections. Bolts must be threaded
through them on both sides of the
ladder section. DO NOT omit these U-
Brackets. Failure to properly use the
U-Brackets could lead to serious injury
or death.
22

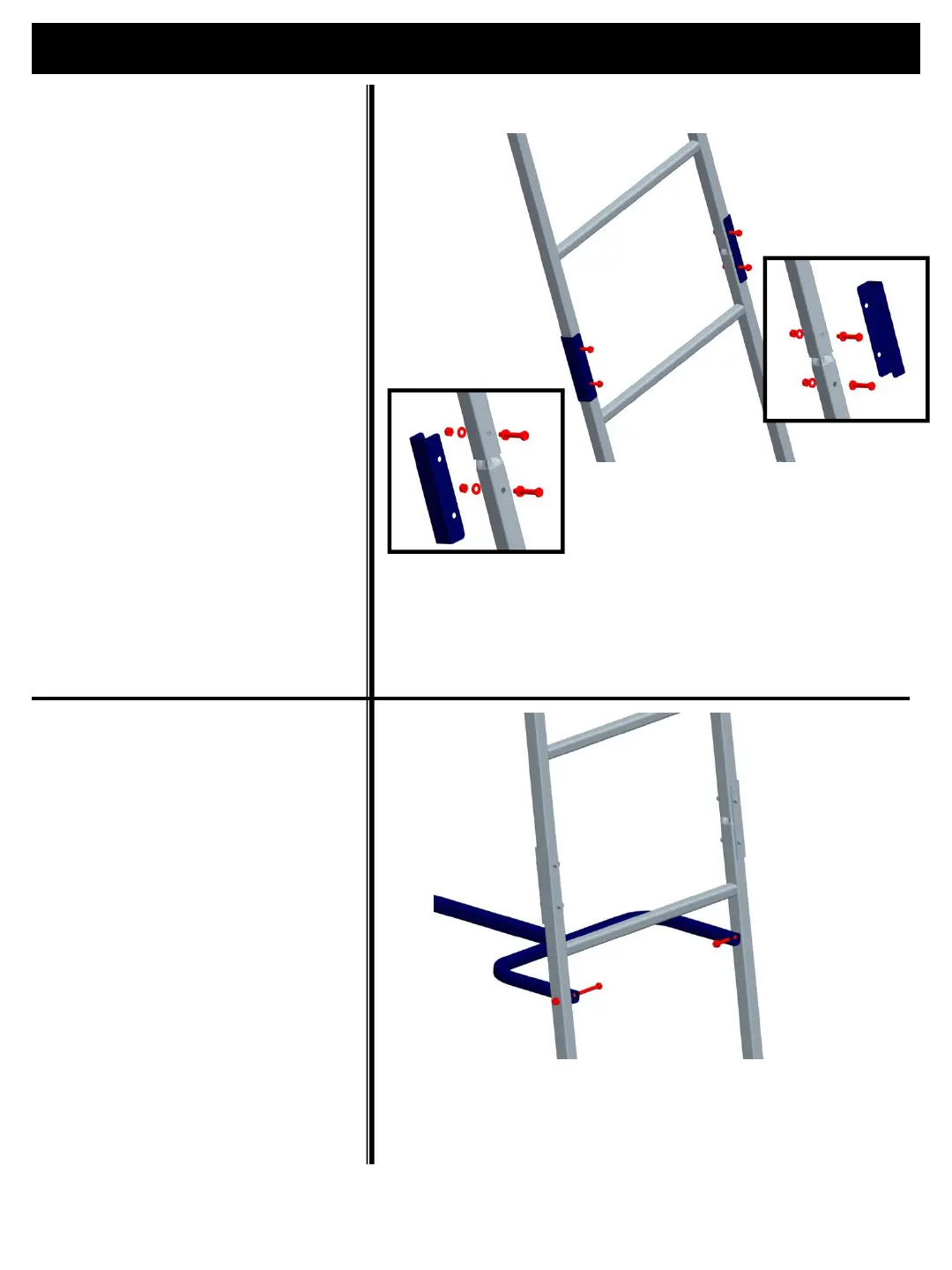

Figure 13
Ladder Sections Installed and Secured
Left Side
Right Side
Locate Adjustable Tree Brace
Mount (#14). Install the Adjustable
Tree Brace Mount (#14) onto the
#2 Ladder Section (#17) using two
(2) M6x60 Bolts, six (6) Nylon
Washers and two (2) Locknuts as
shown in Figure 14.
Note: Please place one Nylon
Washers between the
Adjustable Tree Brace Mount
and the #2 Ladder Section each
side.
Figure 14
Install Adjustable Tree Brace Mount
To Next Page
