Gamko X/VS20 - Page 7

Flexbar
21-1-2009
edda
Algemene installatie instructie
modifications
destination
Gamko Holding BV
Mon Plaisir 75
4879 AL Etten-Leur
Tel.(0)76-5087500
The Netherlands
name
drawing nr.
draftsman date
196169
1 02/09 DMX + CELS 5611 1 02/09 DMX + CELS 5611
Blad 7 van 13
36
37 38
39
35
C
DETAIL C
1
218750BE
006040138
006040117
D
DETAIL D
max. 20mm
2
3
6
5
34
4
7
8
GB

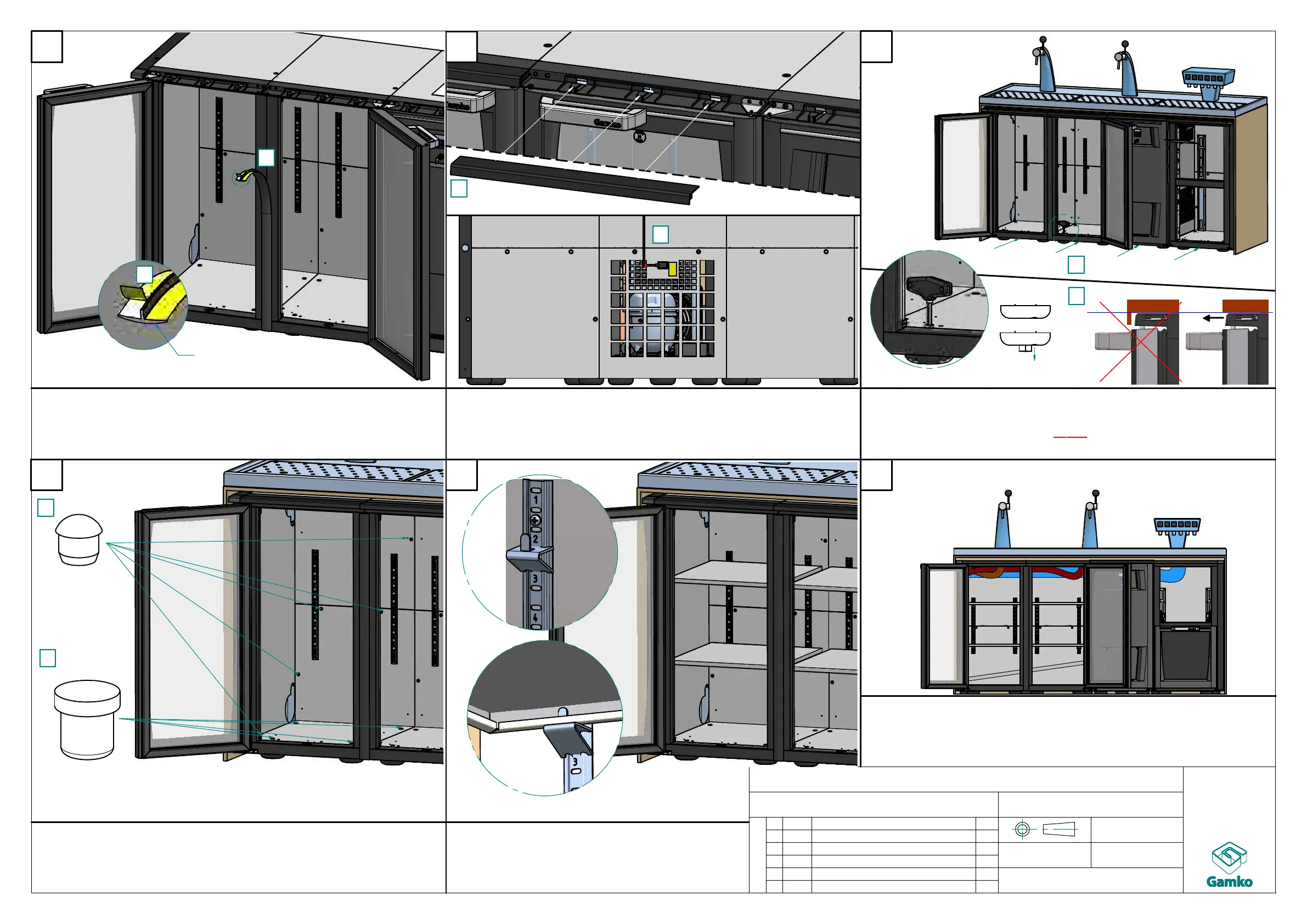

1 Remove paper on the backside of the rubber strip
2 Place rubber strip between frames
3 Place cable duct covers
(horizontaly, according to illustration above)
4 Connect line cord in socket
(tie up cord to prevent loss during placement)
5 Slide bar in place
6 Adjust feet to level out bar and/or jack up bar against top
Attention: cable duct covers must remain accessible!
7 Place caps to cover all coupling holes inside segments
8 Place caps to cover all feet adjuster holes
Place shelf support clips and shelves
Slots in shelf must fall over rear clips
Neatly clamp up beer- or postmix-tubes, copper, drains,
electrics etc. when run through the segments
Seal all holes in insulated panels (when made)!
Check if all doors and drawers close properly!
