5
Floor Stand Leg Assembly
The stringing machine uses a four leg fl oor
stand design. The legs must be assembled
to the Lower Column before use. Remove
all parts from the shipping carton to confi rm
that contents match the parts list.

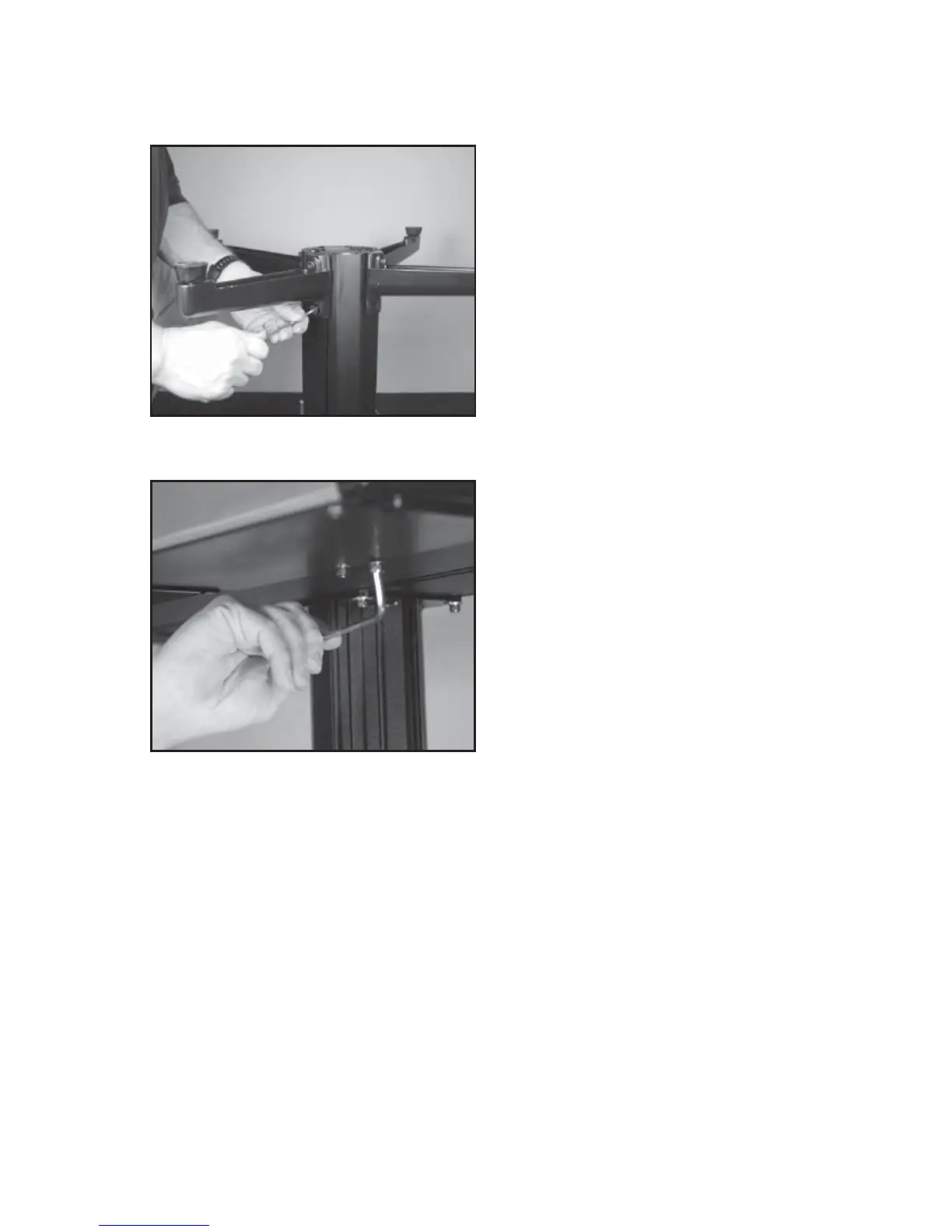

Align the holes in the Leg Flange with the
matching holes in the Lower Column. Se-
cure the leg with one M8x30 fl at head screw
through the upper hole, and one M8x35
socket head cap screw through the bottom
hole. Repeat this procedure for the three
remaining legs.
ASSEMBLY INSTRUCTIONS
Mounting the Floor Stand to the
Machine Base
The Floor Stand can be mounted to the ma-
chine base by laying the machine on the fl oor
to align the 4 holes in the fl ange plate to the
machine base or by setting the machine on top
of the upright Floor Stand. Note: If mounting
the machine base to the top of the upright
Floor Stand use the help of an assistant to
balance the machine base while aligning
and tightening the four cap bolts. Orient the
fl oor stand to the machine so that the boss
for the string reel will be on the left side of
the machine base and the fl oor stand power
switch is at the rear side of the machine base.
CAUTION: To prevent damage to the string gripper, never lift or
move the machine by the string gripper.
