beam with the 1/8” holes. Install 14 clips to hold the mesh as shown below. When applying the clips keep the mesh taut to
obtain a flat surface mesh. A flat surface looks nice, but electrically it doesn’t matter
B. Locate the two 24” x 23 ½ ” mesh pieces. Place them over the 24” x 24” frame. In so doing you will place

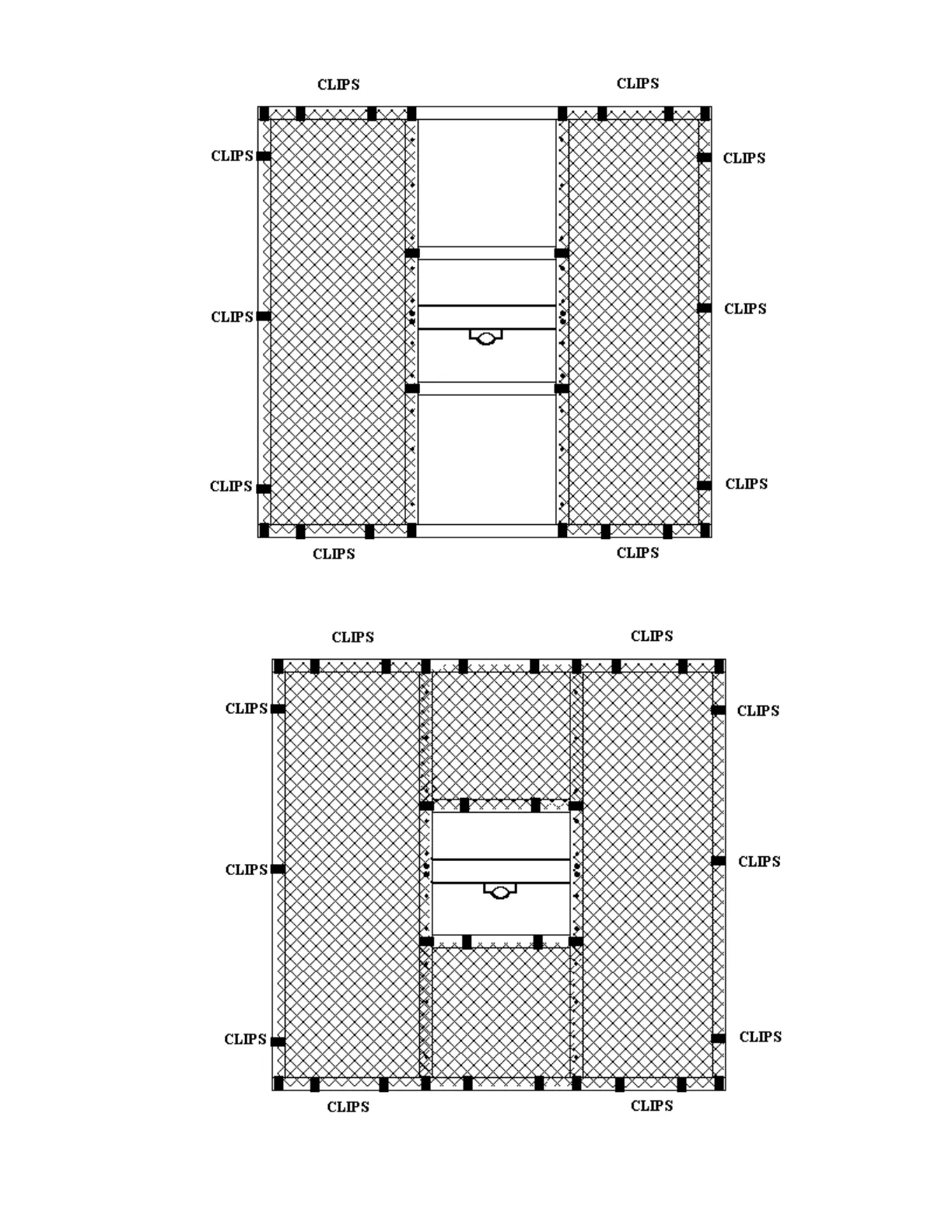

one edge over the mesh already covering the 1/8” holes. Refer to the figure below.
D. Now locate the 5/16” stainless steel hex self-tapping screws and washers. Secure both meshes to the
box beams, using the screws, washers and nut driver supplied. A total of 20 screws are required.
