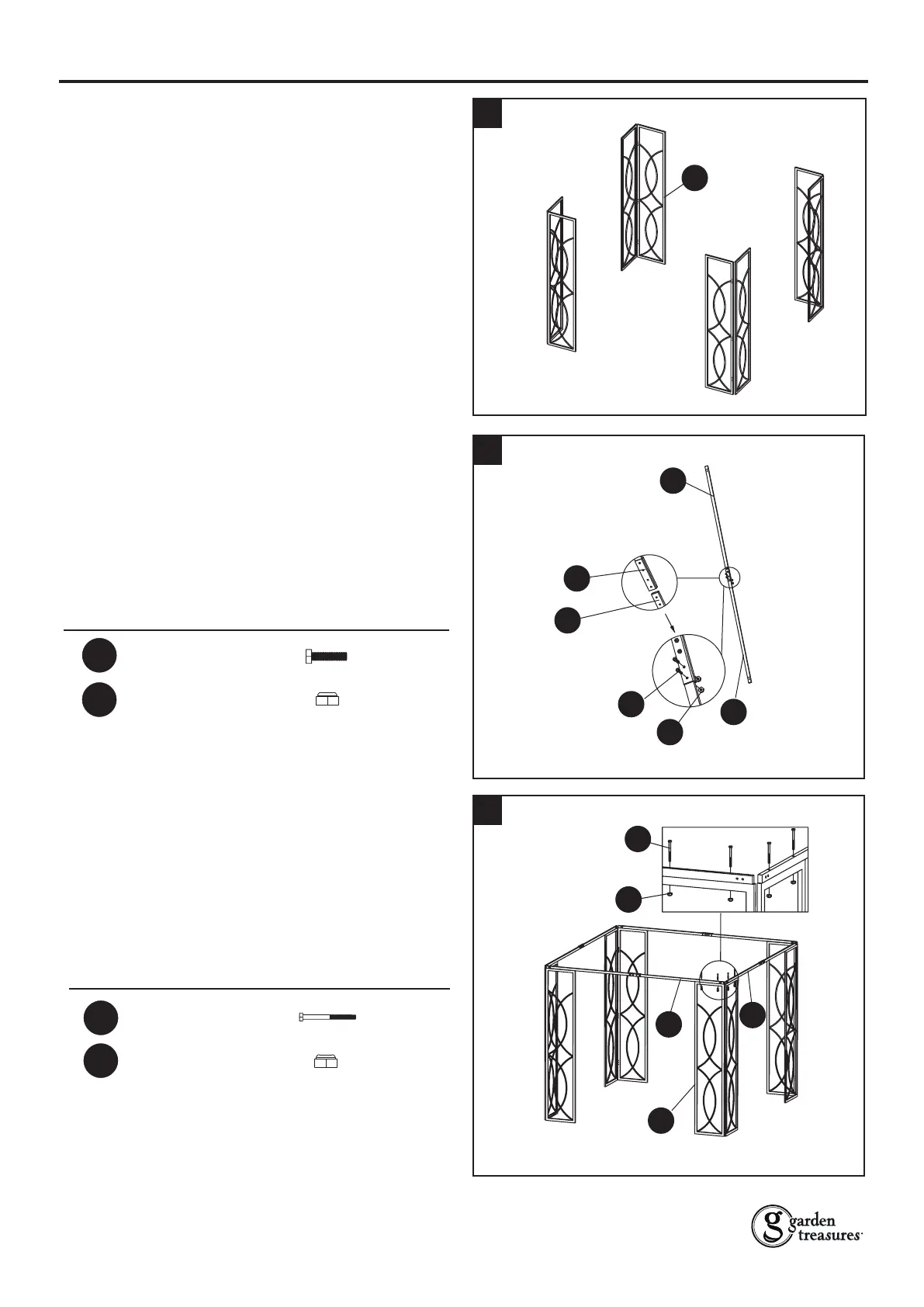

ASSEMBLY INSTRUCTIONS
1. Stand the 4 side panel posts (A) upright.
Make sure the short edge with two holes is
at the top, and the short edge with one hole
is at the bottom.
1
Hardware Used
M6 x 30 L Bolt
x 8
M6 Nut
x 8
A
2. Insert the top crossbar (D) into the crossbar
with metal bracket (C). Line up the holes and
insert an M6 x 30 L bolt (AA) from outside
to inside through holes in both crossbars
and fasten with an M6 nut (CC) for each.
Repeat procedure with the remaining
crossbars. Tighten all bolts.
2
3
BB
3. Place one crossbar assembly on top of two
side panel posts. Line up the holes. Insert
an M6 x 67 L bolt (BB) through the crossbar,
through the side panel post and secure with
an M6 nut (CC) for each. Tighten the bolts.
Repeat procedure with the remaining
crossbars.
Hardware Used
M6 x 67 L Bolt
x 16
M6 Nut
x 16
4
AA
BB
AA
CC
AA
AA
AA
CC
CC
C
C
D
AA
CC
D
A
D
C
