Garmin G1000 Line Maintenance Manual

______________________________________________________________________________
____________________________________________________________________________
Page 2-32 LMM for the Kodiak 100
190-02102-00 Rev.4

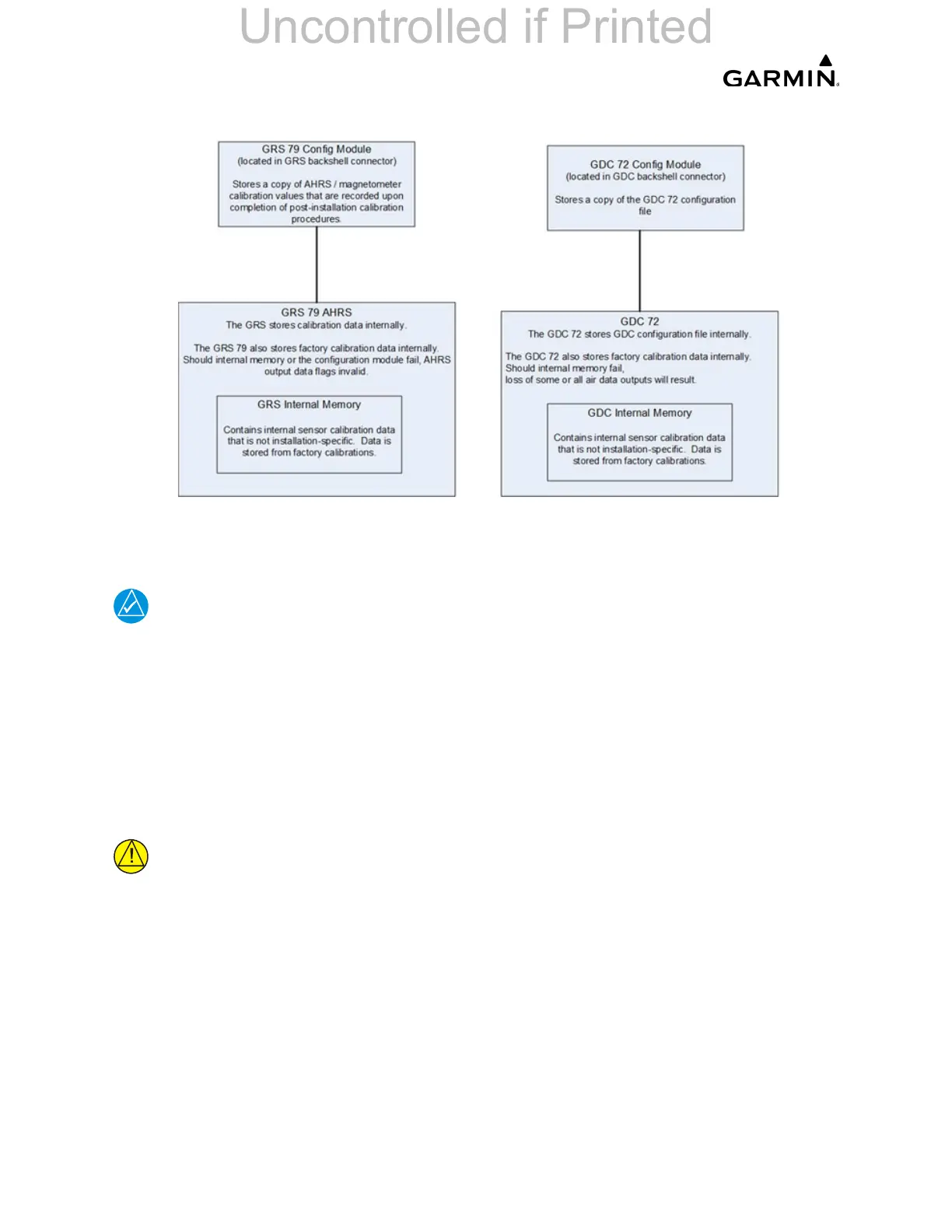

Figure 2-16. GRS/GDC Configuration Settings Storage
2.8 LOADER CARDS
NOTE
The system requires the use of SanDisk SD™ cards for loading software
and configuration.
A Secure Data (SD) Card is used to load and configure software. It is very important to
use the correct loader card part number. Each loader card's part number defines all files
found on the card for a specific installation. Approved loader card part numbers are
found in SN21-01 Kodiak 100 G1000 Software Configurations and Updates.
The display data card slots are located on the right side of the display bezels (Figure 2-
17). Each display bezel is equipped with two card slots.
CAUTION
Be cautious when using software loader cards during maintenance. Always
make sure the correct part number of the loader card that is going to be
used before inserting it into a display. The system immediately initializes
the card upon start. On-screen prompts must be given careful attention to
avoid possible loss of data.
Uncontrolled if Printed

Garmin G1000 Specifications

General

Display Type	LCD
Primary Flight Display (PFD)	Yes
Multi-Function Display (MFD)	Yes
Terrain Awareness	Yes
Autopilot Integration	Yes
Integrated Flight Deck System	Yes
Weather Radar	Optional
Traffic Advisory System (TAS)	Optional
Terrain Awareness and Warning System (TAWS)	Yes
Resolution	1024 x 768 pixels
Weather Data	Yes
Navigation	Yes
AHRS	Yes
Air Data Computer (ADC)	Yes
Interfaces	ARINC 429, RS-232
Certification	TSO certified
Traffic Information	Optional (requires ADS-B or TCAS)
