SECTION 10 – HAZARD
AVOIDANCE
Displaying Terrain and Obstacles on the
Navigation Map
1) With the Navigation Map displayed, select the MAP
Softkey.
2) Select the TERRAIN Softkey. Terrain and obstacle
proximity is now be displayed on the map.
10.6 TERRAIN AWARENESS & WARNING
SYSTEM (TAWS) DISPLAY
(OPTIONAL)
NOTE: Terrain data is not displayed when the
aircraft latitude is greater than 75 degrees north
or 60 degrees south.
NOTE: TAWS operation is only available when the
G1000 is configured for a TAWS-B installation.
Displaying Terrain on the TAWS Page
1) Turn the large FMS Knob to select the Map Page
Group.
2) Turn the small FMS Knob to select the TAWS
Page.
3) If desired, select the VIEW Softkey to access the
ARC and 360 Softkeys. When the ARC Softkey
is selected, a radar-like 120° view is displayed.
Select the
360 Softkey to return to the 360° default
display.
4) Rotate the Joystick clockwise to display a larger
area or rotate counter-clockwise to display a smaller
area.

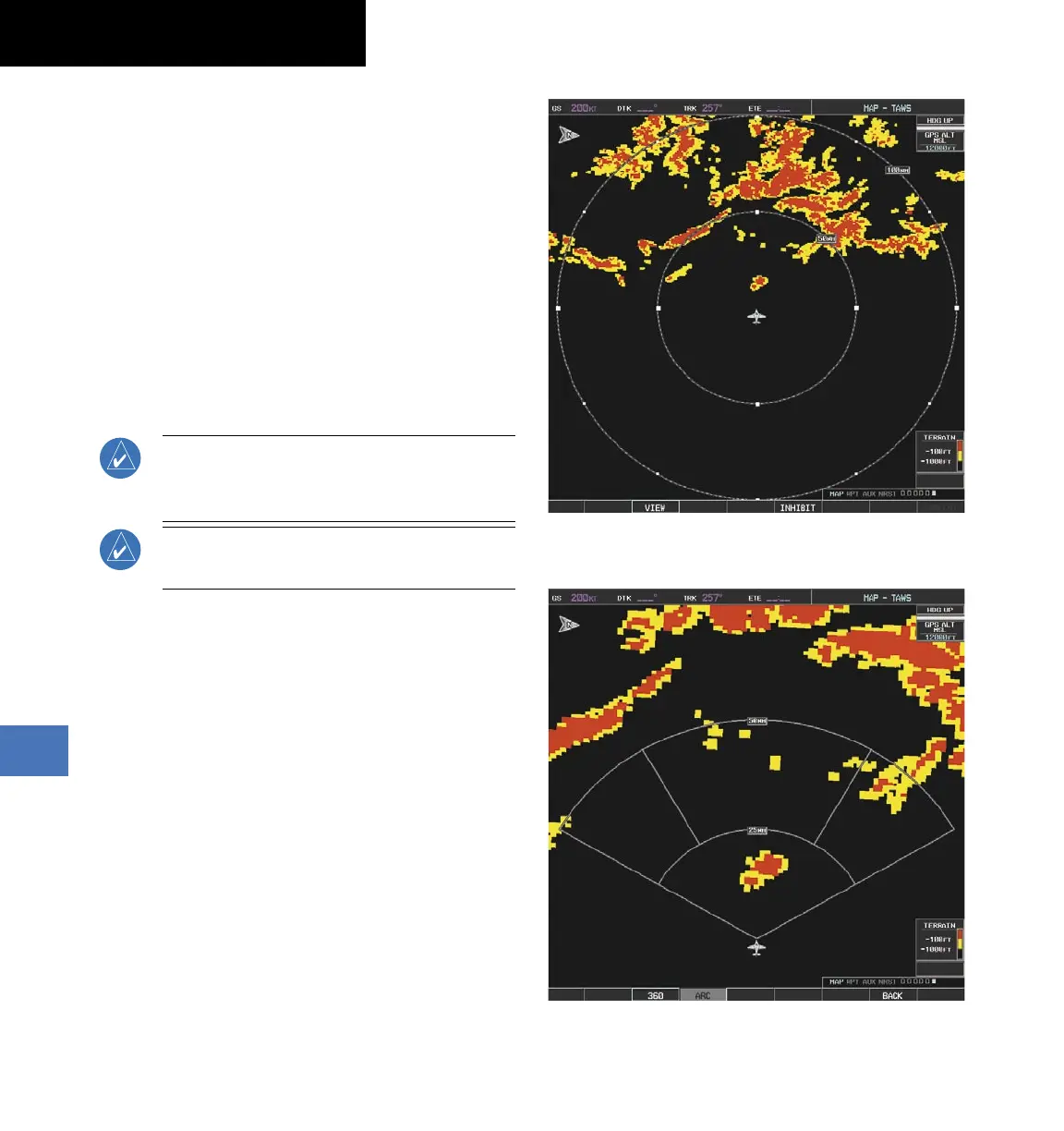

Figure 10-16 TAWS Page (360˚ View)
Figure 10-17 TAWS Page (ARC View)

Garmin G1000 Specifications

General

Display Type	LCD
Primary Flight Display (PFD)	Yes
Multi-Function Display (MFD)	Yes
Terrain Awareness	Yes
Autopilot Integration	Yes
Integrated Flight Deck System	Yes
Weather Radar	Optional
Traffic Advisory System (TAS)	Optional
Terrain Awareness and Warning System (TAWS)	Yes
Resolution	1024 x 768 pixels
Weather Data	Yes
Navigation	Yes
AHRS	Yes
Air Data Computer (ADC)	Yes
Interfaces	ARINC 429, RS-232
Certification	TSO certified
Traffic Information	Optional (requires ADS-B or TCAS)
