6 CONTROLS
14

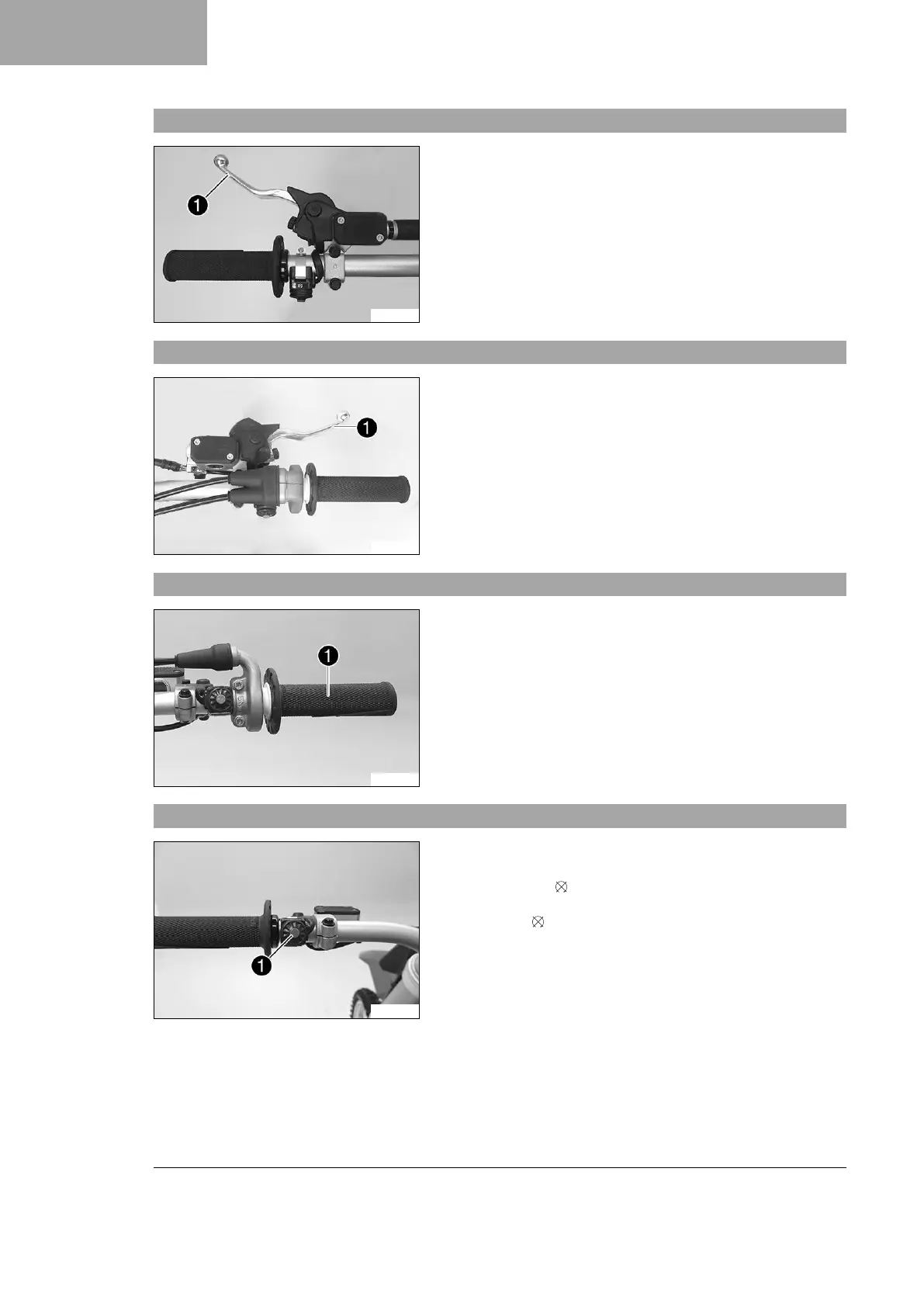

6.1 Clutch lever
A00795-10
The clutch lever
1
is fitted on the left side of the handlebar.
The clutch is hydraulically operated and self-adjusting.
6.2 Hand brake lever
A00798-10
Hand brake lever
1
is fitted on the right side of the handlebar.
The front brake is engaged using the hand brake lever.
6.3 Throttle grip
A00759-10
The throttle grip
1
is fitted on the right side of the handlebar.
6.4 Stop button
A00796-10
The stop button
1
is fitted on the left side of the handlebar.
Possible states
• The stop button is in the basic position – In this position, the
ignition circuit is closed and the engine can be started.
• Stop button pressed – In this position, the ignition circuit is inter-
rupted, a running engine stops, and a non-running engine will not
start.
