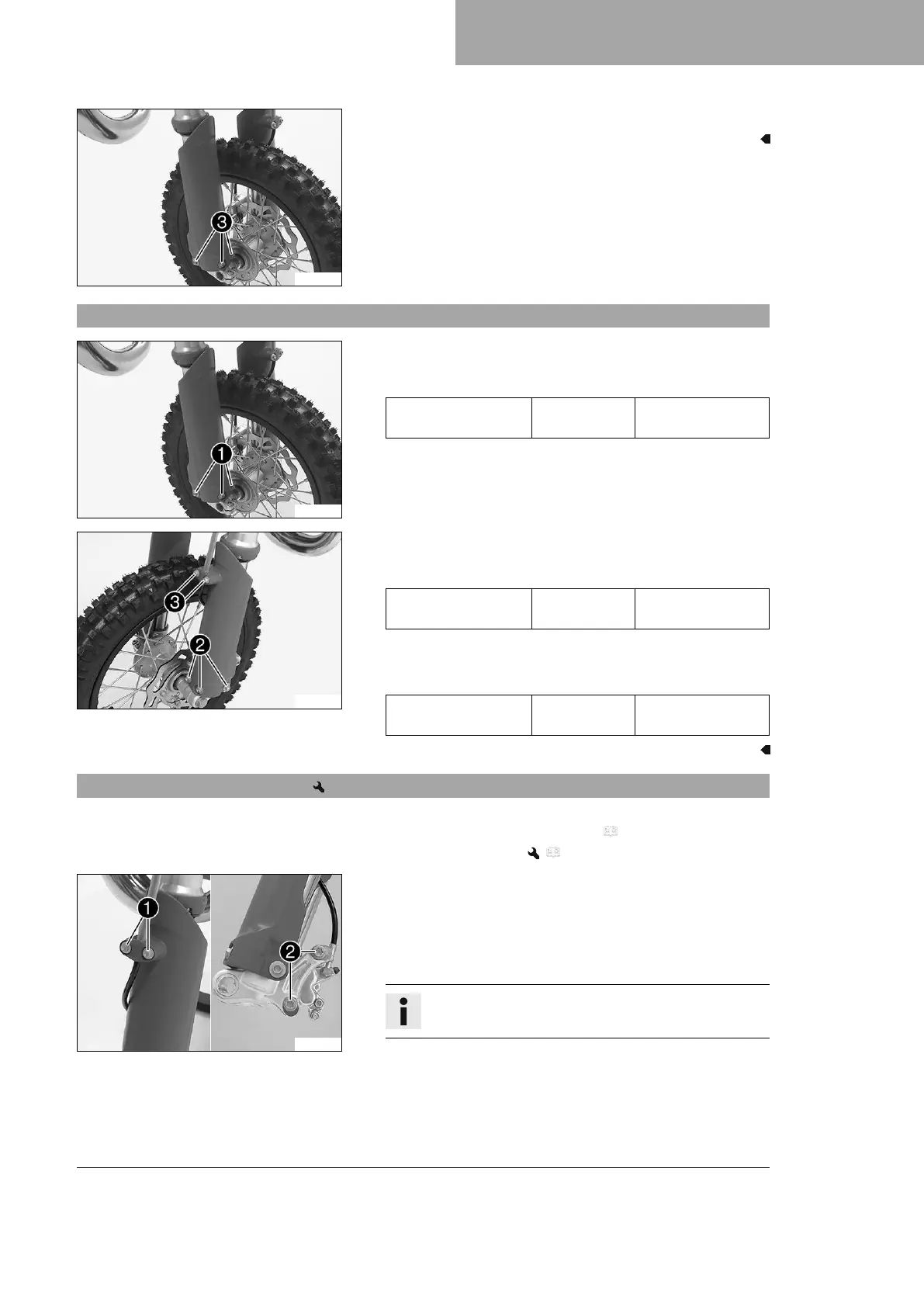

SERVICE WORK ON THE CHASSIS 11
39
F02977-10
–
Remove screws
3
on the right fork leg. Take off the fork protector.
11.6 Installing the fork protector
F02977-11
– Position fork protector on the right fork leg. Mount and tighten
screws
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
F02976-11
– Position fork protector on left fork leg. Mount and tighten
screws
2
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
– Position the brake line and the clamp. Mount and tighten
screws
3
.
Guideline
Screw, brake line
bracket
EJOT 1.7 Nm (1.25 lbf ft)
11.7 Removing the fork legs
Preparatory work
–
Raise the motorcycle with a lift stand. ( p. 37)
–
Remove the front wheel. ( p. 75)
F03020-10
Main work
–
Remove screws
1
and take off the clamp.
–
Remove screws
2
and take off the brake caliper.
– Allow the brake caliper and the brake line to hang loosely to the
side.
Info
Do not kink the brake line.
