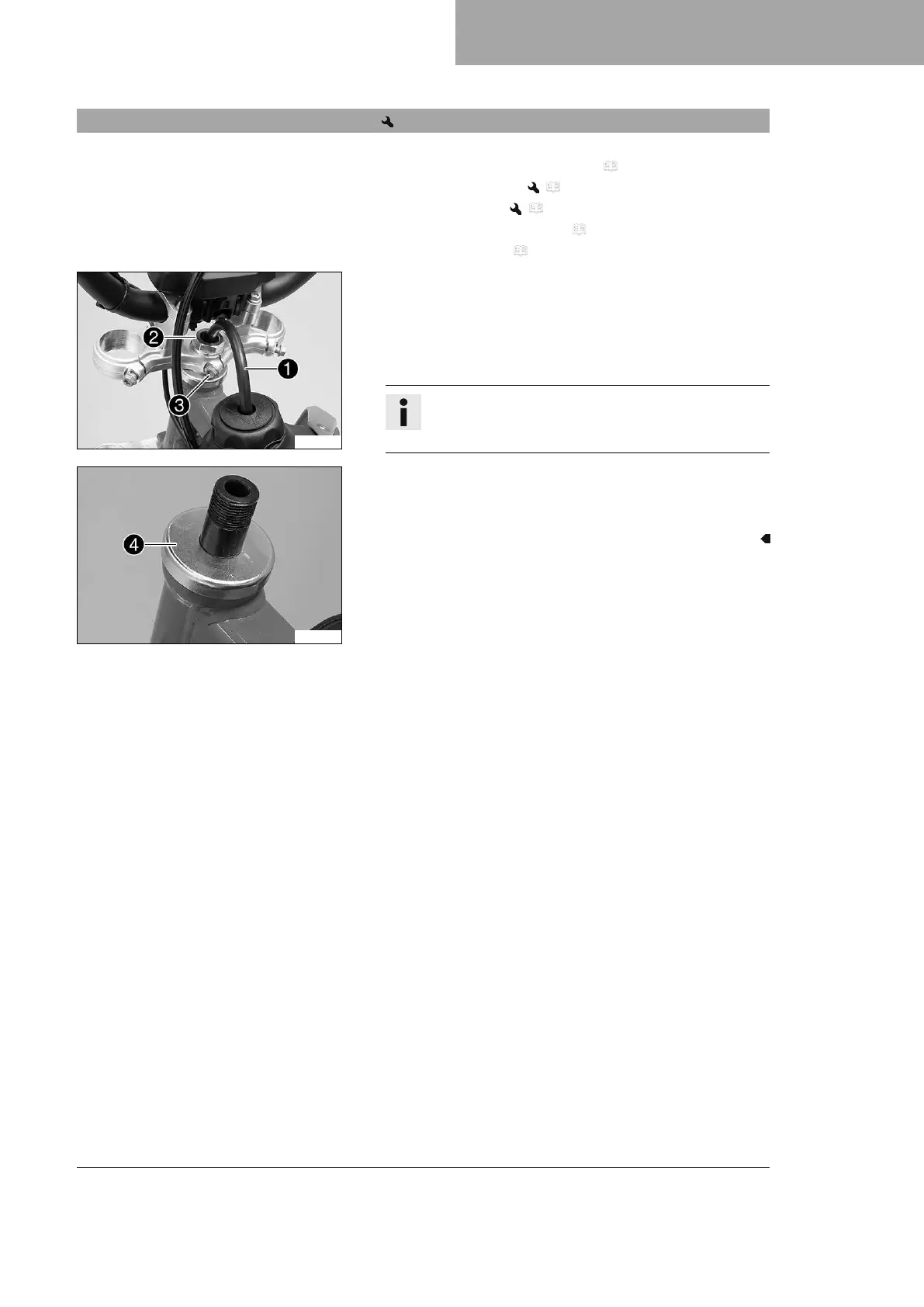

11.9 Removing the lower triple clamp
Preparatory work
–
Raise the motorcycle with a lift stand. ( p. 37)
–
Remove the front wheel. ( p. 75)
–
Remove the fork legs. ( p. 39)
–
Remove the start number plate. ( p. 47)
–
Remove front fender. ( p. 48)
F03025-10
Main work
–
Pull fuel tank breather
1
out of the steering stem.
–
Remove nut
2
.
–
Release screw
3
, take off the upper triple clamp with the handle-
bar and set aside.
Info
Cover the components to protect them against damage.
Do not kink the cables and lines.
F03026-10
–
Remove protective ring
4
.
– Remove the lower triple clamp with the steering stem.
– Remove the upper steering head bearing.
