SERVICE WORK ON THE CHASSIS 11
49

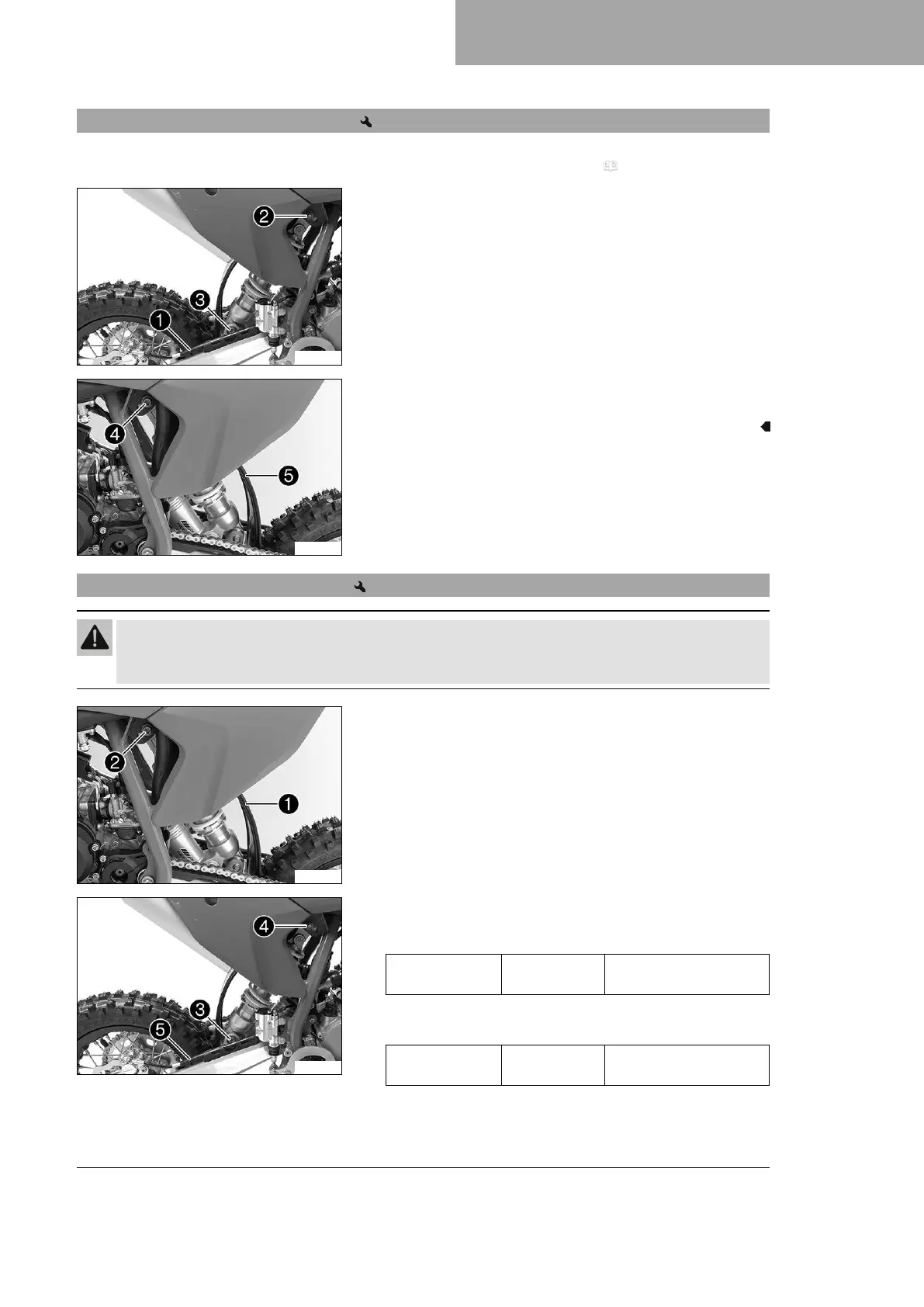

11.20 Removing the shock absorber
Preparatory work
–
Raise the motorcycle with a lift stand. ( p. 37)
F02985-10
Main work
–
Pull brake line
1
out of the holder.
–
Remove nut
2
.
–
Remove screw
3
and lower the link fork carefully.
F02986-10
–
Remove screw
4
, push splash protector
5
to the side, and
remove the shock absorber.
11.21 Installing the shock absorber
Warning
Danger of accidents Modifications to the suspension setting may seriously alter the handling characteristic.
– Ride slowly to start with after making adjustments to get the feel of the new handling characteristic.
F02986-11
Main work
–
Push splash protector
1
to the side.
–
Position the shock absorber with screw
2
, depending on the
desired seating height.
F02985-11
– Raise the link fork, mount and tighten the shock absorber with
screw
3
.
Guideline
Screw, bottom
shock absorber
M10 45 Nm (33.2 lbf ft)
Loctite
®
243™
–
Mount nut
4
and tighten the fitting.
Guideline
Screw, top shock
absorber
M10 45 Nm (33.2 lbf ft)
Loctite
®
243™
–
Attach brake line
5
to the holder.
