11 SERVICE WORK ON THE CHASSIS
50
Finishing work
–
Remove the motorcycle from the lift stand. ( p. 37)

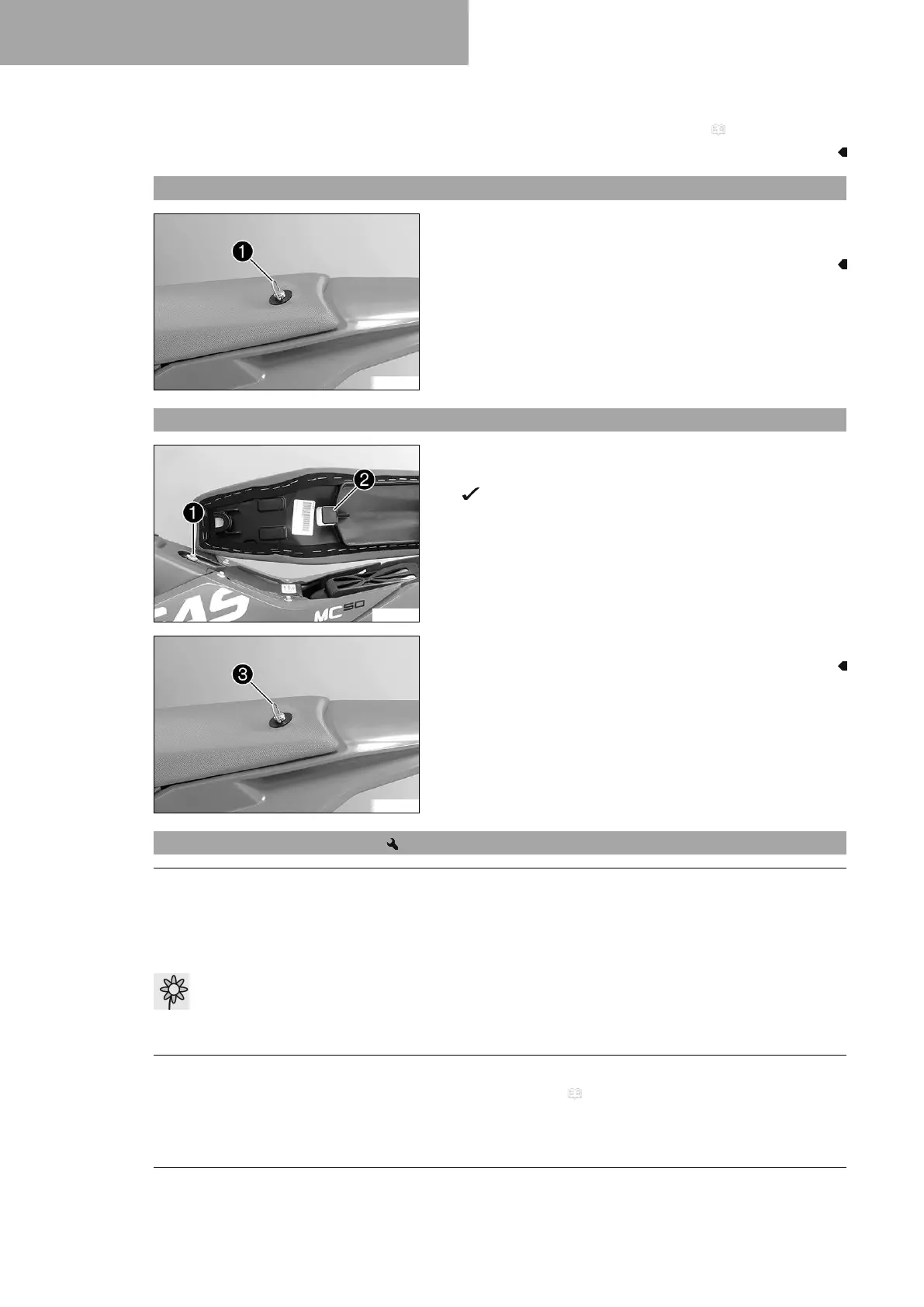

11.22 Removing the seat
F02987-10
–
Open quick release
1
and raise the rear of the seat.
– Pull back the seat and remove it.
11.23 Mounting the seat
F02988-10
–
Hook seat onto screw
1
and lower the seat at the rear and push it
forward.
Holding lug
2
hooks into the fuel tank.
F02987-11
–
Close quick release
3
.
11.24 Removing the air filter
Note
Engine damage Unfiltered intake air has a negative effect on the service life of the engine.
Dust and dirt will enter the engine without an air filter.
– Only operate the vehicle if it is equipped with an air filter.
Note
Environmental hazard Hazardous substances cause environmental damage.
– Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with the appli-
cable regulations.
Preparatory work
–
Remove the seat. ( p. 50)
