BRAKE SYSTEM 12
69

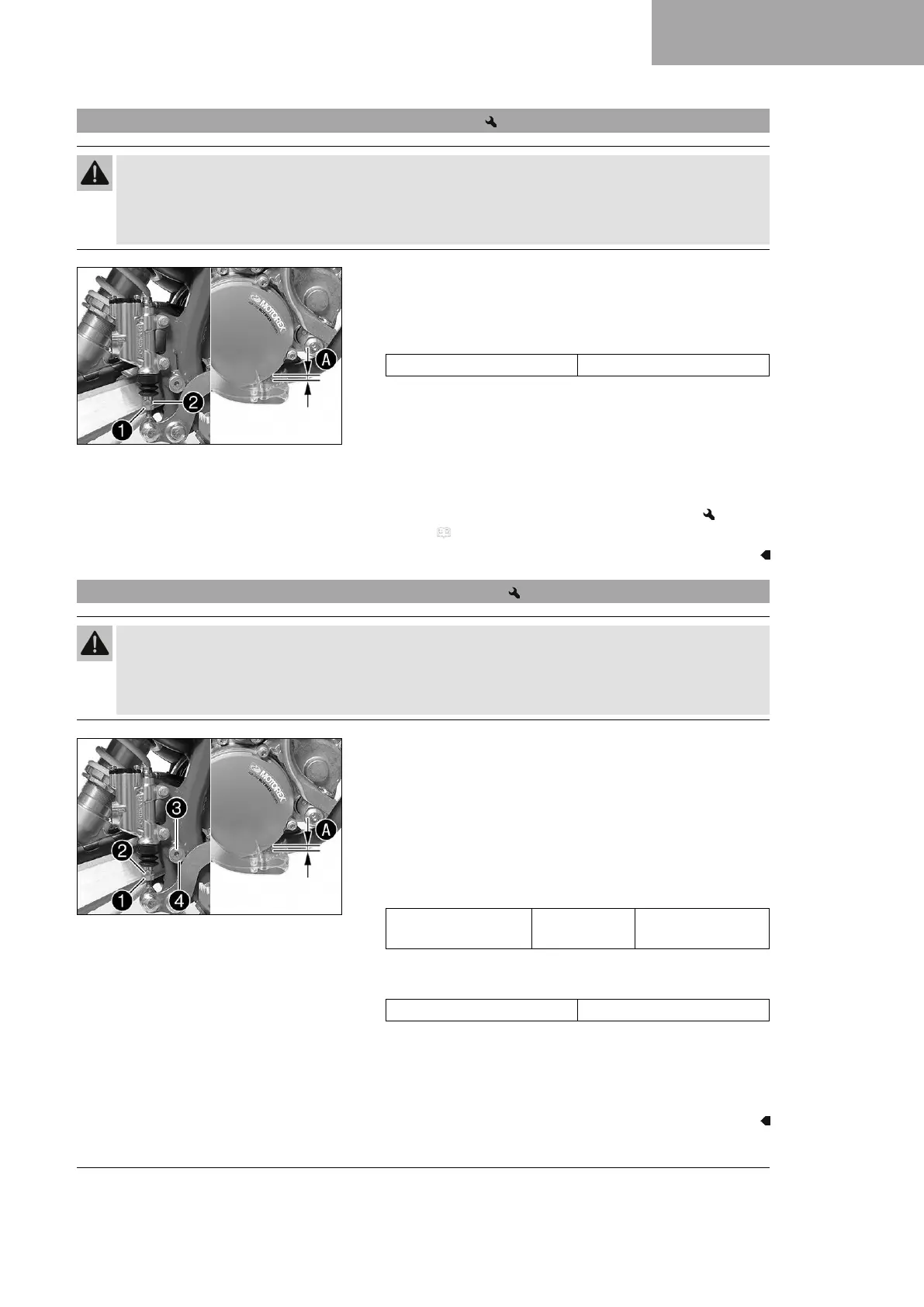

12.10 Adjusting the free travel of the foot brake lever
Warning
Danger of accidents The brake system fails in the event of overheating.
If there is no free travel on the foot brake lever, pressure builds up in the brake system on the rear brake.
– Set the free travel on the foot brake lever in accordance with the specification.
F03003-10
– Detach the foot brake lever spring.
–
Loosen nut
1
.
–
Turn push rod
2
accordingly until you have free travel
A
.
Guideline
Free travel of foot brake lever 3 … 5 mm (0.12 … 0.2 in)
–
Hold push rod
2
and tighten nut
1
.
– Attach the foot brake lever spring.
– Check whether the basic position of the foot brake lever is suitable
for the rider.
» When the basic position of the foot brake lever needs to be
adjusted:
– Adjust the basic position of the foot brake lever.
( p. 69)
12.11 Adjusting the basic position of the foot brake lever
Warning
Danger of accidents The brake system fails in the event of overheating.
If there is no free travel on the foot brake lever, pressure builds up in the brake system on the rear brake.
– Set the free travel on the foot brake lever in accordance with the specification.
F03003-11
– Detach the foot brake lever spring.
–
Loosen nut
1
.
–
Turn back push rod
2
until free travel is at a maximum.
– For an individual adjustment of the basic position of the foot brake
lever, loosen the screw
3
and turn the eccentric brake lever
stop
4
accordingly.
–
Tighten screw
3
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
–
Turn push rod
2
accordingly until you have free travel
A
.
Guideline
Free travel of foot brake lever 3 … 5 mm (0.12 … 0.2 in)
–
Hold push rod
2
and tighten nut
1
.
– Attach the foot brake lever spring.
– Check whether the basic position of the foot brake lever is suitable
for the rider.
