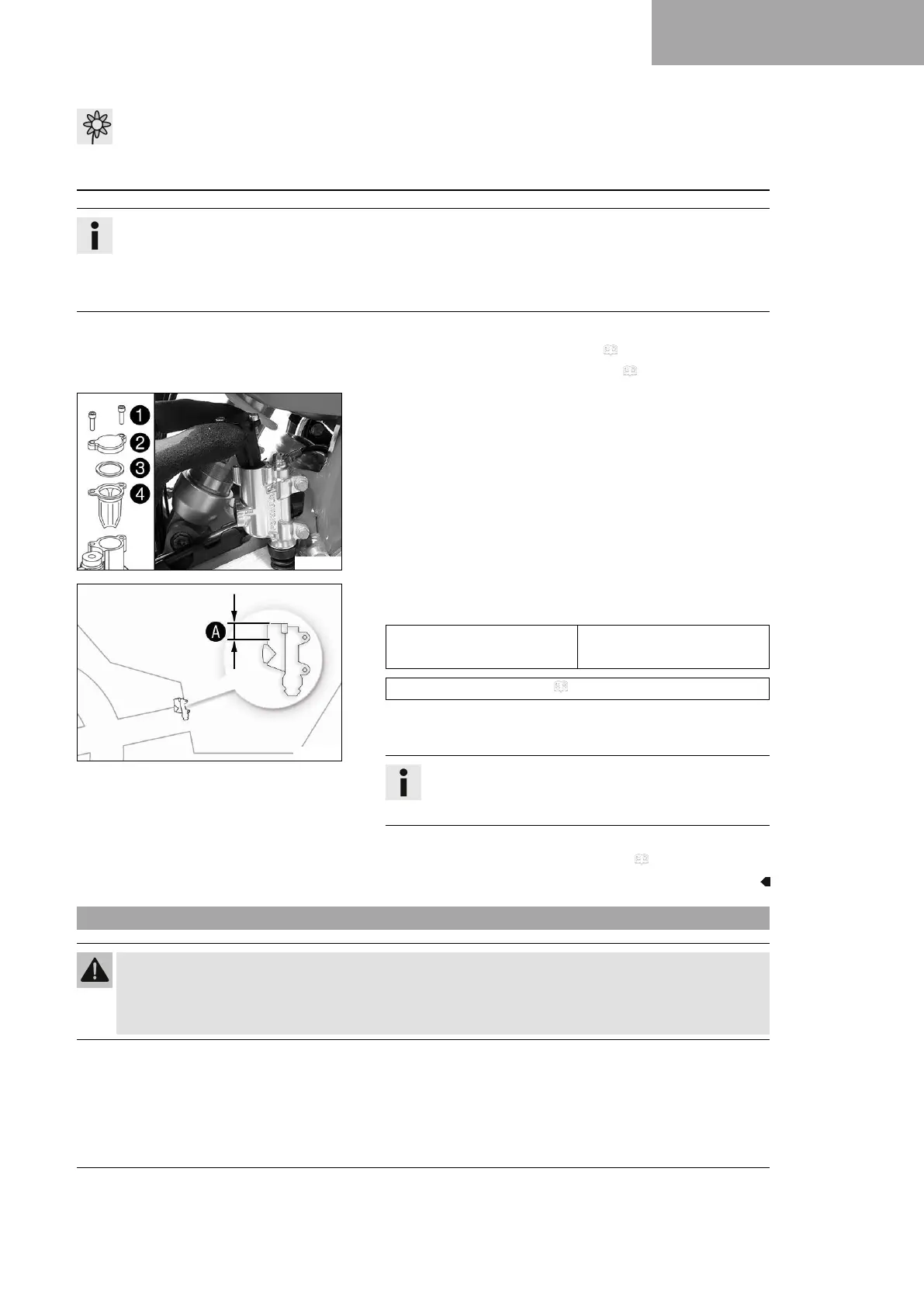

BRAKE SYSTEM 12
71
Note
Environmental hazard Hazardous substances cause environmental damage.
– Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with the appli-
cable regulations.
Info
Never use DOT 5 brake fluid. It is silicone-based and purple in color. Oil seals and brake lines are not designed for
DOT 5 brake fluid.
Avoid contact between brake fluid and painted parts. Brake fluid attacks paint.
Only use clean brake fluid from a sealed container.
Preparatory work
–
Raise the motorcycle with a lift stand. ( p. 37)
–
Check the brake linings of the rear brake. ( p. 71)
F03004-10
Main work
–
Remove screws
1
.
–
Take off cover
2
with washer
3
and membrane
4
.
H01654-10
–
Add brake fluid up to level
A
.
Guideline
Level
A
(brake fluid level
below reservoir rim)
10 mm (0.39 in)
Brake fluid DOT 4 / DOT 5.1 ( p. 108)
– Position the cover with the washer and membrane.
– Mount and tighten the screws.
Info
Clean up overflowed or spilled brake fluid immediately with
water.
Finishing work
–
Remove the motorcycle from the lift stand. ( p. 37)
12.14 Checking the brake linings of the rear brake
Warning
Danger of accidents Worn-out brake linings reduce the braking effect.
– Ensure that worn-out brake linings are replaced immediately. (Your authorized GASGAS Motorcycles workshop
will be glad to help.)
