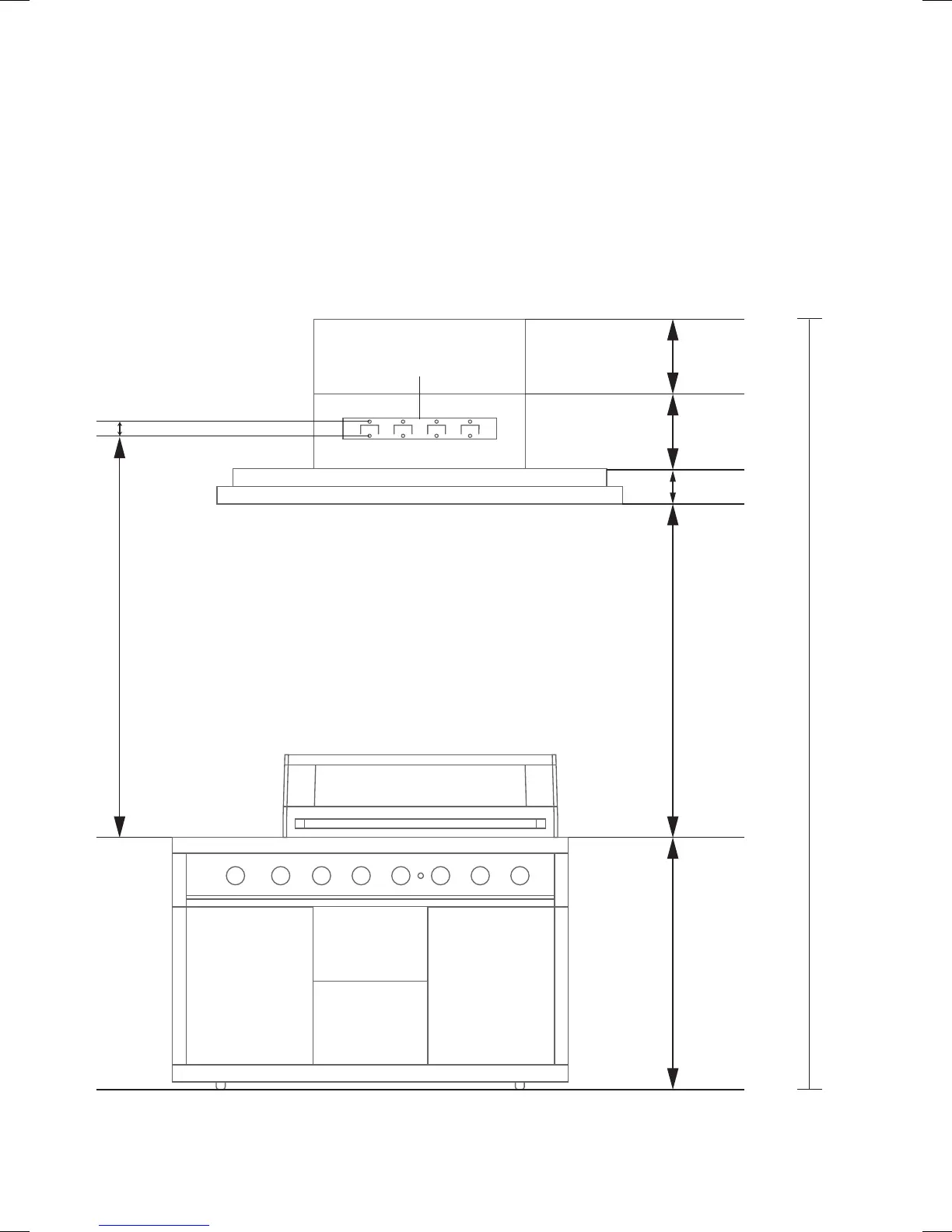

The ideal position of the Rangehood is as follows:
1. Height above cooking surface – 1200mm
2. Distance from cooking surface to Rangehood mounting bracket bottom screw hole:
GRHM Medium – Bracket is part of the rangehood frame - 1582mm
GRHL Large – 1562mm and top screw 1622mm
1562mm - Large Wall Mount Version Only
All Models - Wall & Ceiling Mount Version
2966mm Maximum
1200mm
About 900mm
Depending on
BBQ Model
395mm
MAX Fitted
76mm
395mm
MAX Fitted
Large Wall Mount Bracket
60mm
RANGEHOOD INSTALLATION
