GasTech R Series User Manual

Natural Gas Equipment Tecnologies

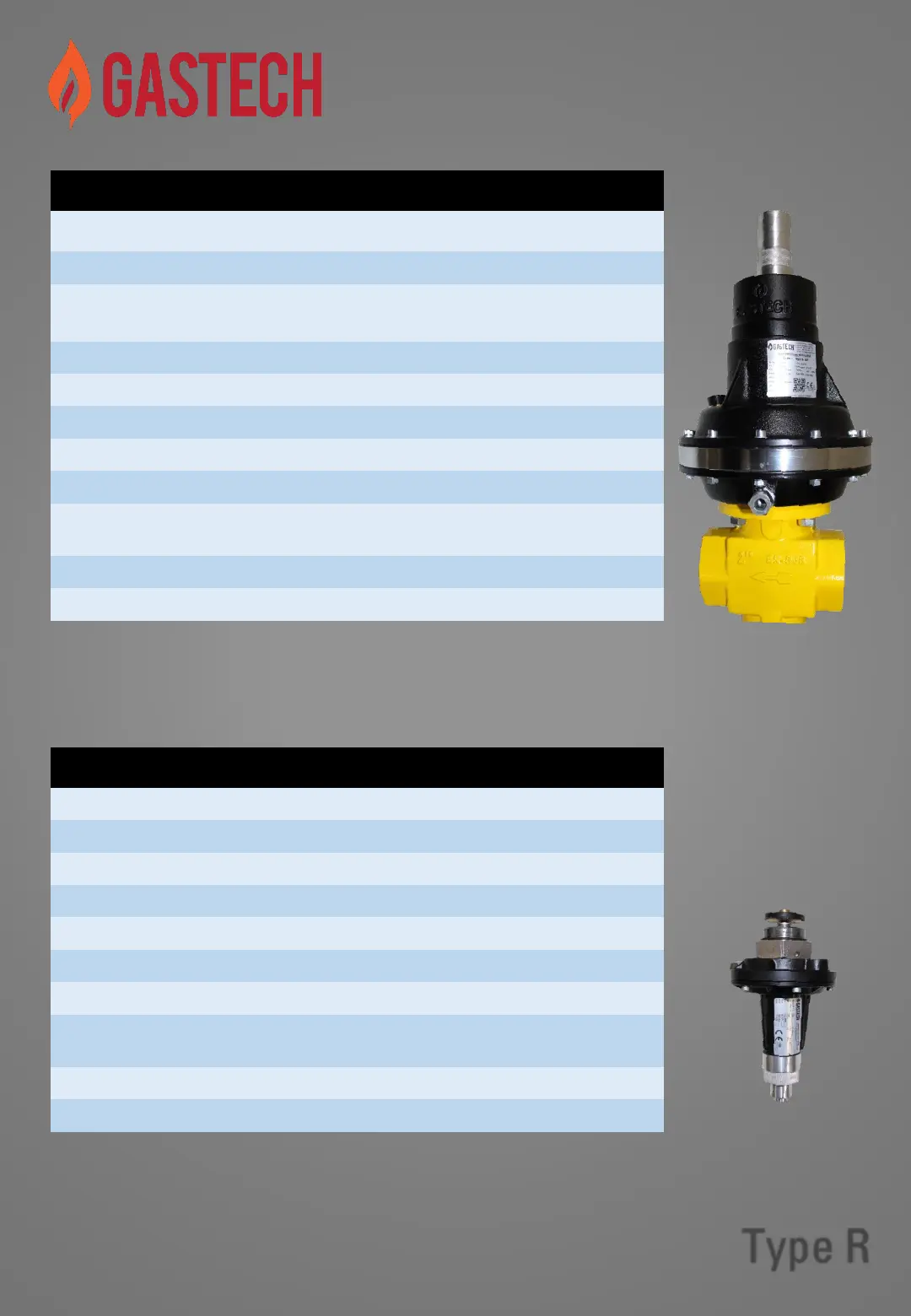

Type R
REGÜLATÖR
KARAKTERİSTİĞİ / CHARACTERISTIC
Body
, Actuator, Slum Shut
Cover
, Associated (PSD)
16 bar
Type
IS
Typ
e of Fluid Groups 1 and 2 according to PED 97/23/EC
Diameter 1” - 1”1/2 - 2” ISO 7/1
Inlet Pressure bPu 0.3 - 16 bar
Outlet Pressure Range Wd 20-4000 mbar
Minimum ΔP 170 mbar
Maksimum ΔP 16 bar
Metarial
Body EN-GJS 500 - Cover AlSi - Diaphragms and
Sealing Parts NBR, Orifice Brass
Operating Temparature -20°C / +60°C
Fail Mode Fail to Open
SSV
KARAKTERİSTİK / CHARACTERISTIC
Type
IS
Operarion
Class A
Response
Time < 2 s
Max. Pressure Set Range 35 – 4200mbar
Min. Pressure Set Range 10 – 2500mbar
Atm. Relief Connection 1/4’’ tapped
External Impuls Line Ø10mm pipe interior
Metarial
Cover AlSi - Diaphragms and Sealing Parts NBR,
Orifice Brass
Operating Temparature -20°C / +60°C
Internal Manual By-pass Cg 2
