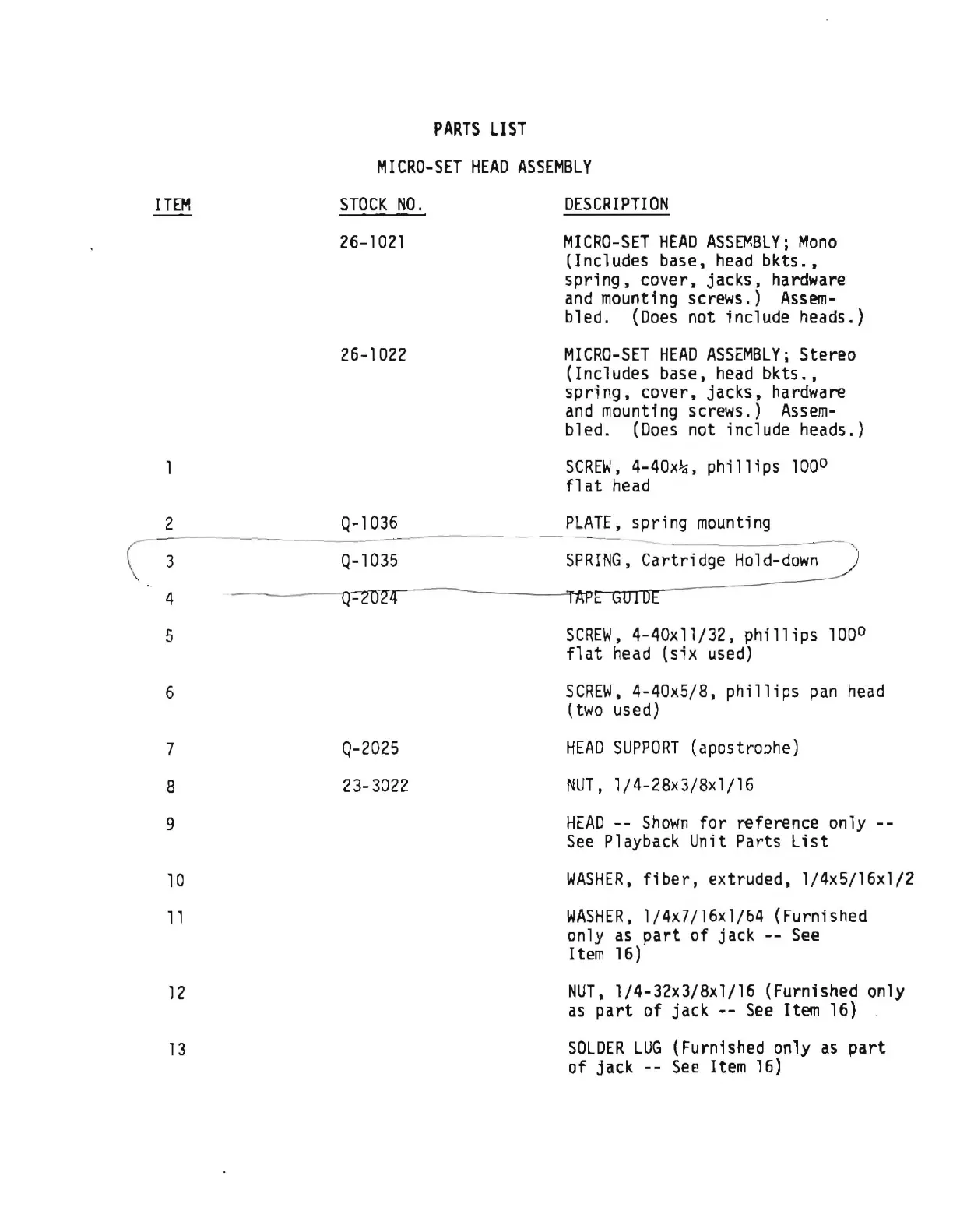

PARTS LIST
MICRO-SET HEAD ASSEMBLY
STOCK NO.
26-1021
26-1022
DESCRIPTION
MICRO-SET HEAD ASSEMBLY; Mono
(Includes base, head bkts .•
spring, cover. jacKs, hardware
and mounting screws.) Assem-
bled. (Does not include heads.)
MICRO-SET HEAD ASSEMBLYi Stereo
(Includes
base, head bkts.,
spring, cover. jacKs, hardware
and mounting screws.) Assem-
bled. (Does not include heads.)
SCREW, 4-40x~, phillips 100
0
flat head
q-1036 PLATE, spring mounting
\ 3 q-1035 SPRING ~ tr; dge Hal d-do ~ -'"
4
5
6
7
8
9
10
11
12
13
Q~
Q-2D25
23-3022
T
SCREW, 4-40xll/32, phillips 100
0
flat head (six used)
SCREW. 4-40x5/8, phillips pan head
(two used)
HEAD SUPPORT (apostrophe)
NUT. 1/4-28x3/8x1/16
HEAD -- Shown for reference only
See Playback Unit Parts List
WASHER. fiber, extruded. 1/4xS/16xl/2
WASHER, 1/4x7/16xl/64 (Furnished
only
as part of jack -- See
Item 16)
NUT, 1/4-32x3/8x1/16 (Furnished only
as part of jack -- See Item 16) ,
SOLDER LUG (Furnished only as part
of jack -- See Item 16)
