The Gator EFX Hard Fold Tonneau Cover is a truck bed cover designed to protect cargo from the elements and secure it from theft. This hard-folding cover offers a blend of durability, ease of use, and a sleek appearance, making it a practical accessory for truck owners. The cover is fully assembled upon arrival, simplifying the initial setup process.

Function Description

The primary function of the Gator EFX Hard Fold Tonneau Cover is to cover and protect the truck bed. It consists of multiple panels that fold over each other, allowing for partial or full access to the truck bed as needed. When closed, the cover creates a barrier against rain, snow, dust, and other environmental factors, keeping the cargo dry and clean. The hard panels also provide a significant level of security, deterring unauthorized access to the truck bed contents.

The design incorporates a robust latching system that engages with the side rails, ensuring the cover remains securely closed while the vehicle is in motion or parked. For situations requiring full bed access, the cover can be folded up towards the cab and secured in an open position, preventing it from obstructing the driver's view or shifting during transport. This versatility makes it suitable for various hauling needs, from everyday commuting to transporting larger items that require an open bed.

Drain tubes are integrated into the design to manage water runoff. These tubes attach to fittings at the front of the bed rail and are positioned to divert water out of the truck bed, preventing accumulation and potential damage to cargo. This thoughtful feature ensures that the truck bed remains as dry as possible, even during heavy rain.

Usage Features

The Gator EFX Hard Fold Tonneau Cover is designed for straightforward installation and operation. The installation process begins by attaching the left and right mounting rails to the truck bed. These rails are positioned flush to the bulkhead, with the drain tube fitting oriented towards the cab. The top edge of the mounting rail should be flush to 1/8 inch above the top edge of the truck bed rail. Clamps are then used to secure the rails to the bed, with three clamps per side. It is recommended to mount the center clamp first, but not tighten it completely, to allow for adjustment as the outer clamps are attached. Once the rails are in place, the clamps are tightened using a 1/2-inch socket. A bulkhead seal is installed on the top of the front rail of the truck bed and cut to length to further enhance water resistance.

After the rails are secured, the tonneau cover is set onto the mounting rails, ensuring the buckles are positioned towards the front. A critical step is to ensure the front flap of the cover is over the bulkhead, not placed underneath it, to maintain proper sealing and function. Four retainer clamps are then assembled and slid into the track on the underside of the tonneau. These clamps are initially positioned without tightening, allowing for final adjustments.

The cover is then carefully unfolded and positioned so it is centered side-to-side and front-to-back on the truck bed. A test of the rear latching assembly is performed to ensure smooth operation, which indicates correct positioning. The latches on both sides should engage properly with the cover mounting rail. If the truck has a tailgate protector, it might be necessary to slightly raise the rear of the side mounting rails for proper latch engagement.

Once the cover is correctly located, it is folded to the open position. The release cables on the rear panel are pulled to release it from the side rail, and the cover is gently folded to avoid disturbing its position. In the open position, the clamp engagement to the side rail is double-checked and tightened. The cover is tested again for proper operation, and adjustments are made as needed before tightening the star knobs. Finally, the drain tubes are attached to the fittings at the front of the bed rail and routed to divert water out of the truck bed, either behind a bed liner, through an existing hole, or by drilling a 5/8-inch hole in the bulkhead. If drilling, metal shavings should be cleaned up.

To open the cover, the tailgate is lowered, and the cable is pulled while simultaneously lifting the panel up and towards the cab. To secure the cover in the open position, the strap is released from its stowed position by squeezing the tabs. The buckle is then attached to the bulkhead, and the strap is pulled to take up slack and secure the cover. This process is repeated for the opposite side.

Maintenance Features

Maintaining the Gator EFX Hard Fold Tonneau Cover is straightforward, focusing on periodic cleaning and ensuring the security of its components. The panels of the cover require only periodic cleaning with mild car wash soap. It is crucial to avoid abrasive type cleaners, as these can dull the finish of the cover. Truck owners should also be mindful of the chemicals they use, as some substances like insect repellents, oils, solvents, and lubricants can potentially damage the rubber hinges and seals, which could void the warranty. Always read the ingredients of any cleaning product to ensure it is safe for use with rubber components.

A key maintenance aspect is regularly checking the clamps for tightness. The manual explicitly warns that clamps must be checked periodically for tightness, as failure to do so could result in damage to the user or their property. While a torque wrench is not strictly necessary for tightening the clamp assembly, if preferred, a torque of approximately 120 inch-pounds is recommended. This attention to clamp tightness ensures the cover remains securely attached to the truck bed, preventing movement and potential damage during travel.

The cover is designed to be durable, with its structure, hinges, seals, and hardware warranted against defects in material and workmanship for three years from the retail date of purchase. This warranty underscores the expectation of longevity with proper care. However, it's important to note that the warranty does not cover failures due to neglect, improper installation (including modifications), alterations, equipment additions, abuse, accidents, weather-related damage, exposure to chemicals labeled "safe for rubber," or normal wear from lack of maintenance.

In summary, the Gator EFX Hard Fold Tonneau Cover is a user-friendly and protective accessory for truck beds. Its design emphasizes ease of installation and operation, with clear instructions for securing cargo and managing water runoff. Routine maintenance primarily involves simple cleaning and periodic checks of clamp tightness, ensuring the cover remains functional and secure over time.

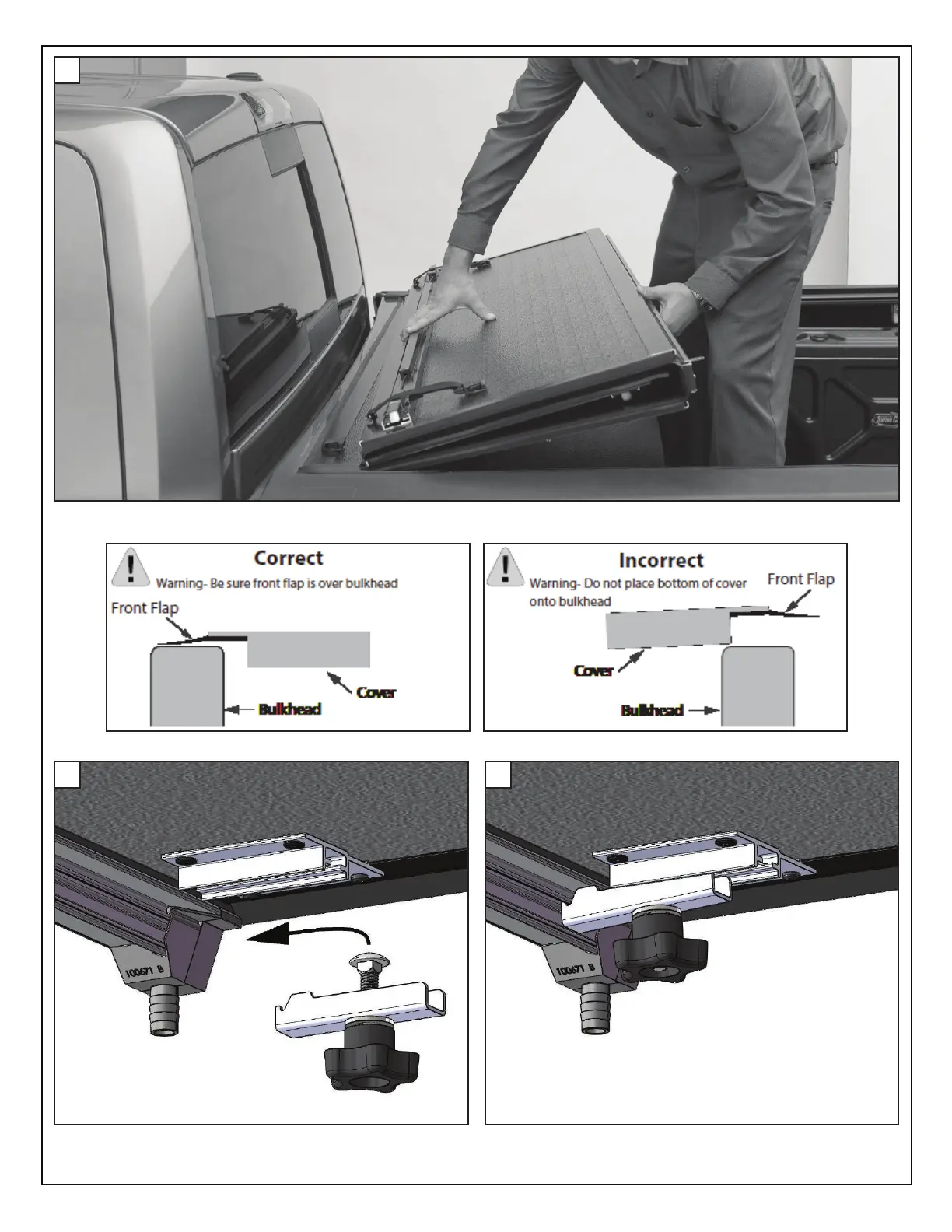

Gator EFX Hard Fold - Cover Placement and Clamp Assembly
