12 13
14

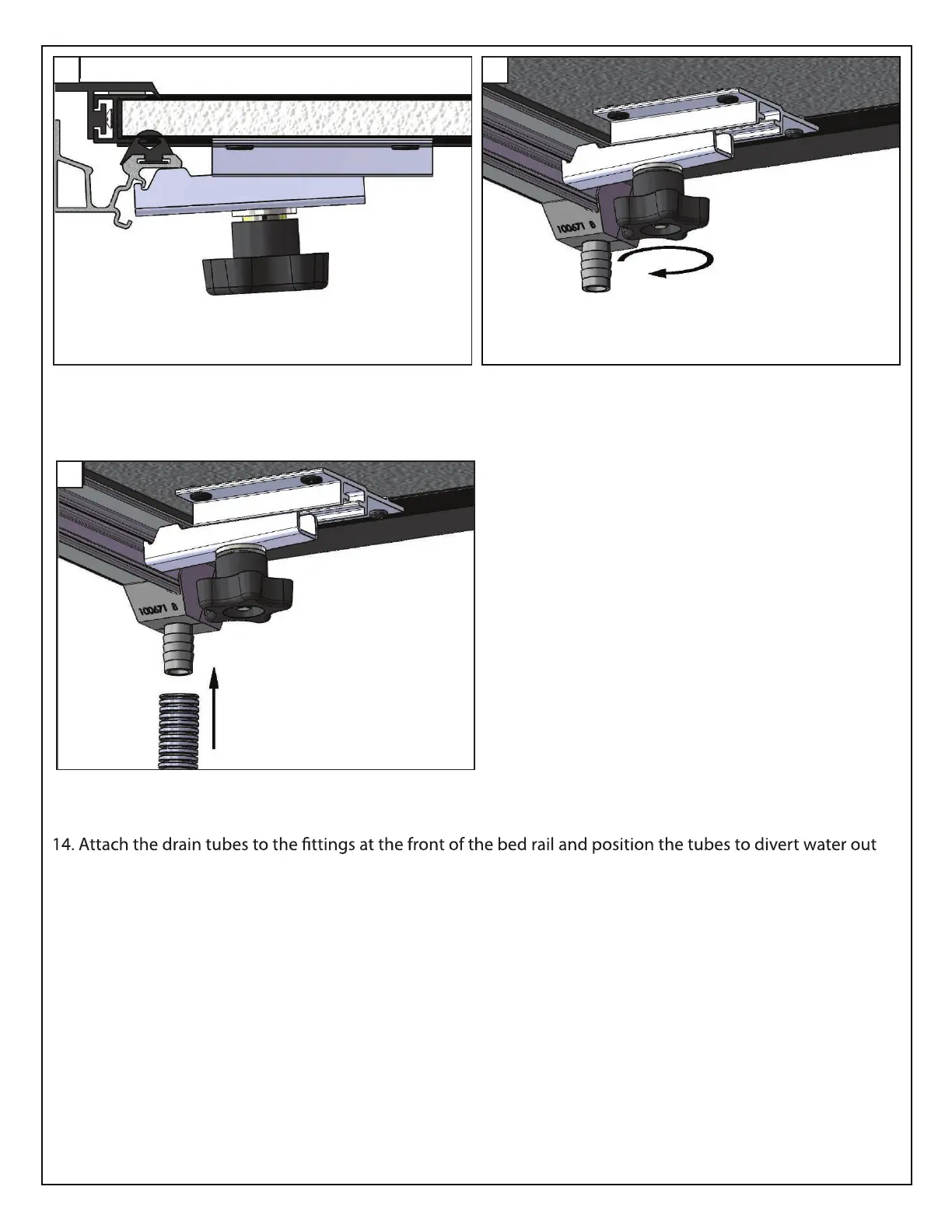

12 & 13. Once in the open position double check the clamp engagement to the side rail and tighten. Test the
cover again for proper operation, adjust as needed, then tighten the star knobs.
of the truck bed. This can be done by placing the tube behind a bed liner, through an existing hole in the bed,
or by drilling a 5/8” hole in the bulkhead.
Note: If you choose to place the tube behind your bedliner, be sure your drain holes in the bed are not clogged.
Note: If you choose to drill holes, be sure to clean up the metal shavings.
Page 6 of 8
