GE 15 Owner's Manual And Installation Instructions

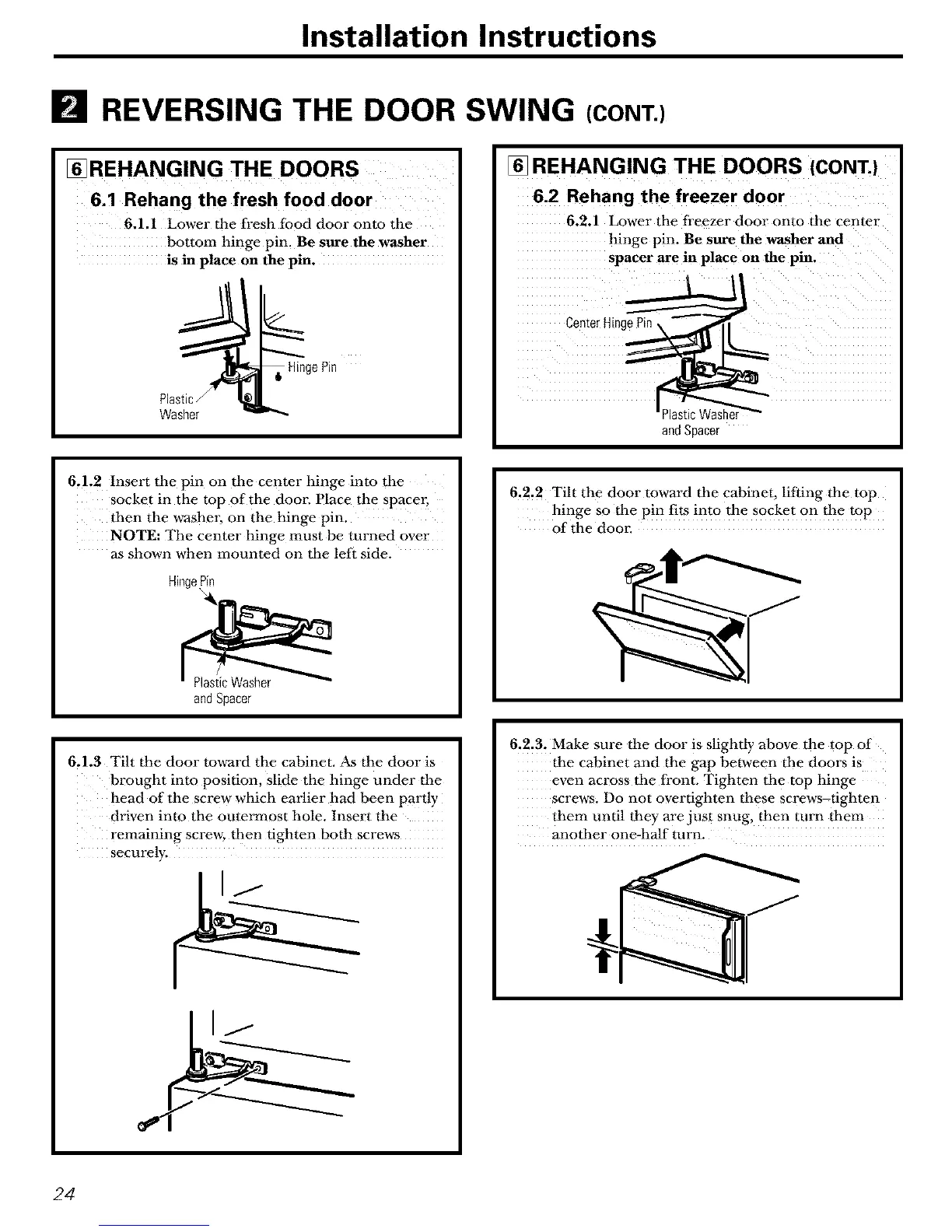

Installation Instructions
[] REVERSING THE DOOR SWING (CONT.)
[]REHANGING THE DOORS
6.1 Rehang the fresh food door
6,1.1 Lower the fresh fbod door cmto the
bottom hinge pin. Be sure the washer
is in place on the pin.
HingePin
Washer
6 REHANGING THE DOORS (CONT.)
6.2 Rehang the freezer door
6.2.1 Lower the fl'eezer door onto the center
hinge pin. Be sure the washer and
spacer are m place on the pin.
L/
CenterHingePin
asticWashe
andSpacer
6,1.2 Insert the pin on the center hinge into the
socket in the top of the doo_: Place the spaces,
then the washes, on the hinge pin.
NOTE: The center hinge must be turned over
as shown when mounted on the left side.
HingePin
andSpacer
6,2.2 Tilt the door toward the cabinet, lifting the top
hinge sothe pin ills into the socket on the top
of the doo_:
6.1.3 Tilt the door toward the cabinet. As the door is
brought into position, slide the hinge under the
head of the screw which earlier had been partly
driven into the outermost hole. Insert the
remaining screw, then tighten both screws
securely.
/
6,2.3. Make sure the door is slightly above the top of
the cabinet and the gap between the doors is
even across the fl'ont. Tighten the top hinge
screws. Do not overtighten these screws-tighte n
them until they are just snug, then turn them
another one-half turn.
