REVERSING THE DOOR SWING (Cont.)
INSTALLATION INSTRUCTIONS
6

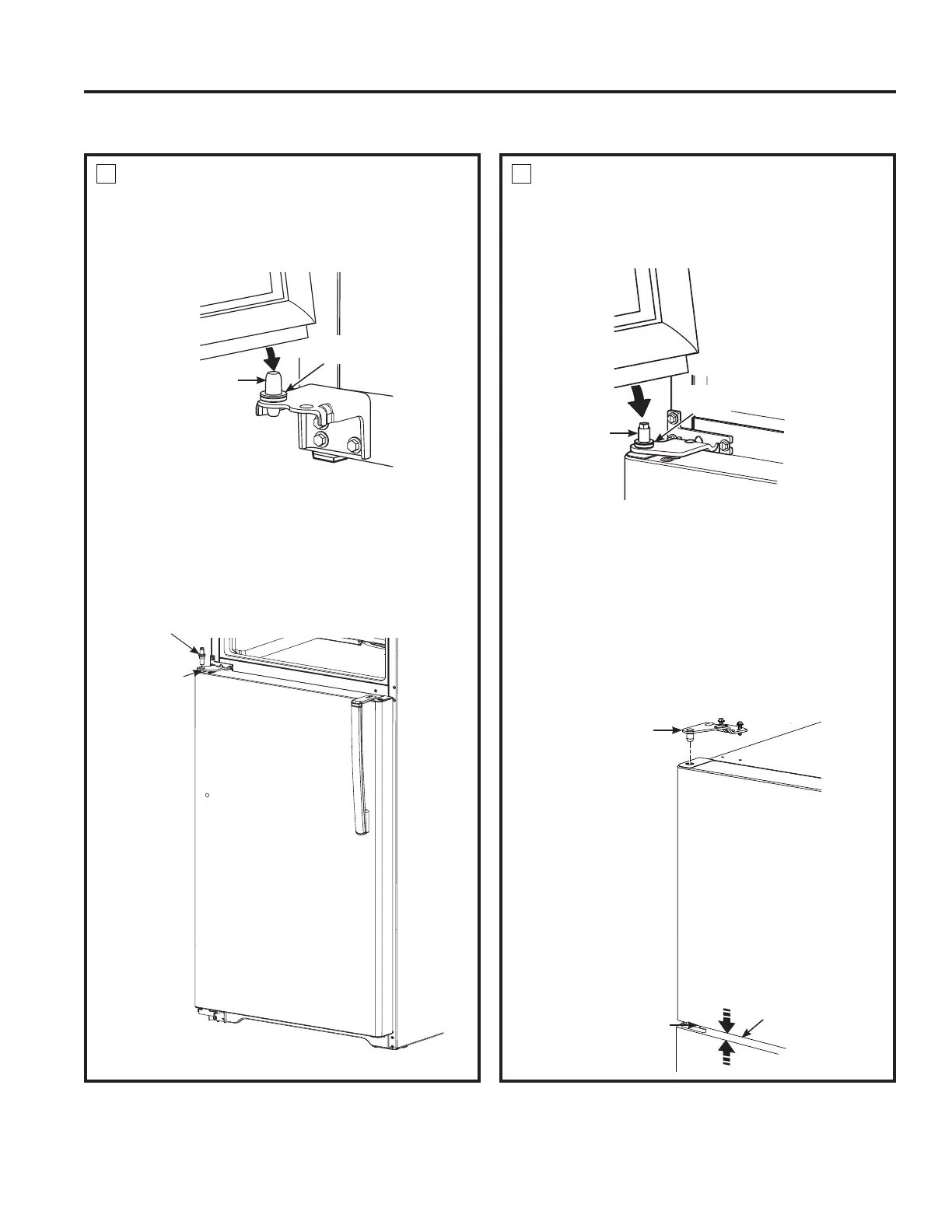

RE-HANGING THE DOORS
6.1 Re-hang the fresh food door
6.1.1 Lower the fresh food door onto the
bottom hinge pin. Be sure the washer is
in place on the pin.
6.1.2 Tilt the door towards the cabinet. As
the door is brought into position, align
the socket in the door with the hole
in the center hinge. Place the center
hinge pin into the hole in the center
hinge and tighten. Make sure the
washer is on the top of the hinge pin.
6
RE-HANGING THE DOORS (CO
6.1 Re-hang the fresh food door
 /RZHUWKHIUHH]HUGRRURQWRWKHFHQWHU
hinge pin. Be sure the washer is in
place on the pin.
6.2.2 Tilt the door towards the cabinet, lifting
the top hinge so the pin fits into the
socket on the top of the door.
6.2.3 Make sure the door is slightly above
the top of the cabinet and the gap
between the doors is even across the
IURQW7LJKWHQWKHWRSKLQJHVFUHZV'R
not over-tighten these screws. Tighten
them until they are just snug, and then
turn them another one-half turn.
Plastic
Washer
Hinge
Pin
Hinge
Pin with
Washer
Center
Hinge
Hinge
Pin
Plastic
Washer
Top
Hinge
Hinge
Gap
