ICE DISPENSER
(on some models)
12

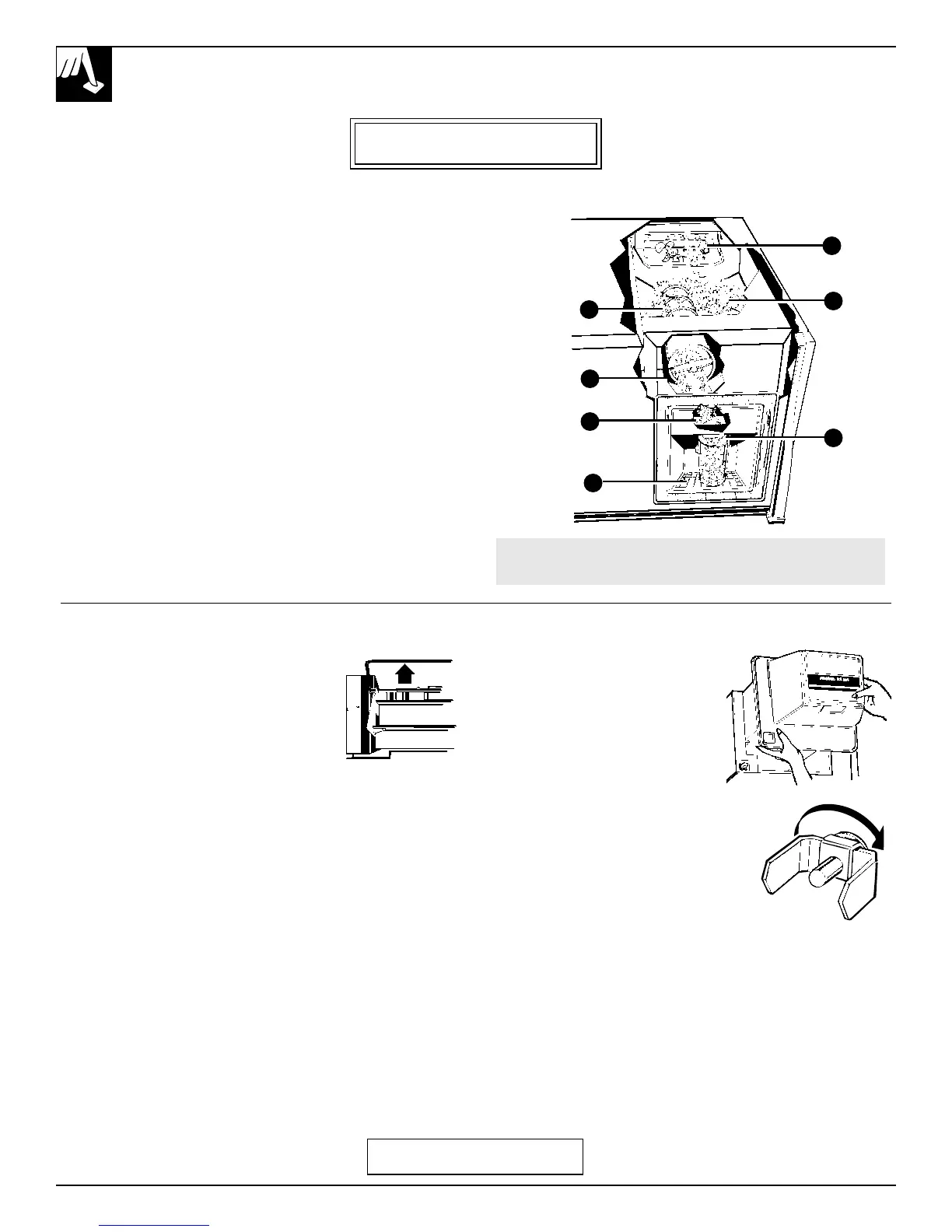

How the Ice Dispenser Works
When the selector switch is set at ICE CUBES…
(1)The automatic icemaker fills the
(2)ice storage bin.
(3)Pushing on the ice cradle activates the
(4)motor-powered auger which moves the ice
cubes into glass through the
(5)chute.
When the selector switch is moved to CRUSHED
ICE, a flipper directs the cubes through the
(6)crusher and crushed ice falls through the chute.
Spills are caught in the
(7)spill shelf.
CAUTION:
Never put fingers or any other objects into the ice
crusher discharge opening.
1
2
3
7
5
6
4
Before Using Your Icemaker and Dispenser Once Your Icemaker is in Operation
If your refrigerator is operated before the water
connection is made, remove the ice storage bin
and make sure the icemaker feeler arm is in the
STOP (up) position.
When the refrigerator has been connected
to the water supply, move the feeler arm to the
ON (down) position.
The icemaker will fill with water when it cools to
freezing. A newly-installed refrigerator may take
8 to 12 hours to begin making ice cubes.
When the water supply has been
connected to the icemaker, remove the
ice storage bin, move the icemaker feeler
arm to the ON (down) position, and
replace the bin.
To remove the ice storage bin, lift the
front of the bin and pull the bin straight
out while supporting it at front and rear.
To replace the ice storage bin: Slide it
back on the ice bin shelf. If the bin does
not go all the way back, remove it and rotate
the drive mechanism 1/4 turn. Then push the
bin back again.
Rotate
Drive
Mechanism
Features vary by model
A newly-installed refrigerator may take
8 to 12 hours to begin making ice.
